Flange To Plate MIG / MAG Welding Tractor Automatic Welding Carriage Tractor
Product Details
| Material: | Aluminum Alloy | Power Supply: | AC220V |
|---|---|---|---|
| Product Name: | Automatic Flange To Plate MIG/MAG Welding Tractor | Service: | Excellent |
| Size: | 275*140*240 | Structure: | Compact |
| Warranty: | 1 Year | Weight: | Light |
| Welding Accuracy: | High | Welding Method: | Automatic |
| Welding Range: | Flange To Plate Welding | Welding Speed: | 100∼1000mm/min |
| Highlight |
Flange to Plate Welding Tractor,Aluminum Alloy Carriage,Automatic MIG MAG System |
||
Product Description

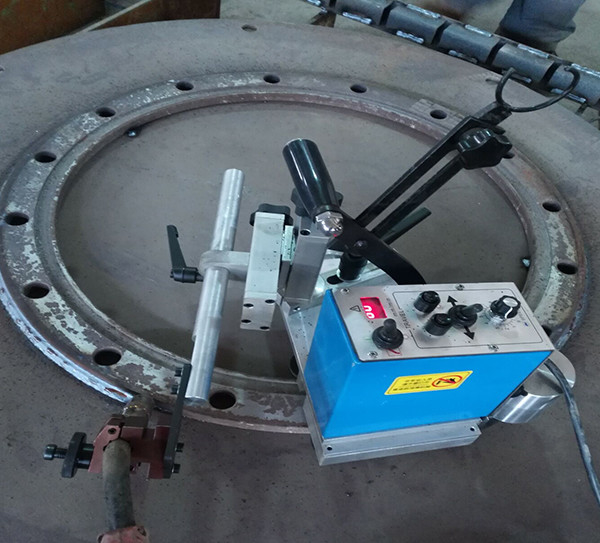

Automatic flange to plate MIG/MAG welding tractor automatic welding carriage
Flat flange automatic welding trolleys are widely used in shipbuilding, bridge construction, locomotive manufacturing, steel structures and petrochemical industries. Their main advantages include:
1. Reduce labor intensity and improve the working environment
2. Improve work efficiency by 1.5 times that of manual welding
3. Eliminate weld defects caused by human factors: the defect rate of manual operation is generally around 20%, while automatic welding trolleys maintain consistent weld quality, so their comprehensive benefits are nearly 200% higher than manual welding
4. High degree of automation ensures stable welding quality
5. No need for highly skilled technical workers
Features:
1. This automatic welding trolley is suitable for circumferential fillet welding of horizontal flange plates.
2. Small size and light weight, easy to move and install; even unskilled workers can perform welding.
Specification
| Type | Contents | Note | |
| Trolley | power | AC 220V | |
| Size | 275*140*240 | W×L×H | |
| Weight | 15 kg | ||
| Moving | double wheels | ||
| Moving speed | 100-1000 mm/min | ||
| Swing motor | DC24V 18RPM | option | |
|
welding gun |
up/down | 100 mm | |
| forward/back | 100 mm | ||
| angle | 360° | ||
| Moving angle | 0° | ||
| Control | Swing speed | 0-10RPM | |
| Swing angle | 0-±10° | ||
| Swing time | 0-2S | ||
| Center moving | 0-±8° | ||
| Moving Speed | 100-1000 mm/min | ||
Connection of the machine
Install
(1) Installation conditions:
1. The necessary tools for welding are the welding power supply and wire feeder device;
2. Welding power supply (AC 220V) for the travel and control of the trolley;
3. CO2 gas tank for welding;
4. Direct welding gun for CO2 automatic welding;
5. Basic tools for other necessary tasks;
(2) System connection method
1. Install the track, which must ensure that the welding direction of the trolley is parallel to the weld seam
2. Install the trolley and use the installation handle to clamp the track wheels of the trolley onto the track
3. Install welding wire on the wire feeder and pull it to the end of the welding gun
4. Connect the welding gun port to the wire feeder
5. Connect the control power cable to the 8P port on the control panel of the car
6. Connect the control power cable to AC 220
