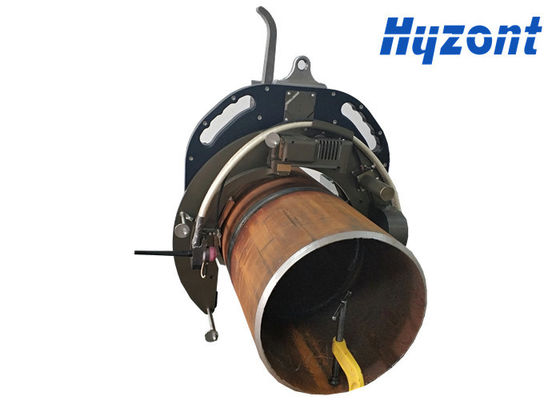

MAX315 A TIG 325mm Steel Pipe Welding Machine

MAX315 A TIG 325mm Steel Pipe Welding Machine
MAX315 A TIG 325mm Steel Pipe Welding Machine MAX315 A TIG 325mm Steel Pipe Welding Machine

Large Image :  MAX315 A TIG 325mm Steel Pipe Welding Machine

Product Details:
Place of Origin: China
Brand Name: Hyzont
Certification: CCC
Model Number: OTH-50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wood Case
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 100Set a Month
Contact Now

MAX315 A TIG 325mm Steel Pipe Welding Machine

Description
Name: Orbital Welding Machine Model: OTH-50
Application: Pipe TIG/GTAW Automatic Welding Input Power: 380V-440V
Out Put: MAX315 A Type Of Weld: TIG With Wire Feeding
Pipe OD: Φ50-168mm Welding Head Weight: 8Kg
Highlight:

150-325mm Steel Pipe Capacity

,

OBT-400 TIG Power Source

,

Nuclear Grade Pipe Welding

150-325mm Steel Pipe Welding Machine, TIG Welding for Nuclear Power Plant Construction

Application:

Tube Diameter Range: Φ150-325mm

This automatic tube welding machine comprises an OBT-400 TIG welding power source and an OTH-50 orbital welding head. It is suitable for medium-wall-thickness carbon steel and stainless steel pipe welding. Its compact design makes it easy to use on site, delivering good weld surface quality and fast welding speed.

Features
  • Automatic all-position TIG pipe-to-pipe welding with or without wire feeding
  • Compact structure design, stable rotation with small rotating inertia
  • Oscillation and multi-pass welding process
  • Suitable for tube-to-tube, tube-to-flange, tube-to-elbow, and tube-to-valve connections
  • Water-circuit cooling for prolonged continuous operation
  • Modular design with compact structure
  • Main components are of aluminum construction, with a stepless adjustable clamp to accommodate various pipe diameters
  • Gapless gear transmission design with automatic AVC

Specification

ModelMWA-400A
Welding Power SourcePanasonic YC-400TX
Power Source TypeInverter
Welding Current5-400A
Duty Cycle400A/60%; 250A/95%; 244A/100%
Input VoltageAC380V ±10%, 50/60Hz
Total Power8.3KVA
CoolingBuilt-in Water Cooling System
Display7" Touch Screen
Program Storage80
Insulation GradeF
Protection ClassIP21
Weight135KG
Dimension740*520*910
Control Function

Argon Gas Control

Continuous and Pulse Current Control

Welding Head Rotation Control

Wire Feeding Control

Automatic AVC with on/off function for manual adjustment
NameKey PartsBrandOrigin
Welding Power SourceWelding Power SourcePANASONICJapan
PLCMITSUBISHIJapan
Touch ScreenColorful 10"Taiwan, China
Electrical ElementsOMRONJapan
CableQIFANChina
Welding HeadMotorFAULHABERGermany
ConnectionBrass Connector
Welding Head BodyMachined Aluminum

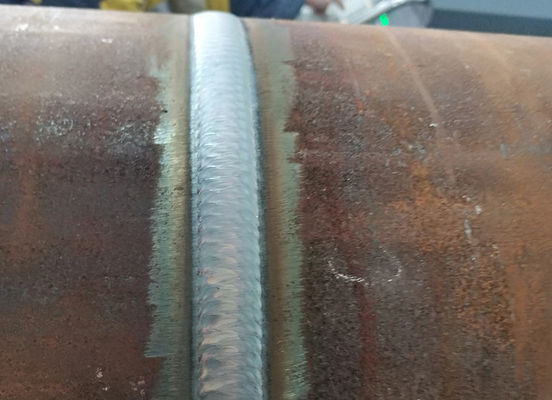

Detailed Pictures

MAX315 A TIG 325mm Steel Pipe Welding Machine

MAX315 A TIG 325mm Steel Pipe Welding Machine
