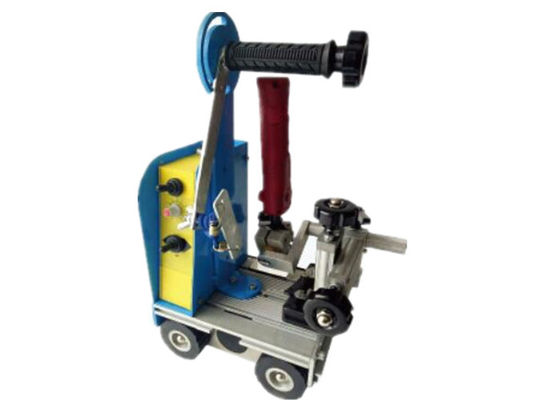

Multi Process Auto Welding Carriage , Self Charging Portable Welding Carriages
Product Details
| Name: | Flat Fillet Welding Carriage | Model: | K6L |
|---|---|---|---|
| Application: | Flat Fillet Welding Carriage | Power Supply: | 220V |
| Free Running Power Supply: | Self-charging Bettery | Size: | 200*300*170mm |
| Weight: | 7KG | Dirve: | 4 Rubber Rim Wheel |
| Highlight |
K6L Self Charging Carriage,Multi Process Auto Welding,Portable Welding Carriage |
||
Product Description
Multi process self-charging flat fillet MIG/MAG Welding Carriage
Model: K6L
Applications:
Flat fillet Weld
It is a portable, self-charging welding carriage, compatible with your MIG or MAG welding torch, which helps welders complete flat fillet welding fast with perfect surface quality.
It has a built-in lithium battery and a welding-arc charging system that recharges the carriage from the welding arc.
Features:
Built-in lithium battery and self-charging system
No unnecessary connection wires
Extremely low failure rate in operation
Lightweight, easy to use and handle
Rubber-rimmed 4-wheel drive
Specification
| Weight | 7 kg | |
| Power | 30 W | |
| Power source | AC 220V | |
| Magnetic Force | 15-25 kg | |
| Drive | Four-wheel drive (rubber rim) | |
| Wheel Dia | 60 mm | |
| Speed of travel | 150-1000 mm/min | |
| Size (L*H*W) | 200 x 300 x 170 mm | |
| Adjustable range of the torch | Up and down | 40-60 mm |
| Front and back | 40-60 mm | |
| Working angle range | ±90° | |
| Moving angle range | ±15° | |
Picking List
|
Name |
Qty(EA) |
|
K6L Welding Carriage |
1 |
|
Welding Torch adjuster |
|
|
Lifting Handle |
|
|
Connection wire |
|
|
Allen Key |
|
|
User Manual |
Product Highlights
Multi process self-charging flat fillet MIG/MAG Welding Carriage Model: K6L Applications: Flat fillet Weld It is a portable, self-charging welding carriage, compatible with your MIG or MAG welding torch, which helps welders complete flat fillet welding fast with perfect surface quality. It has a ...
