Automatic TIG Circular Seam Welding Machine MWHF-HL30 50-500mm OD 3000mm Length 500kg Load
Product Details
| Workpiece OD Range: | Phi 50 - Phi 500 Mm | Workpiece Length: | 3000 Mm |
|---|---|---|---|
| Max Workpiece Weight: | 500 Kg | Welding Process: | Fully Automatic TIG (root, Fill, Cap) |
| Welding Torch: | 400A Water Cooled TIG Torch | Welding Power Source: | Panasonic YC-400TX |
| Rotation Speed: | 0.1 - 2.0 Rpm | Input Power Supply: | 3 Phase AC 380 +/- 10% V |
| Applications: | Pipe To Pipe, Pipe To Flange, Pipe To Elbow, Pipe To T Joint, CS To SS | ||
| Highlight |
Fully Automatic TIG Welding Process,Panasonic YC-400TX Power Source,Pipe To Pipe Flange Welding |
||
Product Description
Automatic TIG Circular Seam Welding Machine MWHF-HL30

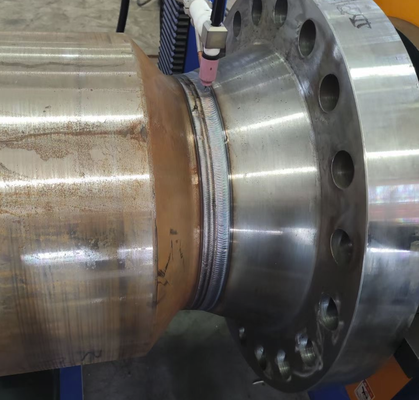

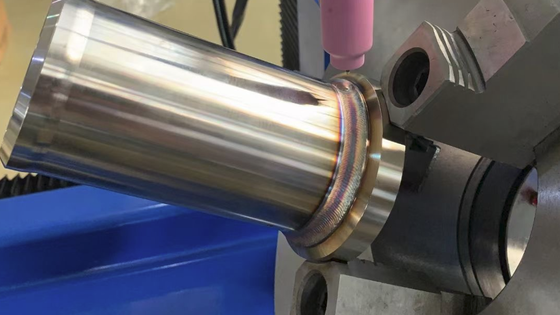

This automatic TIG circular seam welding machine adopts a fully automatic TIG welding process covering root, fill and cap passes. The welding gun stays fixed while the workpiece rotates, delivering lower welding cost, high composite efficiency and simple operation. It is equipped with an automatic double water-cooled welding torch with a high duty cycle and long service life.
Workpiece Specification

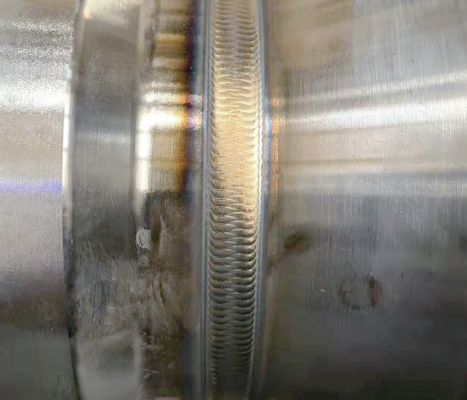

| Workpiece OD Range | Φ50 - Φ500 mm |
| Workpiece Length | 3000 mm |
| Max Workpiece Weight | 500 kg |
| Welding Process | Fully automatic TIG (root, fill, cap) |
| Rotation Speed | 0.1 - 2.0 rpm |
| Input Power Supply | 3 phase AC 380 ± 10% V |

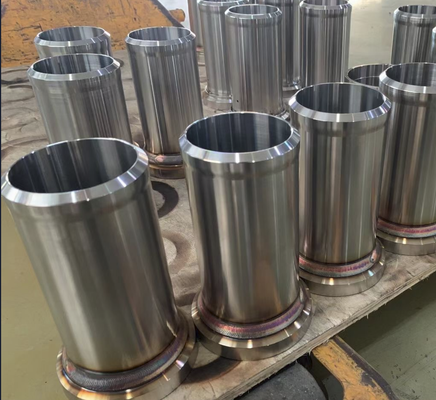

Main Welding Applications
- Carbon steel to stainless steel butt and fillet welding (CS to SS)

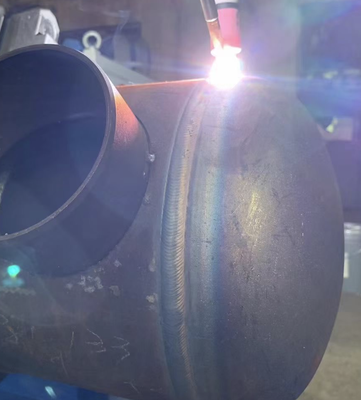

- Pipe to pipe weld

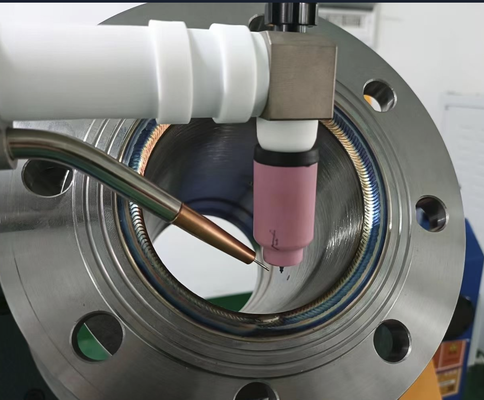

- Pipe to flange weld
- Pipe to elbow / bending pipe weld
- Pipe to T joint weld

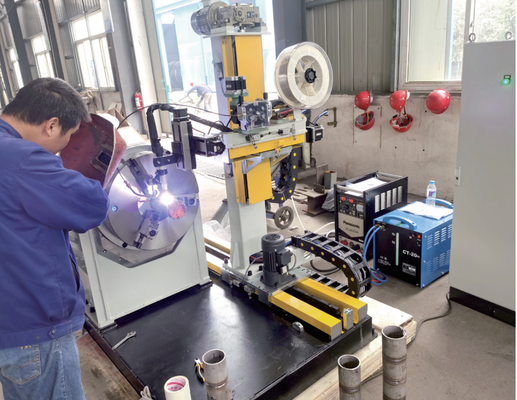

Key Components
| Item | Component | Qty |

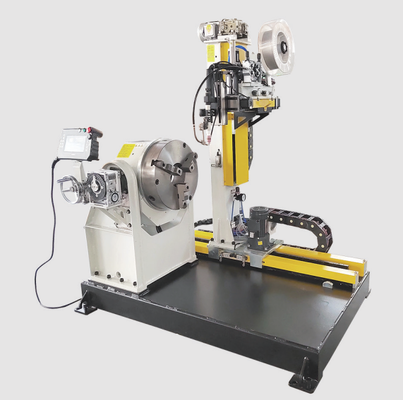

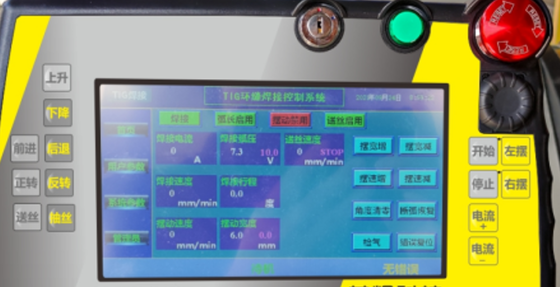

| 1 | MWHF-HL30 circular welding host (frame, rotating power head, self-centering clamping device, torch column, cable assembly) | 1 set |
| 2 | 400A water cooled TIG automatic welding torch | 1 set |
| 3 | Welding power source Panasonic YC-400TX | 1 set |
| 4 | Automatic welding operator (rail + base) | 1 set |
| 5 | Electric arc length swing, water / gas / electric TIG switching device | 1 set |
The frame is an optimized steel structure with adjusting support feet and linear guide rail with rack and pinion. The rotating power head uses a high-precision motor, reducer and slewing bearing for a wide speed range, stable operation and small return clearance. A roller bracket supports long workpieces and is adjustable in height and axial position.
Product Highlights
Automatic TIG circular seam welding machine MWHF-HL30, workpiece OD 50-500mm, length 3000mm, load 500kg, root/fill/cap TIG with Panasonic YC-400TX and 400A water cooled torch.
