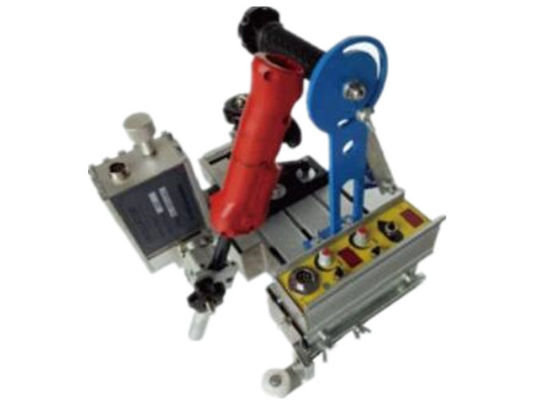

Compact Design Portable Welding Carriages Low Failure Rate On Working
Product Details
| Name: | Full Position Welding Carriage | Model: | GRK6-D |
|---|---|---|---|
| Application: | Flat Fillet Welding Carriage | Power Supply: | 26V Power Supply |
| Size: | 200*300*170mm | Weight: | 7KG |
| Dirve: | 2 | ||
| Highlight |
Compact K6D Carriage,Reliable Low Failure Welding,Portable Auto Carriage |
||
Product Description
Multi process self-charging flat fillet MIG/MAG Welding Carriage
Model: GRK6-D
Applications:
Horizontal welding/ vertical welding / Flat fillet Weld
Features
- Compact design to reduce welding blind angle
- Full-position welding, compatible with multiple MIG/MAG welding torches
- Extremely low failure rate in operation
- Weighing only 6 kg, it is lightweight and easy to use and handle
Specification
| Model | GRK6-D | |
| Weight | 6 kg | |
| Power | 10 W | |
| Power source | AC 220V | |
| Magnetic force | 10-30 kg | |
| Drive | ||
| Wheel Dia | 60 mm | |
| Speed of travel | 150-800 mm/min | |
| Adjustable range of the torch | Up and down | 40 mm |
| Front and back | 40 mm | |
| Working angle range | 0-22° | |
| Moving angle range | 0-90° | |
Picking List
| Name | Qty(EA) |
| K6D Welding Carriage | 1 |
| Welding Torch adjuster | 1 |
| Lifting Handle | 1 |
| Connection wire | 1 |
| Allen Key | 1 |
| 26V power supply | 1 |
| User Manual | 1 |
