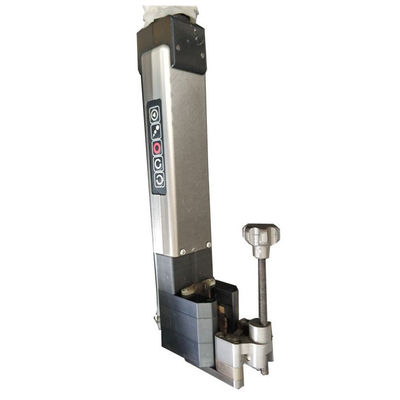

Customized Automatic Tube Welding Machine , Return Bend TIG Welding System 12.7-15.88 Fitting Bend Welder
Product Details
| Name: | Condenser U Tubing Tube Welding Machine | Model: | UFH-15/16 |
|---|---|---|---|
| Application: | Stainless Steel Condenser U Tube Auto Weld Fabricating | Weld Current: | Max. 200A |
| U Tube Material: | Stainless Steel | U Tube Thickness: | 1-3mm |
| Type Of Welding: | TIG/GWAT (No Wire Feeding) | Place Origin: | China |
| Highlight |
12.7-15.88mm Fitting Bend Welding,Customized Return Bend TIG Welder,Automatic Tube Fitting Welding |
||
Product Description
A specially designed TIG welding head for automatic welding of stainless steel condenser U-tubes, operating on the same principle as orbital welding.

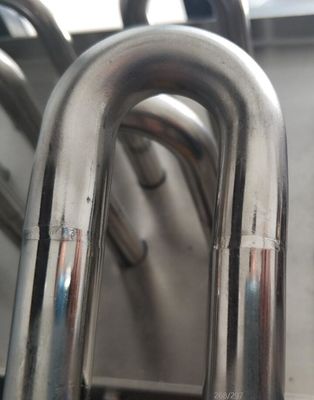

- Condenser U tube welding
- Evaporator U tube welding
- Heat exchanger fabricating
- Carbon Steel U tubing weld
- Stainless Steel U tubing weld
Customized design suitable for all types of U-tubes
Quick-install clamps for easy use
Low labor cost with high welding efficiency
Collision-free welding with reliable contact in narrow-space U-tube applications
Heat-resistant components in a compact, light and durable design
Water-circuit cooling design for long-duration operation
Specification:
| Model | UFH-15 |
| Material | Carbon steel, Stainless Steel, Titanium Alloy |
| Tube Fitting | Plugged U tube |
| Welding Process | TIG/GTAW (no wire feeding) |
| Tube OD(mm/inch) | 12.7-15.88 mm |
| Tube Wall Thickness(mm) | 3 mm |
| Tungsten OD(mm) | 1.6 |
| Rotating | 360° free rotation with auto reset; all-position welding |
| Rotation speed(rpm) | 0.3-6 |
| Protective Gas | Argon |
| Cooling | Water |
| Cooling Flow(ml/min) | 1000 ml/min |
| Cable Length | 6 m |
| Main Dimension(mm) | |
| Weight(kg) | 1 kg |
| Dimension(mm) | 377 x 38 x 100 |
Detailed Pictures
| Order Code | K200150-U |
| Packing | Flight case |
| Packing Size | 520 x 400 x 200 mm |
| Packing Weight | 13 kg + 23 kg (Welding Power Source OBT-200) |
| Delivery Time | 3 Days after payment |
