Automatic Tube Welding Machine of Condenser U Tubing Auto Fusion TIG Welding No Wire Feeding
Application:
Condensor U Automatic Tube Welding Machine For Carbon Steel Tubing Weld
This is a special designed TIG welding head for stainless steel condenser U tube automatic welding, which is almost same with orbital welding process
- Condenser U tube welding
- Evaporator U tube welding
- Heat exchanger fabricating
- Carbon Steel U tubing weld
- Stainless Steel U tubing weld
Features:
Customized design, suitable for all type U tube
Quick-install Clamps, easy to use
Low labor cost and high efficiency welding
Collision-free and good contact narrow space U tube welding
Heat- resisting components with compact design, light and durable
Water circuit cooling design for long time working
Specification:
| Model |
MWH-15/16 |
| Material |
Carbon steel, Stainless Steel, Titanium Alloy |
| Tube Fitting |
Plugged U tube |
| Welding Process |
TIG/GTAW (no wire feeding) |
| Tube OD(mm/inch) |
12.7-15.88 |
| Tube Wall Thickness(mm) |
≤3mm |
| Tungsten OD(mm) |
1.6 |
| Rotating |
360 degree free rotated and Auto reset ;all position welding; |
| Rotation speed(rpm) |
0.3~6 |
| Protective Gas |
Argon |
| Cooling |
Water |
| Cooling Flow(ml/min) |
1000ml/min |
| Cable Length |
6m |
| Main Dimension(mm) |
| Weight(kg) |
1kg |
| Dimension(mm) |
377*38*100 |
Overview and Features
- Compatible for all weld heads
- Portable and handy design, total 18kg weight with complete functions, easy to move and working at height
- SCM Microcomputer control system, sturdy and durable; difficult to breakdown and Low cost of maintenance;
- Control pendant display for real-time data monitoring
- Welding Parameters can be setup , Storage, Print and protected by password.
- Built-in professional welding head parameters for accurate motion control.
- Water circuit cooling design for long time working , raise substantially lift time of welding head.
- 10”touch screen control panel, One-button print of welding parameter, easy and fast to understand.
- Perfect fault detection solutions including: overvoltage , electric leakage, gas detection, water pressure protections and error display ;modular design for easy maintenance.
Power Source Specification:
| Model |
MWA-200A |
| Welding source |
EWM (Germany) |
| Welding Current |
200A |
| Power source type |
Inverter |
| Duty Cycle |
200A 25%,120A 100% |
| Input Voltage |
AC220V ±10% 50/60Hz |
| Power |
6.3KVA |
| Cooling |
Build-in Water Cooling |
| Display |
7 touch screen |
| Programs Storage |
32 |
| Printer |
Build In Printer |
| Insulation Grade |
H |
| Protection Class |
IP21 |
| Weight |
18KG |
| Dimension |
590*300*325 |
| Control Function |
Argon Gas Control
Welding Continuous Welding Current and Plus Current Control
Welding Head Rotation Control
Wire Feeding Control
|
Detailed Pictures

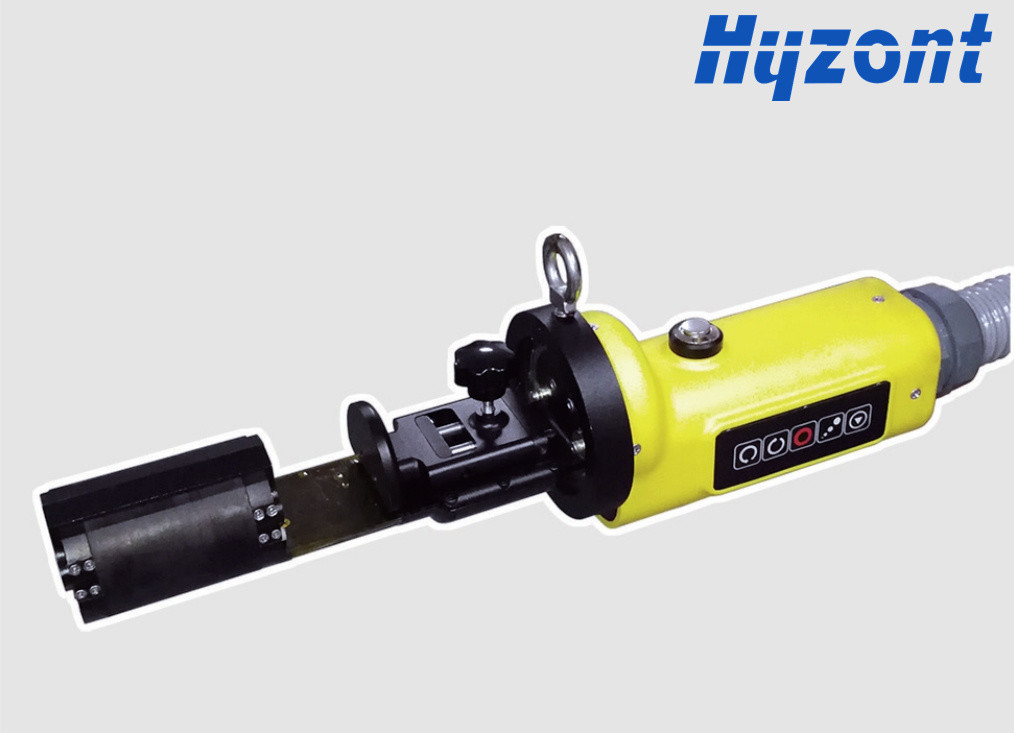

Condensor U tubing Automatic Welding Machine head well packed by flight Case
