Titanimu Tube To Tube Sheet Orbital Welding For Stainless Steel U Tubing Weld

Titanimu Tube To Tube Sheet Orbital Welding For Stainless Steel U Tubing Weld
Titanimu Tube To Tube Sheet Orbital Welding For Stainless Steel U Tubing Weld

Large Image :  Titanimu Tube To Tube Sheet Orbital Welding For Stainless Steel U Tubing Weld

Product Details:
Place of Origin: China
Brand Name: Hyzont
Certification: CCC
Model Number: UFH-15/16
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: negotiable
Packaging Details: Flight Case
Delivery Time: 3 Days after Payment
Supply Ability: 100 Sets a month
Contact Now

Titanimu Tube To Tube Sheet Orbital Welding For Stainless Steel U Tubing Weld

Description
Name: Condenser U Tubing Tube Welding Machine Model: UFH-15/16
Application: Stainless Steel Condenser U Tube Auto Weld Fabricating Weld Current: Max. 200A
U Tube Material: Stainless Steel U Tube Thickness: 1-3mm
Type Of Welding: TIG/GWAT (No Wire Feeding) Place Origin: China
Highlight:

Titanium Tube to Tubesheet Welding

,

UFH Series Stainless U Tubing

,

Orbital Tube Sheet Welding

Titanimu tubing orbital welding system Automated orbital welding

Brand: Hyzont

Model: UFH-15/16

Application:

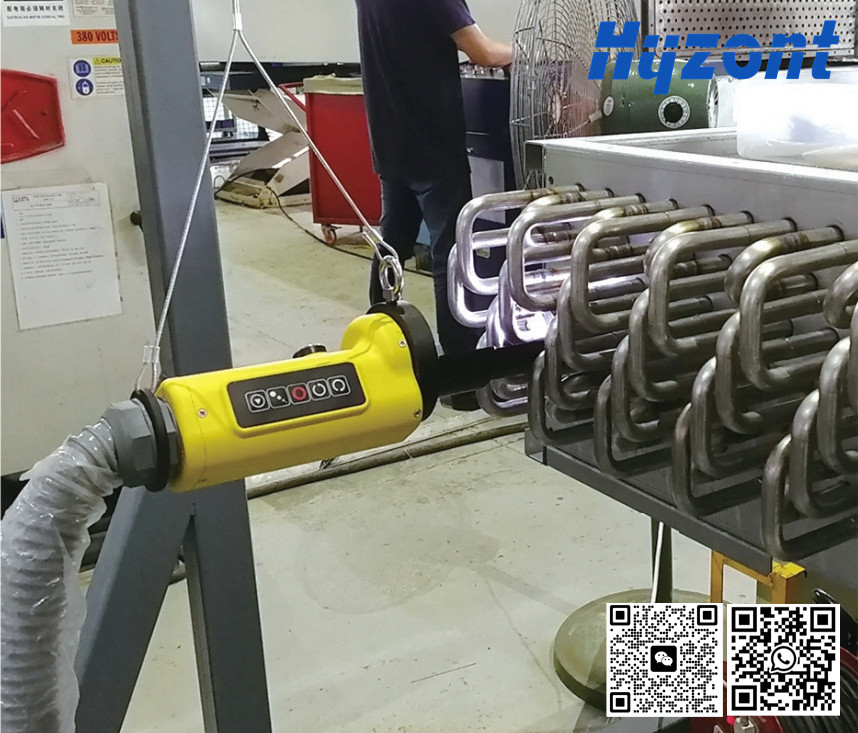

A specially designed TIG welding head for automatic welding of stainless steel condenser U-tubes, operating on the same principle as orbital welding.

  • Condenser U tube welding
  • Evaporator U tube welding
  • Heat exchanger fabricating
  • Carbon Steel U tubing weld
  • Stainless Steel U tubing weld
Features:

Customized design suitable for all types of U-tubes

Quick-install clamps for easy use

Low labor cost with high welding efficiency

Collision-free welding with reliable contact in narrow-space U-tube applications

Heat-resistant components in a compact, light and durable design

Water-circuit cooling design for long-duration operation

Specification:

ModelUFH-15
MaterialCarbon steel, Stainless Steel, Titanium Alloy
Tube FittingPlugged U tube
Welding ProcessTIG/GTAW (no wire feeding)
Tube OD(mm/inch)12.7-15.88 mm
Tube Wall Thickness(mm)3 mm
Tungsten OD(mm)1.6
Rotating360° free rotation with auto reset; all-position welding
Rotation speed(rpm)0.3-6
Protective GasArgon
CoolingWater
Cooling Flow(ml/min)1000 ml/min
Cable Length6 m
Main Dimension(mm)
Weight(kg)1 kg
Dimension(mm)377 x 38 x 100
Overview and Features
  • Compatible for all weld heads
  • Portable and handy design, total 18 kg weight with complete functions, easy to move and work at height
  • SCM Microcomputer control system, sturdy and durable; difficult to break down with low maintenance cost;
  • Control pendant display for real-time data monitoring
  • Welding parameters can be set up, stored, printed and password-protected.
  • Built-in professional welding head parameters for accurate motion control.
  • Water-circuit cooling design for long-duration operation, substantially extending the service life of the welding head.
  • 10-inch touch screen control panel, one-button printing of welding parameters, easy and fast to understand.
  • Excellent fault detection solutions including: overvoltage, electric leakage, gas detection, water pressure protections and error display; modular design for easy maintenance.
Power Source Specification:
ModelMWA-200A
Welding sourceEWM (Germany)
Welding Current200 A
Power source typeInverter
Duty Cycle200 A / 25%, 120 A / 100%
Input VoltageAC 220 V ±10%, 50/60 Hz
Power6.3 kVA
CoolingBuilt-in water cooling
Display7-inch touch screen
Programs Storage32
PrinterBuilt-in printer
Insulation GradeH
Protection ClassIP21
Weight18 kg
Dimension590 x 300 x 325
Control Function

Argon gas control

Continuous welding current and pulse current control

Welding head rotation control

Wire feeding control

Detailed Pictures

Titanimu Tube To Tube Sheet Orbital Welding For Stainless Steel U Tubing Weld

Titanimu Tube To Tube Sheet Orbital Welding For Stainless Steel U Tubing Weld

HYZONT (SHANGHAI) INDUSTRIAL TECHNOLOGIES CO., LTD.
Add: Building 1, Lane 99 Shenmei Road, Pudong District, Shanghai, China
Sales Manager: Mr. Raymond
Mob: +86 15021164313  |  WhatsApp: +8615021164313  |  WeChat: +8615021164313
