TIG Orbital Welding Machine With Multi-languaes Computerized Control System
Product Details
| Warranty: | 12month | Product Name: | Orbital Welding Machine |
|---|---|---|---|
| Power Rating: | High | Welding Precision: | High |
| Power Source: | TIG 200Amp | Color: | Yellow And Gray |
| Control System: | PLC | Durability: | High |
| Cooling System: | Water Cooling | Safety System: | Emergency Stop/Safety Interlock |
| Weight: | 30Kg | Welding Environment: | Indoor/Outdoor |
| Welding Material: | Stainless Steel/Aluminum | Welding Position: | Tube 1G-6G |
| Welding Process: | TIG | Welding Range: | 0.5-3mm |
| Welding Current: | Max200Amp | Welding Speed: | Adjustable |
| Highlight |
Multi-Language Control System,Computerized TIG Orbital Welding,High Precision Pipe Welding |
||
Product Description

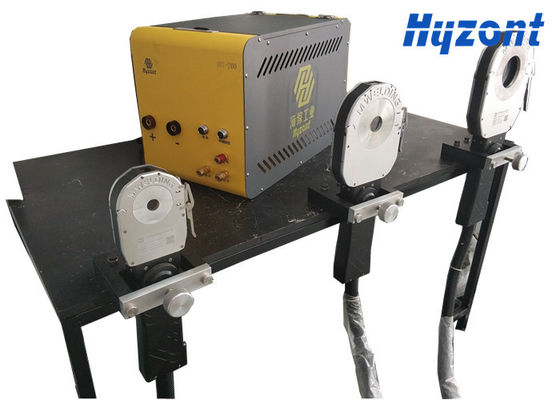

The Hyzont MWF-40, MWF-80 and MWF-120 enclosed orbital welding heads are designed for automatic TIG/GTAW (autogenous, no wire feeding) butt welding of tubes and pipes. They cover tube OD ranges of 6-38.1 mm (1/4-1 1/2 in), 19.05-76.2 mm (3/4-3 in) and 38.1-114.3 mm (1 1/2-4 1/2 in) respectively, for straight tube, pipe flange and elbow butt joints in carbon steel, stainless steel and titanium alloy. Each head features a genuine German rotation motor, 360° free rotation with auto reset for all-position welding, water cooling at 1000 ml/min, argon shielding and quick-install clamps, delivering clean, repeatable welds for industries such as oil and gas, chemical, food, beverage and pharmaceutical piping. CE/CCC certified with IP56 protection.
- Enclosed welding head design for better shielding and operator safety
- Genuine German rotation motor for stable, reliable welding
- 360° free rotation with auto reset; all-position welding
- TIG/GTAW autogenous welding (no wire feeding)
- Built-in welding head parameters for accurate motion control
- Water-circuit cooling for long-duration operation
- Quick-install clamps for easy setup
- Compact closed-head design in aluminum alloy, lightweight and durable
| Model | MWF-40 | MWF-80 | MWF-120 |
| Material | Carbon steel, stainless steel, titanium alloy | ||
| Tube Fitting | Straight tube, pipe flange, elbow butt joint | ||
| Welding Process | TIG/GTAW autogenous welding (no wire feeding) | ||
| Tube OD(mm/inch) | 6-38.1 mm 1/4-1 1/2 in | 19.05-76.2 mm 3/4-3 in | 38.1-114.3 mm 1 1/2-4 1/2 in |
| Tube Wall Thickness(mm) | 3 mm | 3 mm | 3 mm |
| Tungsten OD(mm) | 1.6 | 1.6-2.4 | 1.6-2.4 |
| Rotating | 360° free rotation with auto reset; all-position welding | ||
| Rotation speed(rpm) | 0.3-6 | 0.2-4.5 | 0.15-1.9 |
| Protective Gas | Argon | Argon | Argon |
| Cooling | Water | Water | Water |
| Cooling Flow(ml/min) | 1000 ml/min | 1000 ml/min | 1000 ml/min |
| Cable Length | 6 m | 6 m | 6 m |
| Main Dimension(mm) | |||
| Weight(kg) | 2 kg | 3 kg | 6 kg |
| Dimension(mm) | 377 x 38 x 100 | 436 x 38 x 175 | 497 x 230 x 57 |
