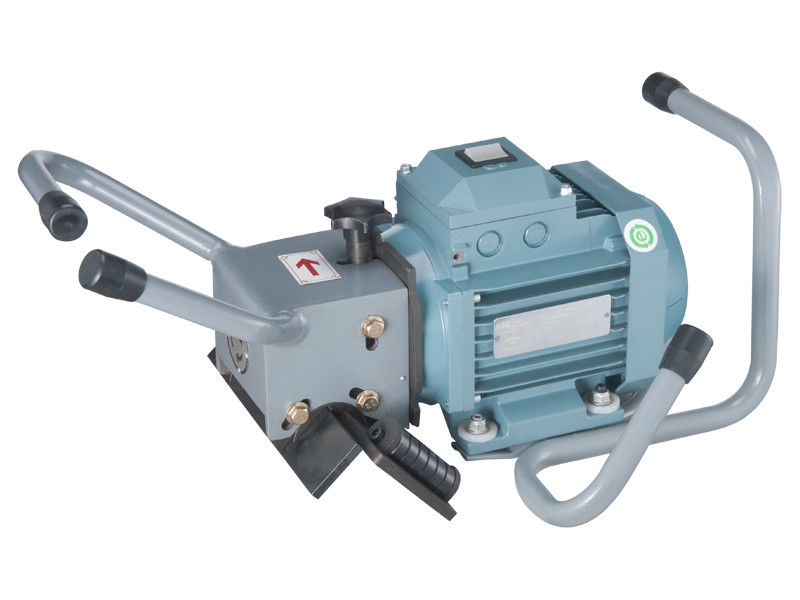

Hand Type Portable Pipe Beveling Machine For Various Metal Plates 1-3m/Min

Hand Type Portable Pipe Beveling Machine For Various Metal Plates 1-3m/Min
Hand Type Portable Pipe Beveling Machine For Various Metal Plates 1-3m/Min
Hand Type Portable Pipe Beveling Machine For Various Metal Plates 1-3m/Min Hand Type Portable Pipe Beveling Machine For Various Metal Plates 1-3m/Min

Large Image :  Hand Type Portable Pipe Beveling Machine For Various Metal Plates 1-3m/Min

Product Details:
Place of Origin: China
Brand Name: Hyzont
Certification: CCC
Model Number: SKF-15
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Case Package
Delivery Time: 5-8 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 Sets a month
Contact Now

Hand Type Portable Pipe Beveling Machine For Various Metal Plates 1-3m/Min

Description
Brand: Hyzont Name: Metal Plate Beveling Machine
Model: SKF-15 Power Supply: 380V 50HZ
Cutting Depth: 3mm Bevel Angle: Bevel Angle
Bevel Speed: 1-3m/min Weight: 18Kg
Highlight:

Portable Hand Beveling 1-3m/min

,

SKF-15 Metal Plate Beveler

,

Manual Feed Bevel Machine

Plate beveling Machine hand type plate mill machine Tube Beveling Machine

Model: SKF-15

Applications:

SKF-15 hand-held steel plate beveling machine is also called chamfering machine, flat beveling machine. It is specially designed for getting welding bevel and chamfer of various metal plates. This machine adopts milling processing mode and manual propulsion feeding.

Its small size, light weight, convenient carrying and simple operation are a convenient tool for steel plate bevel processing. It is a necessary production equipment of nuclear industry, shipyard, pharmaceutical machinery, pressure vessel fabricating.

Maximum bevel width 15 mm

Features:

  • Cold processing method does not change the material of the steel plate;
  • The groove angle is adjusted from 30 degrees to 60 degrees;
  • Formable bevel form: V, Y type;
  • There is no limit to the thickness of the metal plate and the maximum slope width is 15 mm;
  • The surface roughness can reach Ra3.2-Ra6.3;
  • Optional pipe clamping aids, can be grooved processing of the pipe end;

  • It is suitable for processing engineering profiles such as carbon steel, stainless steel, alloy steel, cast iron and hard plastic;

    • Specification

    Model

    Power Supply

    Motor Power

    Cutting Depth

    Maximum bevel width

    Bevel Angle

    Bevel Speed

    Weight
    SKF-15 380 V 50 Hz 3P ABB 1.1 kW 3 mm 15 mm 30°-60° 1-3 m/min 18 kg
    SKF-15N 220 V 50 Hz 1P BOSCH 2.0 kW 5 mm 15 mm 30°-60° 1-3 m/min 14 kg

    Detailed Pictures

    Bevel Head of Portable Plate Beveling Machine

    Milling Cutter of Portable Beveling Machine
