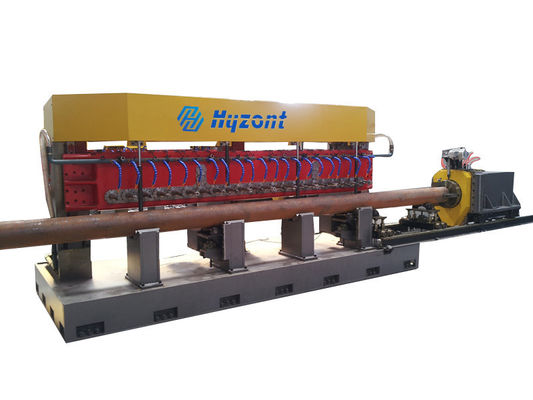

OCTG CNC Pipe Perforating Machine , 22 Spindles Tube Slotting Machine

OCTG CNC Pipe Perforating Machine , 22 Spindles Tube Slotting Machine
OCTG CNC Pipe Perforating Machine , 22 Spindles Tube Slotting Machine

Large Image :  OCTG CNC Pipe Perforating Machine , 22 Spindles Tube Slotting Machine

Product Details:
Place of Origin: China
Brand Name: Hyzont / SUNWAY
Certification: N/A
Model Number: PSM-160
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 50-70mdays
Payment Terms: L/C, T/T
Contact Now

OCTG CNC Pipe Perforating Machine , 22 Spindles Tube Slotting Machine

Description
Name: Slotted Liner CNC Saw Cutting Machine(CNC Pipe Slotting Machine) Model: PSM-160
Application: Oil Well Or Water Well Slotted Liner Fabricating Tube OD: Φ60-Φ177.8mm
Wall Thickness: 1-12mm Spindle: 16
Slots Width: 0.3-3mm Max Saw Blade Diameter: 76mm
Highlight:

22 Spindles Tube Slotting

,

OCTG CNC Perforating

,

PSM-160 Multi Spindle Unit

OCTG CNC pipe perforator automatic Slots Cutting Machine Pipe Slotting Machine

Model: PSM-160

Applications

This pipe perforator consists of 16 or 22 Spindles and a steel gear box normalized after fabrication but before machining. It is supported from an overhead steel structure and guided on precision profile rail systems. Two adjustable-pressure air cylinders counterbalance the weight of the gearbox. This feature makes it possible for the lead screws to always be in compression, which eliminates backlash and minimizes wear on the ball-type lead screws. The gearbox houses the spindles, upon which the cutters are mounted. A distinctive hydraulic clamping system secures and straightens the casing without damaging the pipe or slots. Special high speed steel circular saws cut the slots. Continuous application of coolant maintains the pipe's metallurgical integrity. No excess metal is removed and maximum pipe strength is assured while staying within a specified open area.

Features

  • Pipe diameter capacity upto 7"
  • Maximum single pass pipe perforation length: twenty (20) feet
  • Number of spindles: forty two (22) on six (6) inch centers
  • Spindle Capacity: one (1) to three (3) cutters
  • Electrical power: 220/380 volts 3 phase
  • Complete electrical control system included
  • All Spindles cooling by liquid coolant

    • Specification

    Spindle BoxPipe OD60-177.8 mm/7"
    Spindle Number22
    Spindle center distance152.4 mm/6"
    Max milling cutter diameter75 mm
    Saw cutter amount on one spindle1-4
    Straight Slotting width0.3-3 mm
    Spindle Rotation speed100-800 r/min
    Main Motor Power2×11 kW
    Spindle up and down stroke200 mm
    Z axis servo motor power/Torque2 x 1.5 kW/4.77 Nm
    Z axis max moving speed2000 mm/min
    Z axis accuracy0.5 mm/r
    Pipe Rotation index positioning systemA axis servo motor power/Torque1 kW/4.77 Nm
    A axis max rotation speed20R/Min
    A axis rotation accuracy6.279degree/r
    X axis servo motor power1 kW/4.77 Nm
    X axis Max rotation speed8000 mm/min
    X axis max rotation accuracy11.3 mm/r
    Rail length14000 mm
    Pipe moving stroke12000 mm
    Pneumatic system Compressed air pressure>0.5 MPa
    Cooling SystemCoolingliquid coolant
    Cutting Compound pump flow200L/min
    Cutting Compound pump power2 x 0.45 kW
    Electrical systemControllerPLC
    CNC axis number4
    Total Power32 kW
    Machine Body SizeL x W x H(mm)4300x1800x2550
    Pipe feeder system Rail Length12000 mm
    Gross WeightApprox 14ton

    Detailed Pictures

    PSM-22 Slotting Machine Saw Blade Oile Tubing Slots Cutting Upto 76.4 Length and 3 mm Width

    Order information

    Order CodePSM-220
    PackingN/A
    Packing SizeN/A
    Packing Weight14000Kg
    Delivery Time70 Days after payment

    CNC Pipe Slotting Machine PSM-220 Youtube Video Link: https://www.youtube.com/watch?v=sm_vTdOgPBU
