High Speed Automatic Slotting Machine With φ75mm Milling Cutter Diameter

Description
Name: CNC Pipe Slotting Machine Model: PSM-220
Application: Oil Well Or Water Well Slotted Liner Fabricating Tube OD: Φ60-Φ177.8mm
Wall Thickness: 1-12mm Spindle: 16
Slots Width: 0.3-3mm Max Saw Blade Diameter: 76mm
Highlight:

Automatic Slotting High Speed

,

75mm Milling Cutter

,

φ Pipe Slotting CNC

OCTG CNC pipe perforator automatic Slots Cutting Machine Pipe Slotting Machine

Model: PSM-160

Applications

Straight slots are the first type of slots created in liners and they are cut with equal width through the wall of the pipe. Specified where sand grain bridging at the slot is not of major importance, straight slots are more wear-resistant than keystone slots and are less costly to produce. Our slotting machines are designed to handle pipe sizes up to 12 inches in diameter and can manufacture lengths up to 46 feet at one time. This extremely rigid and stable equipment enables the pipe to be milled to precise tolerances, producing clean openings and consistent slot widths and lengths.

A distinctive hydraulic clamping system secures and straightens the casing without damaging the pipe or slots. Special high speed steel circular saws cut the slots. Continuous application of coolant maintains the pipe's metallurgical integrity. No excess metal is removed and maximum pipe strength is assured while staying within a specified open area.

Features

  • Pipe diameter capacity upto 7"
  • Maximum single pass pipe perforation length: twenty (20) feet
  • Number of spindles: forty two (22) on six (6) inch centers
  • Spindle Capacity: one (1) to three (3) cutters
  • Electrical power: 220/380 volts 3 phase
  • Complete electrical control system included
  • All Spindles cooling by liquid coolant

    • Specification

    Spindle BoxPipe OD60-177.8 mm/7"
    Spindle Number22
    Spindle center distance152.4 mm/6"
    Max milling cutter diameter75 mm
    Saw cutter amount on one spindle1-4
    Straight Slotting width0.3-3 mm
    Spindle Rotation speed100-800 r/min
    Main Motor Power2×11 kW
    Spindle up and down stroke200 mm
    Z axis servo motor power/Torque2 x 1.5 kW/4.77 Nm
    Z axis max moving speed2000 mm/min
    Z axis accuracy0.5 mm/r
    Pipe Rotation index positioning systemA axis servo motor power/Torque1 kW/4.77 Nm
    A axis max rotation speed20R/Min
    A axis rotation accuracy6.279degree/r
    X axis servo motor power1 kW/4.77 Nm
    X axis Max rotation speed8000 mm/min
    X axis max rotation accuracy11.3 mm/r
    Rail length14000 mm
    Pipe moving stroke12000 mm
    Pneumatic system Compressed air pressure>0.5 MPa
    Cooling SystemCoolingliquid coolant
    Cutting Compound pump flow200L/min
    Cutting Compound pump power2 x 0.45 kW
    Electrical systemControllerPLC
    CNC axis number4
    Total Power32 kW
    Machine Body SizeL x W x H(mm)4300x1800x2550
    Pipe feeder system Rail Length12000 mm
    Gross WeightApprox 14ton

    Detailed Pictures

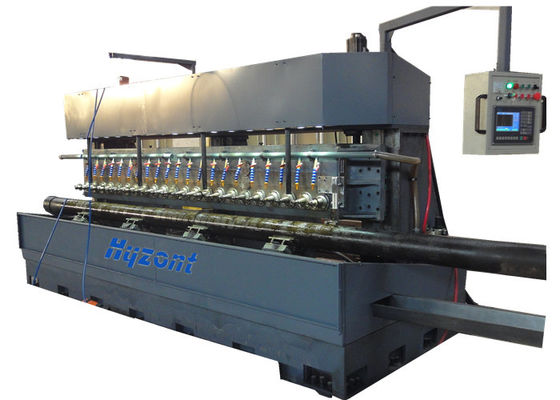

    Back View of PSM-22 Slotting Machine Front View of Hyzont PMS-220 Machine

    Order information

    Order CodePSM-220
    PackingN/A
    Packing SizeN/A
    Packing Weight14000Kg
    Delivery Time70 Days after payment

    CNC Pipe Slotting Machine PSM-220 Youtube Video Link: https://www.youtube.com/watch?v=sm_vTdOgPBU
