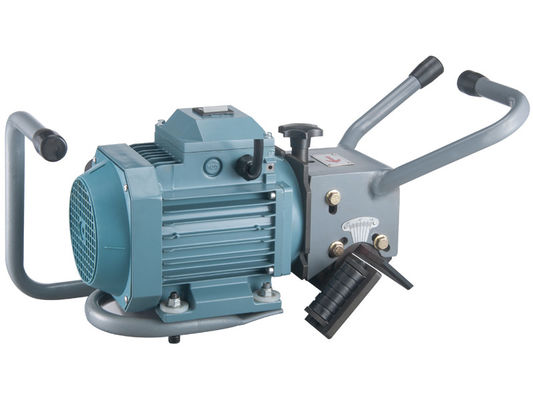

Plate Beveller Cutting Welding Machine Powerfull And Effortless 380V 50HZ

Portable Metal Plate Eege Beveling Machine 75mm thickness plate beveling cutting welding machine

Model:SKF-15

Application:

            This is a fast. noiseless and effortless plate beveller that operates using a self gripping system. It can bevel plates with a thickness from 3 to 16 mm with a maximum bevel width of 6 mm. The bevelling angle can be set to225°.25°,30°,35°,37.5° or 45, different bevelling angles can be changed using angle variation devices
             It is designed for bevelling of straight or curved(R>1000)edges. Bevelling is very easy as the machine either feeds small pieces through its bevelling device or with larger and heavier plates it grips on the plate and its bevelling tool propels the machine along the plate. The beveling speed is 1.8 m/min. Bevelling is virtually noiseless The machines weight is only 34kg. Some simple types of outside bevel can even be performed on pipes.


Feature:

• Cold processing method does not change the material of the steel plate;
• The groove angle is adjusted from 30 degrees to 60 degrees;
• Formable bevel form: V, Y type;
• There is no limit to the thickness of the metal plate and the maximum slope width is 15mm;
• The surface roughness can reach Ra3.2-Ra6.3;
• Optional pipe clamping aids, can be grooved processing of the pipe end;

• It is suitable for processing engineering profiles such as carbon steel, stainless steel, alloy steel, cast iron and hard plastic;

Specification

Detailed Pictures

                      Portable Plate Beveling Machine

                 Milling Cutter of Portable Beveling Machine
