No Wire Feeding Orbital Tube Welding , High Efficiency Automatic Tube Welder
  • No Wire Feeding Orbital Tube Welding , High Efficiency Automatic Tube Welder

No Wire Feeding Orbital Tube Welding , High Efficiency Automatic Tube Welder

Place of Origin China
Brand Name Hyzont
Certification CCC
Model Number UFH-15/16
Product Details
Name:
Condenser U Tubing Tube Welding Machine
Model:
UFH-15/16
Application:
Stainless Steel Condenser U Tube Auto Weld Fabricating
Weld Current:
Max. 200A
U Tube Material:
Stainless Steel
U Tube Thickness:
1-3mm
Type Of Welding:
TIG/GWAT (No Wire Feeding)
Place Origin:
China
High Light:

fin tube welding machine

,

automatic orbital welding machine

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
negotiable
Packaging Details
Flight Case
Delivery Time
3 Days after Payment
Supply Ability
100 Sets a month
Product Description



Automatic Tube Welding Machine of Condenser U Tubing Auto Fusion TIG Welding No Wire Feeding​



Brand: Hyzont



Model: UFH-15



Application:



This is a special designed TIG welding head for stainless steel condenser U tube automatic welding, which is almost same with orbital welding process



  • Condenser U tube welding
  • Evaporator U tube welding
  • Heat exchanger fabricating
  • Carbon Steel U tubing weld
  • Stainless Steel U tubing weld



Features:



Customized design, suitable for all type U tube

Quick-install Clamps, easy to use

Low labor cost and high efficiency welding

Collision-free and good contact narrow space U tube welding

Heat- resisting components with compact design, light and durable

Water circuit cooling design for long time working






Specification:



Model UFH-15
Material Carbon steel, Stainless Steel, Titanium Alloy
Tube Fitting Plugged U tube
Welding Process TIG/GTAW (no wire feeding)
Tube OD(mm/inch) 12.7-15.88
Tube Wall Thickness(mm) ≤3mm
Tungsten OD(mm) 1.6
Rotating 360 degree free rotated and Auto reset ;all position welding;
Rotation speed(rpm) 0.3~6
Protective Gas Argon
Cooling Water
Cooling Flow(ml/min) 1000ml/min
Cable Length 6m
Main Dimension(mm)
Weight(kg) 1kg
Dimension(mm) 377*38*100







Detailed Pictures

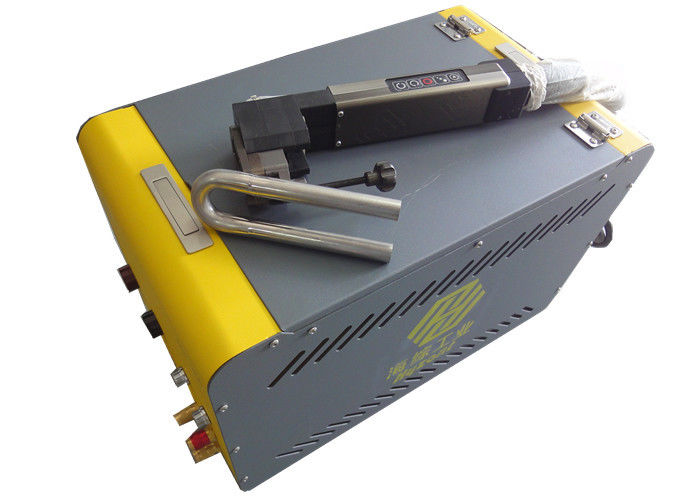

No Wire Feeding Orbital Tube Welding , High Efficiency Automatic Tube Welder 0

  Condensor U tubing  Automatic Welding Machine head well packed by flight Case





No Wire Feeding Orbital Tube Welding , High Efficiency Automatic Tube Welder 1

                     UFH-15 welding machine butt welding



Order information



Order Code K200150-U
Packing Flight case
Packing Size 520*400*200mm
Packing Weight 13Kg + 23Kg (Welding Power Source OBT-200)
Delivery Time 3 Days after payment







Hyzont UFH-15 Orbital Welding Machine Youtube Video Link:



https://www.youtube.com/watch?v=MkraxggD7QU
