Pneumatic Pipe Beveling Machine , Portable Pipe Beveler OD Range 12-40mm

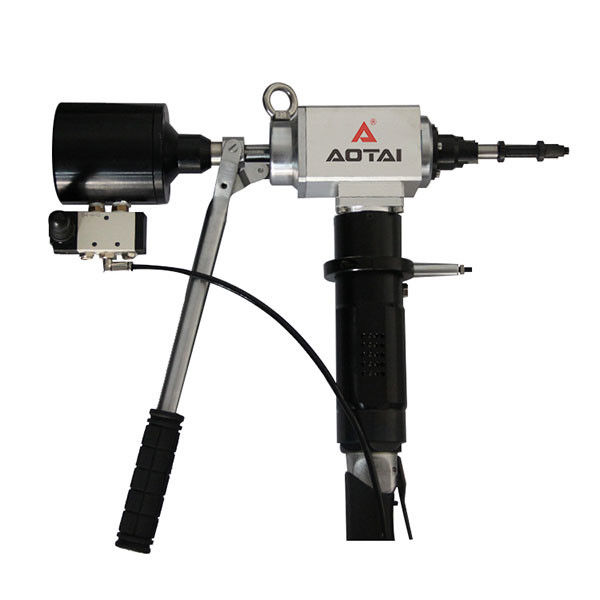

Large Image : Pneumatic Pipe Beveling Machine , Portable Pipe Beveler OD Range 12-40mm

Product Details:

Place of Origin:	CHINA
Brand Name:	AOTAI
Certification:	CE
Model Number:	ATCM-20

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 set a month

Contact Now

Pneumatic Pipe Beveling Machine , Portable Pipe Beveler OD Range 12-40mm

Description

Name:	Tube Bevel Machine	Model:	ATCM-20
Bevel Angle:	0-37 Degreee	Drive:	Pneumatic
Tube ID Range:	150-330	Place Of Origin:	China
Suitable For:	Carnbon Steel And Stainless Steel Tube	Wall Thickness:	Max75mm
Highlight:	ATCM-20 Pneumatic Beveler , Portable OD 12-40mm , Air Driven Pipe Bevel

Pneumatic small tube fast tube beveling Machine OD range 12-40 mm

Applicable processing Tube OD range: OD 12-40 mm

Model: ATCM-20

Applications:

ATCM series pneumatic tube end facing machine is designed for batch processing of small tube.

It adopts tube inner diameter positioning and installation, pneumatic quick tightening, pneumatic drive, automatic feed or manual feed.

The utility model has the advantages of compact structure, light weight, simple operation and high processing efficiency.

It is widely applicable to batch processing of tube end facing of various metal pipes, and it is especially suitable for heat exchanger, water wall, thermal power plant, pharmaceutical, brewing, refrigeration and others industries.

Features:

Complete cold cutting without changing the material of the pipe;

The inner diameter of the pipe is installed, and the pneumatic quick positioning is tightened;

Manual or automatic feed, fast feed and retraction, a flat mouth only takes a few seconds;

It can scrape off the excess length of the nozzle, fast flat mouth and groove, and remove the weld seam;

processing range: tube inner diameter from 12 mm-40 mm, other specifications of the pipeline, can be customized;

whole machine is small and light, easy to move, can be used in various stations and conditions;

Applicable to end face processing of various grades of carbon steel, stainless steel, alloy steel and other metal pipes

Processing:

pipe end facing

pipe end beveling

Specification:

Model	ATCM-20	ATCM-20A	ATCM-40	ATCM-40A
Feed	Manual	Auto	Manual	Auto
Tube ODmm	12.5-20	12.5-20	20-40	20-40
Feed stroke mm	20	20	20	20
Max Wall Thick mm	5	5	5	5
no-load speed	300rpm	300rpm	300rpm	300rpm
Torque	50Nm	50Nm	50Nm	50Nm
Power	1.1 HP	1.1 HP	1.1 HP	1.1 HP
Compressed Air	1500-2000L/min @0.63-0.8MPa	1500-2000L/min @0.63-0.8MPa	1500-2000L/min @0.63-0.8MPa	1500-2000L/min @0.63-0.8MPa
Width of Machine	59 mm	59 mm	59 mm	59 mm
Weight	7 kg	12 kg	8 kg	12 kg
