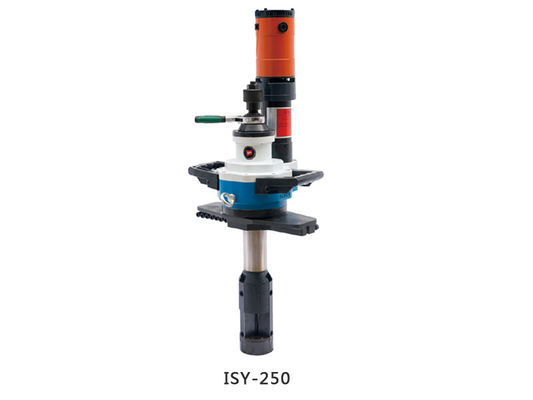

ID Range 80-240mm Boiler Tube Beveling Machine 0-37 Degree Bevel Angle Cut
  • ID Range 80-240mm Boiler Tube Beveling Machine 0-37 Degree Bevel Angle Cut
  • ID Range 80-240mm Boiler Tube Beveling Machine 0-37 Degree Bevel Angle Cut
ID Range 80-240mm Boiler Tube Beveling Machine 0-37 Degree Bevel Angle Cut

ID Range 80-240mm Boiler Tube Beveling Machine 0-37 Degree Bevel Angle Cut

Place of Origin CHINA
Brand Name AOTAI
Certification CE
Model Number ISY-250
Product Details
Name:
Tube Bevel Machine
Model:
ISY-250
Bevel Angle:
0 Degree/30degree / 37 Degree/ 15 Degree Inner Bevel
Drive:
220V-230V Eletricity
Tube ID Range:
80-240
Place Of Origin:
China
Suitable For:
Carnbon Steel And Stainless Steel Tube
Wall Thickness:
Less Than 15mm
High Light:

pipe beveling machine

,

pipe beveling equipment

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Wooden Case
Delivery Time
5-8 days
Payment Terms
T/T, Western Union
Supply Ability
1000 set a month
Product Description



Tube Beveling Machine ID range 80-240mm tube end facing mill ane 0-37 degree bevel angle cut







Model: ISY-250





Applications:

It is widely applied in

  • Pipeline installation engineering
  • Pipeline repair site in petroleum, chemical industry
  • Natural gas pipeline
  • Boiler and head exchanger fabricating
  • Pharmaceutical industry
  • Nuclear power industry
  • Steel pipe construction and other industries

Inner expend pipe beveling machine able to process the end of pipeline of various specifications, also can cut the pressure vessel, flange surface, installation and operation are very easy. It is can cut and bevel carbon steel or stainless steel as well as alloy steel.




Features:

  • Cold Machining without heat effect and no change of performance of metal
  • Expend tube type positioning and “Y” structure
  • Varity of beveling shape: U, Single-V, double-V, J beveling
  • Work Range from 60mm-820mm
  • Can be dive by Electricity or Pneumatic
  • Customized machine is acceptable



Specificaiton:

Model (ID mm) Wall Thickness(mm) Rated Power(kw) Rotation Speed (rpm)
Electric Pneumatic
ISY-150 TCM-150 Ф60-170 ≤15 1.43 30
ISY-250 TCM-250 Ф80-240 ≤15 1.43 16
ISY-351 TCM-351 Ф150-330 ≤15 1.43 10
ISY-630 TCM-630 Ф300-600 ≤15 1.43 8
ISY-850 TCM-850 Ф600-820 ≤15 2.0 7





Powre Supply



Electric

Convenient power supply

Stable Performance

Popular choice

Electric requirement: 220-230V 1PH 50/60HZ

Power: 1.43KW, . 2.0KW





Bevel angle and Tool Degree



  • Pipe end beveling
  • Tube end inner beveling
  • Tube end facing cut
  • Tube inner repair
  • Hole boring



ID Range 80-240mm Boiler Tube Beveling Machine 0-37 Degree Bevel Angle Cut 0







Detailed Pictures

ID Range 80-240mm Boiler Tube Beveling Machine 0-37 Degree Bevel Angle Cut 1

                            Tube beveling Machine Cutter



ID Range 80-240mm Boiler Tube Beveling Machine 0-37 Degree Bevel Angle Cut 2

              Detailed of Pipe Beveling Machine
