FCAW Orbital Automatic Pipe Welder / Auto Welding Machine For Pipe MAX315 A
Product Details
| Name: | Orbital Welding Machine | Model: | OTH-50 |
|---|---|---|---|
| Application: | Pipe TIG/GTAW Automatic Welding | Input Power: | 380V-440V |
| Out Put: | MAX315 A | Type Of Weld: | TIG With Wire Feeding |
| Pipe OD: | Φ50-168mm | Welding Head Weight: | 8Kg |
| Highlight |
FCAW Orbital Pipe Welding,MAX315A OBT-315 Power Source,Automatic Orbital Pipe Welder |
||
Product Description
FCAW Steel Pipe Welding Machine Steel Pipe Welding Machine
Weld Head Model: OTH-50
Welding Power Source Model: OBT-315
Application:
Tube dia Range:Φ50-168mm

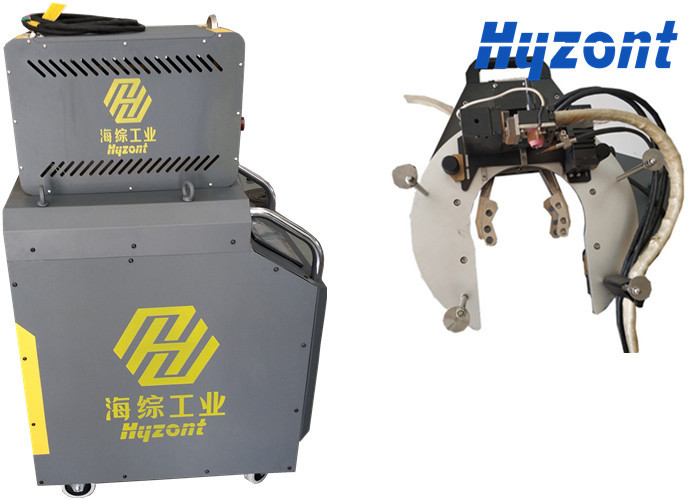

This automatic tube welding machine comprises an OBT-315 TIG welding power source and an OTH-130 open welding head, suitable for medium-wall carbon steel and stainless steel pipe welding. Its compact structure is easy to use on site, delivering good weld surface quality and fast welding speed.
Features :
- Automatic all position TIG pipe to pipe welding with/without wire feeding
- Compact structure design, stable rotation with small rotating inertia
- Oscillation, multi-passes welding process
- Suitable for connection of tube to tube, tube to flange, tube to elbow, tube to valve
- Water circuit cooling, achieving long time working
- This machine is modular in design, compact in design and compact in structure.
- The main components are aluminum structure and stepless adjustable clamp to fix the pipe diameter.
- Gapless gear transmission structure design with automatic AVC
Specification
| Model | MWA-315A |
| Welding source | Panasonic YC-315TX |
| Power source type | Inverter |
| Welding Current | 5-315A |
| Duty Cycle | 315A/60%；250A/95% ；244A 100 % |
| Input Voltage | AC380V ± 10 % 50/ 60 Hz |
| Total Power | 8.3KVA |
| Cooling | Build-in Water Cooling System |
| Display | 7" touch screen |
| Programs Storage | 80 |
| Insulation Grade | F |
| Protection Class | IP21 |
| Weight | 120KG |
| Dimension | 740*520*910 |
| Control Function |
Argon gas control Continuous welding current and pulse current control Welding head rotation control Wire feeding control AVC control with on/off function for manual adjustments |
Detailed Pictures
Size of OTH-130 Welding Head
