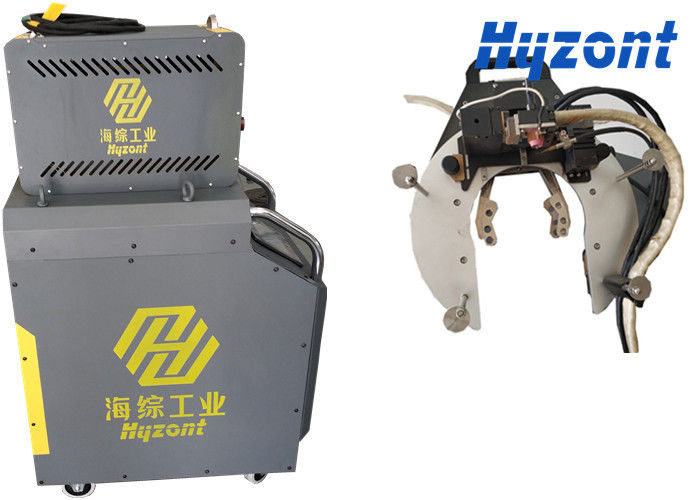

High Precision Automatic Tube Welding Machine
Product Details
| Name: | Orbital Welding Machine | Model: | MWG-170 |
|---|---|---|---|
| Application: | Pipe TIG/GTAW Automatic Welding | Input Power: | 380V-440V |
| Out Put: | 400Amp | Type Of Weld: | TIG With Wire Feeding |
| Pipe OD: | 63-168mm | Welding Head Weight: | 8-12Kg |
| Highlight |
MWG-170 Automatic Tube Welder,380V-440V Orbital Pipe Welding,High Precision Orbital Tube Welding |
||
Product Description
High Precision Automatic Tube Welding Machine With Orbital Head 380V-440V pipe orbital auto welder
Machine Quick Details:
- Equipment adopts standard modular design,easyreplacement of spare parts, low cost;
- With speed feedback function,make weldingtongs rotation more accurate and stableto-achieve perfect welding quality;
- With automatic arc length and ateral oscillation-function, to meet the welding of pipe fittings ofdif-ferent sizes;
- Welding tongs is water cooled by circulation,hightemporary load ratelong time continuousworkstable and reliable no heat;
- Under the same conditions,with different pipedi-ameters, only need to input pipe diameterswithout adjusting the welding parameters can beweld-ed;
- Welding tongs adopts hafer clamps,which canbeadjusted according to the diameter of the pipe.sothat the welding tongs firmly locks the pipe fit-ting.
Welding head Quick details:
- Automatic all position TIG pipe to pipe welding with/without wire feeding
- Compact structure design, stable rotation with small rotating inertia
- Oscillation, multi-passes welding process
- Suitable for connection of tube to tube, tube to flange, tube to elbow, tube to valve
- Water circuit cooling, achieving long time working
- This machine is modular in design, compact in design and compact in structure.
- The main components are aluminum structure and stepless adjustable clamp to fix the pipe diameter.
- Gapless gear transmission structure design with automatic AVC
| Model | MWG-90 | MWG-170 | MWG-230 | MWG-325 |
| Pipe OD | 20-89 | 63-168 | 130-230 | 159-325 |
| Thickness | 1-10 | 2-10 | 2-10 | 2-10 |
| Welding | plused argon arc welding | |||
| Welding Head Cooling | Yes | |||
| Welding wire feeding | Yes | |||
| Welding Power Supply | 400Amp | |||
| Tungsten electrode Dia | 2.4 | |||
| Model | MWA-400A |
| Welding source | TIG 400 |
| Power source type | Inverter |
| Welding Current | 5-400A |
| Duty Cycle | 400 A/60%；250A/95% ；244A 100 % |
| Input Voltage | AC380V ± 10 % 50/ 60 Hz |
| Total Power | 8.3KVA |
| Cooling | Build-in Water Cooling System |
| Display | 10" touch screen |
| Programs Storage | 80 |
| Insulation Grade | F |
| Protection Class | IP21 |
| Weight | 120KG |
| Dimension | 740*520*910 |
| Control Function |
Argon gas control Continuous welding current and pulse current control Welding head rotation control Wire feeding control AVC control with on/off function for manual adjustments |
