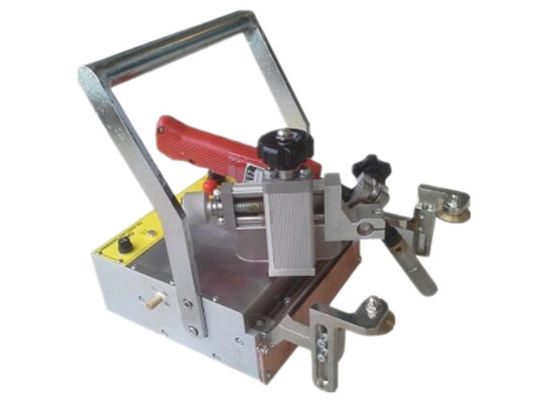

Non Blind Angle Portable Welding Carriages Tough Working Condition 220V
Product Details
| Name: | Non-Blind Angle Conner Seam Automatic Welding Carriage | Model: | GR16 |
|---|---|---|---|
| Application: | Flat Fillet Welding | Power Supply: | 220V |
| Free Running Power Supply: | Self-charging Bettery | Size: | 200*300*170mm |
| Weight: | 7KG | Dirve: | 4 Rubber Rim Wheel |
| Highlight |
Non Blind Angle Carriage,GR16 Tough Condition Welder,220V Portable Trolley |
||
Product Description
Non-Blind angle Corner seam Automatic welding carriage MIG/MAG welding torch tractor
Model: GR16
Applications:
Non-Blind angle Corner seam Automatic welding carriage
Flat fillet welding
Features:
- Robust switch gear for tough working conditions
- Starts automatically with the arc
- Torch can be positioned on the side or in the middle - no blind angle when welding
- Torch clip designed for various torches
- 220V power supply safely converts to 24V DC
Specification
| Weight | 8 kg | |
| Power | 30 W | |
| Power source | AC 220V | |
| Magnetic Force | 15-25 kg | |
| Speed of travel | 50-800 mm/min | |
| Adjustable range of the torch | Up and down | 40-60 mm |
| Front and back | 40-60 mm | |
| Working angle range | ±90° | |
| Moving angle range | ±15° | |
Picking List
|
Name |
Qty(EA) |
|
GR16 Welding Carriage |
1 |
|
Welding Torch adjuster |
|
|
Lifting Handle |
|
|
Connection wire |
|
|
Allen Key |
|
|
User Manual |
