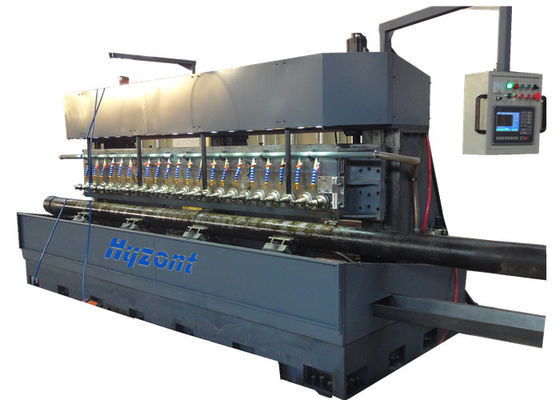

Stable 7" Oil Pipe Slotting Machine With Unique Hydraulic Clamping System

Description
Name: Slotted Liner CNC Saw Cutting Machine(CNC Pipe Slotting Machine) Model: PSM-220
Application: Oil Well Or Water Well Slotted Liner Fabricating Tube OD: Φ60-Φ177.8mm
Wall Thickness: 1-12mm Spindle: 22 Or 16
Slots Width: 0.3-3mm Max Saw Blade Diameter: 76mm
Highlight:

Hydraulic Clamping Slotter

,

7 Inch Oil Pipe Slotting

,

Stable PSM-220 Machine

22 Spindles pipe mill machine Pipe Slotting Machine 7" oil tubing cutting Machine

Model: PSM-220

Applications

Our slotting machines are designed to handle pipe sizes up to 7-12 inches in diameter and can manufacture lengths up to 46 feet at one time. This extremely rigid and stable equipment enables the pipe to be milled to precise tolerances, producing clean openings and consistent slot widths and lengths. A distinctive hydraulic clamping system secures and straightens the casing without damaging the pipe or slots. Special high speed steel circular saws cut the slots. Continuous application of coolant maintains the pipe's metallurgical integrity. No excess metal is removed and maximum pipe strength is assured while staying within a specified open area. All slotting machines are fitted with CNC indexing systems which ensures slots are placed exactly on the tubulars both radially and axially. This ensures that all specifications are achieved and maximum strength is maintained for installation.

Features

  • Pipe Rotation index and positioning system holds the pipes steady and straight
  • 4 times faster than laser cutting
  • No heat effect on slots
  • Total 22 Spindles considerable advancements in cutting efficiency
  • Computer controlled easy to use
  • With or without tube feetding system reduce the initial investent
  • Customizable on tube or casing size

    • Specification

    Spindle BoxPipe OD60-177.8 mm
    Spindle Number22
    Spindle center distance152.4 mm
    Max milling cutter diameter75 mm
    Saw cutter amount on one spindle1-4
    Straight Slotting width0.3-3 mm
    Spindle Rotation speed100-800 r/min
    Main Motor Power2×11 kW
    Spindle up and down stroke200 mm
    Z axis servo motor power/Torque2 x 1.5 kW/4.77 Nm
    Z axis max moving speed2000 mm/min
    Z axis accuracy0.5 mm/r
    Pipe Rotation index positioning systemA axis servo motor power/Torque1 kW/4.77 Nm
    A axis max rotation speed20R/Min
    A axis rotation accuracy6.279degree/r
    X axis servo motor power1 kW/4.77 Nm
    X axis Max rotation speed8000 mm/min
    X axis max rotation accuracy11.3 mm/r
    Rail length14000 mm
    Pipe moving stroke12000 mm
    Pneumatic system Compressed air pressure>0.5 MPa
    Cooling SystemCoolingliquid coolant
    Cutting Compound pump flow200L/min
    Cutting Compound pump power2 x 0.45 kW
    Electrical systemControllerPLC
    CNC axis number4
    Total Power32 kW
    Machine Body SizeL x W x H(mm)4300x1800x2550
    Pipe feeder system Rail Length12000 mm
    Gross WeightApprox 14ton

    Detailed Pictures

    PSM-220 CNC pipe Slotting Machine Inside view of Slotted Liner

    Order information

    Order CodePSM-220
    PackingN/A
    Packing SizeN/A
    Packing Weight14000Kg
    Delivery Time70 Days after payment

    CNC Pipe Slotting Machine PSM-220 Youtube Video Link: https://www.youtube.com/watch?v=sm_vTdOgPBU
