Tungsten Electrode Grinding Machine CNC Laser Cutting Machine 580W 220V AC
Product Details
| Highlight |

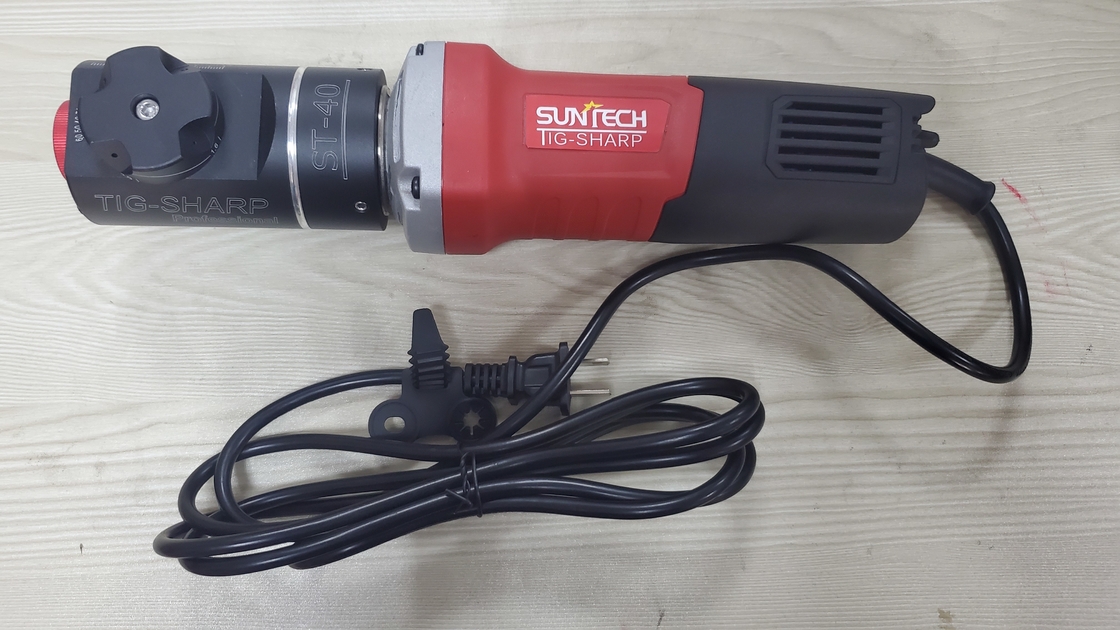

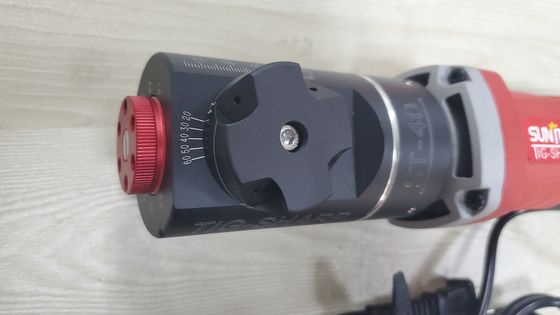

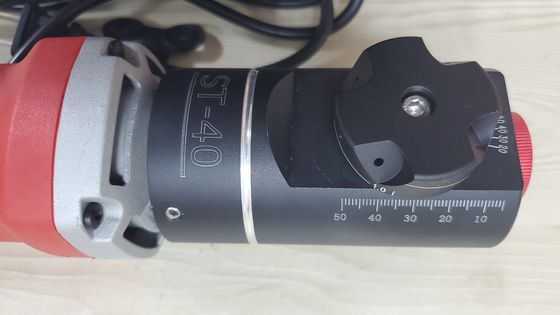

SUNTECH ST-40 Tungsten Grinder,580W 220V AC Grinding,Tungsten Electrode Sharpening |
||
|---|---|---|---|
Product Description
|
|
220 V AC 50-60 Hz Option: 110 V AC 50-60 Hz |
|
|
580 W |
|
|
2 Meters |
|
|
30000 r/min |
|
|
No load 10 min Air Temperature +20ºC |
|
90 DB |
|
|
1.80 kg |
ST-40 is mainly for Tungsten needle grinding and milling to improve the welding quality.
Applications:
|
|
1.0/1.6 /2.0 /2.4 /3.2 /4.0 /6.0 |
|
|
1.6 /2.0 /2.4 /3.2 /4.0 |
|
|
20-60 Degree Step-less adjustment |
In TIG and plasma welding process, the forming of the ends of the tungsten which used as the electrode has a direct significan't impact on the quality of welding.
Good ends forming can ensure the stability of the arc.Welding quality is good and efficiency is high without replacing or grinding the tungsten needle frequently. Otherwise, it will cause the instability of the arc and welding defects, at the same time,
It use more tungsten needles and need to replace them frequently and the efficiency is low.
Normally, welder grind the tungsten needle in the grinding wheel, but grinding wheel particles are big and coarse. if use manual operation, it is difficult to ensure the forming of the tungsten ends, and tungsten are heavy metals, if human inhaled, it can cause personal injury.
The new ST-40 environmental portable tungsten grinding machine is the professional tool for automatically grinding, flattening and cutting tungsten. All the operation dust will be sealed in the cavity, and it will not be inhaled by human. And it is easy to carry and operate, it is an indispensable tool for welders.
Specific characters of the Tungsten electrode grinding machine ST-40 embodied in:
High accurate of tungsten surface: Diamond grinding plate can extend tungsten life, improve the arc quality and achieve the stable arc.
Multi-function of the Grinding head: Its flat head and function of cutting tungsten
Grinding holes of the Tungsten grinding machine has a wide range of applications: Design of two grinding head offers eight different electrode diameter precision grinding.
Environmental Design of the tungsten grinding machine: electrode clamp can make the precise taper grinding and angle longitudina.
4. Packaging & Delivery
Single package size: 40 x 20 x 17 cmSingle gross weight: 2.5 kg
Package Type: Machine in box packed or stabled in wooden case
