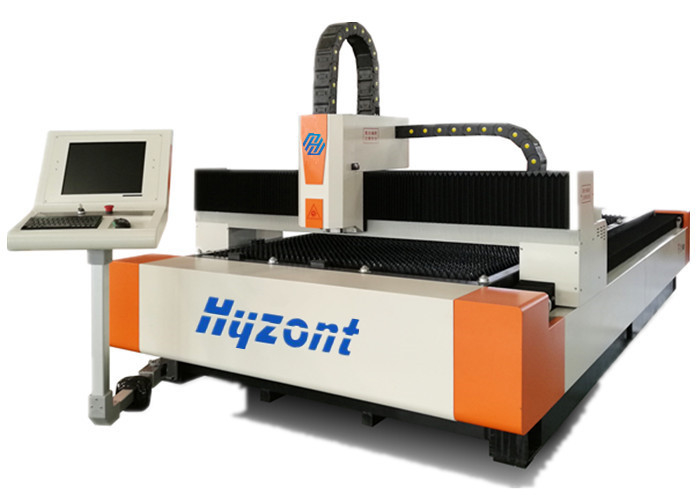

AC380V / 50Hz CNC Fiber Laser Cutting Machine 500W - 6000W CNC Fiber Laser Cutter
Product Details
| X-axis Stroke: | 3000mm | Repeat Positioning Accuracy: | ±0.02mm |
|---|---|---|---|
| Cutting Accuracy: | High Accuracy | Power Supply: | AC380V/50Hz |
| Weight: | 3000KG | Working Temperature: | 0-45℃ |
| Y-axis Stroke: | 1500mm | Z-axis Stroke: | 120mm |
| Highlight |
AC380V 50Hz Power Supply,500W-6000W CNC Fiber Cutter,Plus or Minus 0.02mm Repeat |
||
Product Description
Product Description:
CNC Fiber Laser Cutting Machine is a metal plate laser cutting device with a 3000 W fiber laser source. It is made in China and has a Z-axis stroke of 120 mm, Y-axis stroke of 1500 mm, a working environment of dry and dust-free, a weight of 3000 kg and a working temperature of 0-45°C. Its advanced fiber laser technology enables it to cut intricate designs in a variety of metal plates with superior speed and precision. The machine also features a user-friendly interface, compact design and high efficiency that make it ideal for cutting metal plates of various sizes and shapes. It is widely used in various industries such as automotive, aerospace, construction and more. With its excellent performance and reliability, CNC Fiber Laser Cutting Machine is the perfect choice for any metal plate laser cutting needs.
Features:
Technical Parameters:
| Attribute | Parameter |
|---|---|
| Working environment | Dry and Dust-free |
| Y-axis stroke | 1500 mm |
| Control system | CNC System |
| Laser power | 500 W-6000 W |
| X-axis stroke | 3000 mm |
| Working temperature | 0-45°C |
| Positioning accuracy | ±0.03 mm |
| Z-axis stroke | 120 mm |
| Weight | 3000 kg |
| Cutting accuracy | High Accuracy |
Applications:
Hyzont’s TF-3015 CNC fiber laser cutting machine is well-suited for many applications and scenarios. It is a 3000 W fiber laser cutting machine that is equipped with MAX fiber laser power source, which allows for a high-precision, quality and efficient cutting. It ensures positioning accuracy of ±0.03 mm and cutting accuracy of high accuracy. It is suitable for cutting various materials, such as stainless steel, carbon steel, alloy steel, aluminum, brass, galvanized sheet and other metal sheets. It can cut up to a maximum thickness of 20 mm, with a Z-axis stroke of 120 mm, and laser power ranging from 500 W to 6000 W.
Product Highlights
Product Description: CNC Fiber Laser Cutting Machine is a metal plate laser cutting device with a 3000 W fiber laser source. It is made in China and has a Z-axis stroke of 120 mm, Y-axis stroke of 1500 mm, a working environment of dry and dust-free, a weight of 3000 kg and a working temperature of 0...
