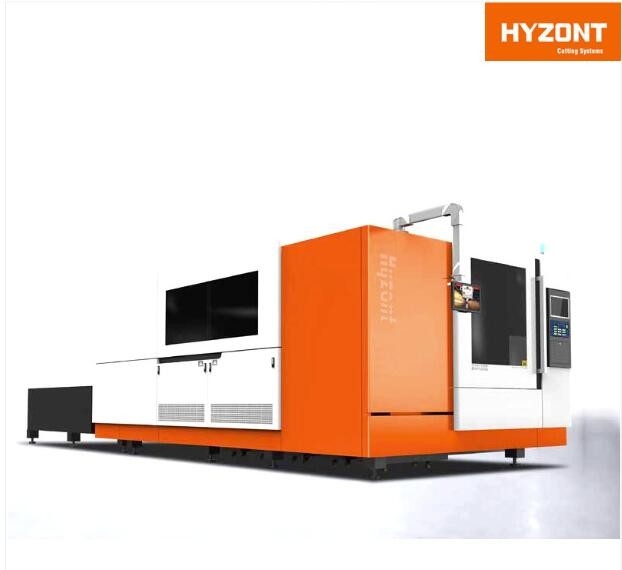

Full Cover Metal Sheet SS Plate Cutting Machine 60m/Min Energy Saving
  • Full Cover Metal Sheet SS Plate Cutting Machine 60m/Min Energy Saving
  • Full Cover Metal Sheet SS Plate Cutting Machine 60m/Min Energy Saving
  • Full Cover Metal Sheet SS Plate Cutting Machine 60m/Min Energy Saving
  • Full Cover Metal Sheet SS Plate Cutting Machine 60m/Min Energy Saving
  • Full Cover Metal Sheet SS Plate Cutting Machine 60m/Min Energy Saving

Full Cover Metal Sheet SS Plate Cutting Machine 60m/Min Energy Saving

Place of Origin Shanghai
Brand Name Hyzont
Certification CE
Model Number TF-3015EDGE
Product Details
Name:
Fiber Laser Cutting Machine
Voltage:
220V
Condition:
New
Model:
TF-3015EDGE
Certification:
CE
Brand:
Hyzont
High Light:

30KW SS Plate Cutting Machine

,

SS Plate Cutting Machine 60m/Min

,

1080nm SS Plate Cutting Machine

Payment & Shipping Terms
Minimum Order Quantity
1sets
Packaging Details
wooden case
Delivery Time
25 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
100 sets / Month
Product Description

Full Cover Fiber Laser Cutting Machine with exchange platform





Product Description

1. High perfeomance. Fiber transmission can make sure the same quality cutting effect in every point of the material;

2. High efficiency. Fast cutting speed, photoelectric conversion rate is about 35%(CO2 photoelectric conversion rate is about 7%);

3. Low gas consumption. It has the cutting technology specially for steel board and produce no gas when cutting.

4. Low power consumption. Environment-friendly and energy-saving, low power consumotion(reduce 20%-30% power compared with CO2 laser cutting machine);

5. Maintenance free. Fiber transmission without reflection lens, can save time in light path adjustment.

6. Fiber exerts its features better in thin metal sheet cutting. Such as 1mm stainless steel, its cutting speed reach 12m/min. While 2mm stainless steel cutting speed readuce to 3.5m/min. The thicker metal sheet, the lower of the machine efficiency.



Specification
Model TF-3015EDGE
Working Area 3000mm*1500mm
Laser Power

1000W-1500W-2000W- 3000W- 4000W-6000W

8000W-12000W-15000W-20000W-25000W-30000W

Laser Wavelength 1060nm-1080nm
Cutting Speed 0-60m/min
Gross Power 20KW-30KW
Cutting Thickness 14mm/18mm/20mm/24mm
Positioning Accuracy ±0.03mm/m
Reposition Accuracy ±0.02mm/m
Max Velocity of Movement 140 m/min
Cooling Mode Water Cooling
Supply Power

3 phase 380V/50HZ   20KVA-30KVA

Application Materials Sheet Metal
