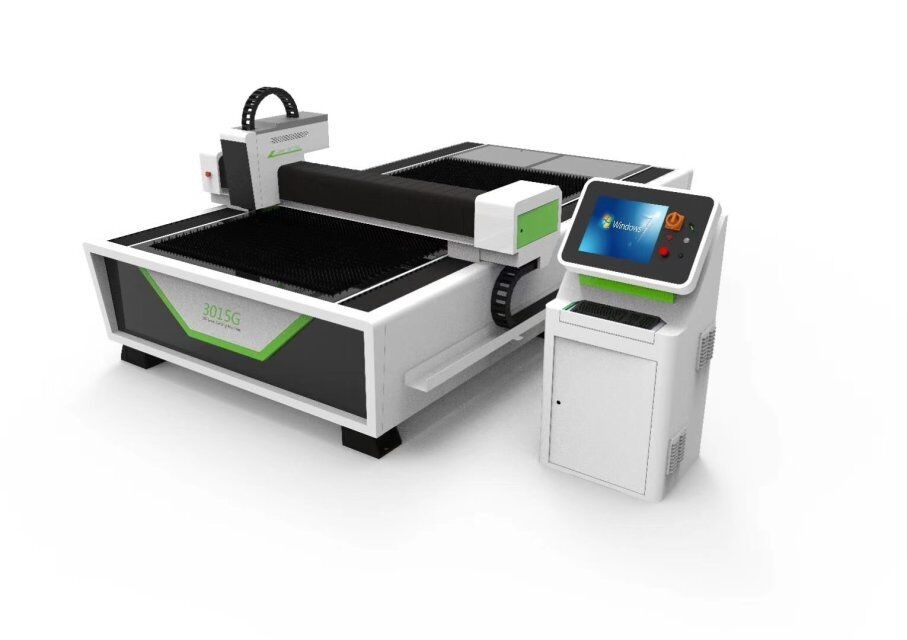

1500*3000mm CNC Fiber Laser Cutting Machine 60m/Min For Metal Sheet
Product Details
| Name: | CNC Plate Cutting Machine | Voltage: | 220V |
|---|---|---|---|
| Condition: | New | Model: | TF-3015G |
| Certification: | CE | Brand: | Hyzont |
| Highlight |
60m per Minute Sheet Cutting,TF-3015G 1500x3000mm,Metal Sheet Fiber CNC |
||
Product Description
1. High perfeomance. Fiber transmission can make sure the same quality cutting effect in every point of the material;
2. High efficiency. Fast cutting speed, photoelectric conversion rate is about 35%(CO2 photoelectric conversion rate is about 7%);
3. Low gas consumption. It has the cutting technology specially for steel board and produce no gas when cutting.
4. Low power consumption. Environment-friendly and energy-saving, low power consumotion(reduce 20%-30% power compared with CO2 laser cutting machine);
5. Maintenance free. Fiber transmission without reflection lens, can save time in light path adjustment.
6. Fiber exerts its features better in thin metal sheet cutting. Such as 1 mm stainless steel, its cutting speed reach 12 m/min. While 2 mm stainless steel cutting speed readuce to 3.5 m/min. The thicker metal sheet, the lower of the machine efficiency.
Specification| Model | TF-3015G |
| Working Area | 3000 mm x 1500 mm |
| Laser Power |
1000 W-1500 W-2000 W- 3000 W- 4000 W-6000 W-8000 W-12000 W-15000 W-20000 W-25000 W-30000 W |
| Laser Wavelength | 1060 nm-1080 nm |
| Cutting Speed | 0-60 m/min |
| Gross Power | 20 kW-30 kW |
| Cutting Thickness | 14 mm/18 mm/20 mm/24 mm |
| Positioning Accuracy | ±0.03 mm/m |
| Reposition Accuracy | ±0.02 mm/m |
| Max Velocity of Movement | 140 m/min |
| Cooling Mode | Water Cooling |
| Supply Power |
3 phase 380 V/50 Hz 20KVA-30KVA |
| Application Materials | Sheet Metal |
