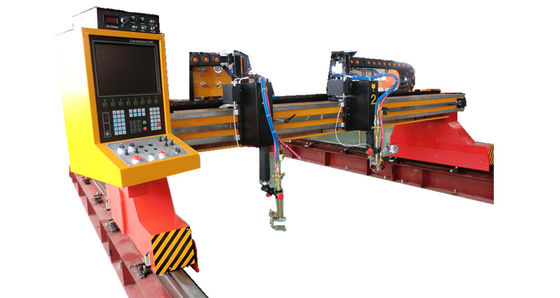

Heavy duty Gantry type CNC plasma cutting machine for sale
Steel hollow beam design ensures good heat dissipation without deformation;
Box weldment structure process tempering ensures excellent rigidity and intensity;
Double drive adopts symmetrical structure.
Transmission
The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed;
Gear box: SEW, high output torsion low noise.
1 Brand: TAYOR
2 Model: CNCSG3000
3 Specification
| NO | Descriptions | Specification |
| 1 | Track Width (mm) | 2000 |
| Rail length (mm) | 6000 | |
| Effective Cutting Area(mm) | 2000x6000 | |
| Drive | Y axis Panasonic AC servo motor *2set | |
| X axis Panasonic AC servo motor *1set | ||
| Max traveling speed | 12000 mm/min | |
| 2 | Torch Moving Station |
Total Three 2 Sets of Moving Station Station 1: Oxy-fuel Torch Station 2: Plasma torch holder |
| 3 | Flame Torch |
Cutting Thickness 5-120mm Cutting Speed:50-800m/min |
| 4 | Plasma Cutting Torch Number | Hypertherm straight torch |
| Plasma Torch Height Sensor | Hypertherm THC | |
| 5 | Anti-Collision Torch Holder | TAYOR*1set |
| Plasma Cutting Speed | 50-4000mm/min | |
| 6 | Plasma source Model | Hypertherm XPR300/CoreTM |
| 7 | Hypertherm | Connect T |
| 8 | Nest Software | Australia FASTCAM (professional Ver.) |
| 9 | PLC | Delta* 1set Taiwan |
| Electric Components | Schneider | |
| Cables | CE approached cable | |
| 10 | Water tank Table | User self-made |
4 Accuracy
| Positioning Accuracy | ±0.5mm/10000mm |
| Repeatability | ≤±0.1mm |
| Speed setting error | ≤±5% |
| THC accuracy | ≤±0.5mm |
| Length of a side Error(mm) | ±0.5mm |
| Base Point Return Error | ±0.4mm |
| Intersection point Error | ±0.5mm |
| Lineation forward-reverse Error | ±0.2mm |
5 Working Conditions
|
Power Supply
Temperature Humidity Surroundings |
Machine : 220v±10%;50Hz~60Hz(Customized) Plasma System: 3×380v±10%;50Hz~60Hz(Customized) -10℃-50℃ <90% /No Condensation Ventilate, No big shake |
| Oxy-fuel cutting gas type/Quality |
Oxygen:0.5-0.8MPa Purity: 99.5%; Flow:1.0M3/Min Fuel Gas :Propane or Acetylene Pressure:0.05-0.1MPa |
| Plasma Cutting Process gases |
Plasma gas Air, O2, N2 Shield gas Air, N2 Supply gas pressure 6.2 +/- 0.7 bar (90 +/- 10 psig) |
