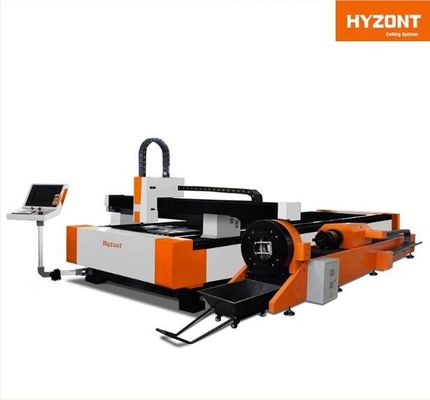

Multi-functional Fiber laser cutting machine for steel sheet and pipe cutting 500W, 1000W, 1500W, 2000W, 3000W, 4000W
► High efficiency
► Low energy requirement
► High cutting ability in all kinds of materials
► Low material consumption
► Low maintenance requirement
► High speed cutting
► High Beam quality
► Modular design
► Increase production with FlyCut and FastCut technology.
Fiber laser cutting machine advantage
1. The machine flat part construction is based on the type HTF-1530T with a drive in the form of a combination of servomotors and the system of a rack and a pinion. This system allows reaching high precision of 0.05 mm and high speed as well as allowed accelerated speed of 1.5 G. The advantages of this combination are reflected mainly in the processing of shape-demanding objects, as the work efficiency is higher by up to 40 %, compared to the M-series. The device is equipped with a fixed table with a working area sized 3,000 x 1,500 mm.
2. The other part of the machine is designed for processing sections with a length not exceeding 3,000 mm and a diameter of 150 mm. It uses an extremely precise principle of a tube laser: the material is fed through the rear chuck in a precisely controlled trolley through the front chuck as far as under the cutting head. Both the chucks of this machine version are supplied in a mechanical design.
3. The fiber laser cutting machine is controlled by two programs: CypCut - for 2D cutting, and CypCut Tube for section cutting. Source data for surface cutting are imported in the most common format .dxf, which can be generated from a variety of software programs. Data for section cutting are then loaded in the format .iges. To prepare data for section cutting, the software Solidworks is highly recommended; the manufacturer guarantees its full compatibility. We supply both the programs for laser cutting with two licenses; one is installed directly in the machine, whereas the other is intended for possible data preparation outside your device.
Sheet metal, hardware, kitchenware, electronic, automotive parts, glasses, advertising, craft, lighting, decoration, jewelry, furniture, medical device, fitness equipment, oil exploration, display shelf, farm machinery, bridge, ship, structure parts, etc.
Carbon steel, stainless steel, galvanized steel, alloy, titanium, aluminum, brass, copper, round, square, rectangular, oval, waist round tube and other metal sheets & tubes.
Laser cutting machine cutting samples
