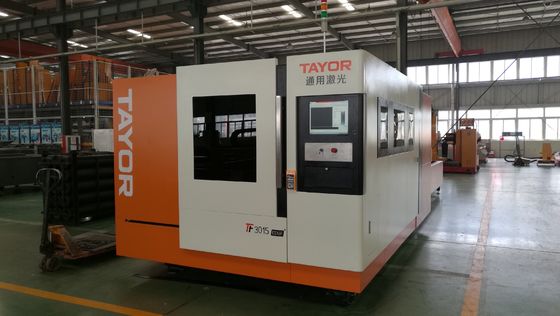

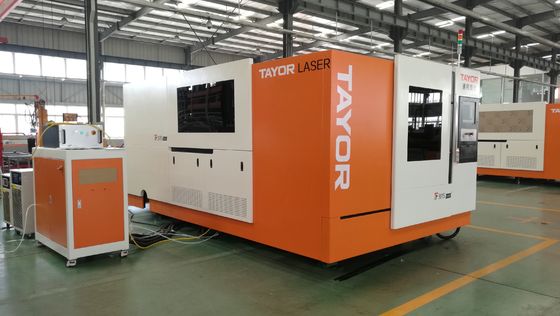

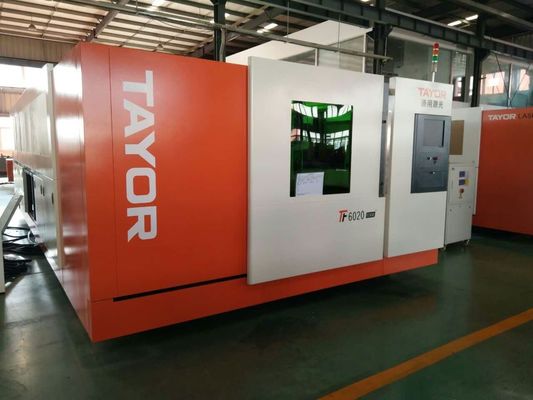

3Kw used CNC fiber laser cutting machine second hand good condition IPG fiber laser cutting machine
1 Name: CNC Fiber laser Cutting Machine
2 Model: TF3015 EDGE+- 3000W
3 Applications: Metal Plate Cutting
Advantages of fiber laser cutting machine
High quality laser beam
Smaller focus spot, good processing quality, efficient working process.
Faster Cutting Speed: Two times faster than same power CO2 laser cutting machine.
High Stability: Max 100000 hours key parts lifetime.
Energy saving and environment protection; much more electro-optical conversion efficiency up to 30% and 3 times higher than CO2 laser generator.
Much more Lower Power Consumption: 20-30% power consumption lower than CO2 laser power
Lower maintenance cost: No need laser power working gas, No need reflector.
Easy to use optical fiber laser transmission, easy to adjust optical path,
Small volume of laser power, compact structure of machine tool easy to flexible machining
4 Machine Feature
Structure: The machine tool frame structure is welded by high quality steel plate and steel tube, which have been processed by Vibratory Stress Relief and precision machining by CNC planer type milling machine.
The complete structure has the feature of excellent shake proof capacity and rigidity, stability in high speed running and high accuracy cutting.
Cross beam:Welded structure Vibration aging, light weight and excellent rigidity and dynamic performance.
Air distributing System: Air distributing System adopts centralized control, enable to automatic switch gas type and gas flow. Machine tool has build-in air control system. If client use compressed air as the cutting gas, need buying air compressor, dryer and filter.
Cutting Head: With function of automatic tracking, manual focusing, high-pressure cutting, secondary cooling nozzle. It is stable and reliable performance, easy to use. High voltage and low voltage can be cut, with the height of the non-contact automatic tracking system.
Automatic cutting height tracking system
High performance non-contact capacitance height sensor with the gas pressure≥2.5 MPa, has higher tracking accuracy and stability in the process of cutting stainless steel plate, and which can be directly cutting with plastic film.
Enough cooling to all key components ensures the safety operation of the complete machine.
The water cooler is fully automatic controlled with laser source and running without any more operation, good safety protection, over temperature protection function, lack of phase, pressure and water, under voltage, overload protection function. Stable performance, easy to maintain, conform to the requirements of the laser and external cooling of the light path.
5 Technical Specifications
Mild Steel: 0.5-20
Stainless Steel: 0.5-12
Aluminum alloy: 0.5-10
|Laser cutting accuracy(mm)||0.1-0.2|
|Machine Tool repositioning accuracy(mm)||±0.02|
|Machine Tool accuracy(mm)||±0.03|
|Max Moving Speed(m/min)||80|
|Accelerated speed (G)||0.8|
|Laser Power (w)||3000W|
|Total Power (Kw)||30|
|Cutting Table||Auto exchange pallet table|
|protective cover||Full protective cover|
|Exchange completion time||50sec.|
6 Key Parts List
|No||Name||Brand||Place of Origin||Qty(set)|
|1||Fiber Laser Source||
|2||Laser Cutting Head||RAYTOOLS||Switzerland||1|
|3||Machine Tool Body||TAYOR||China||1|
|7||X axis gear and rack||YYC||TAIWAN||1|
|8||Y axis gear and rack||YYC||TAIWAN||1|
|9||Z axis screw rod||HIWIN||TAIWAN||1|
|9||Linear guide rail||HIWIN||TAIWAN||1|
|11||Water Cooling Machine||TONGFEI||CHINA||1|
|13||CNC Controller and Torch sensor||Cypcut||China||1|
|14||AC SERVO MOTOR AND RRIVER||YASKAWA||JAPAN||1|
|17||Fume exhausting fan||TAYOR||China||1|
|19||50KVA Voltage Stabilizer||DELIXI||China||1|
7 Working Conditions
|2||Water Supply||Cooling water||Distilled water|
|Air||Working Pressure 1.25MPa|
|Flow rate 1.3m³/min|
|Humidity||Less than 70%|
|Foundation||Field level and no strong Vibrations surrounded|
8 CNC Controller
Supports AI, DXF, PLT, Gerber and other graphic data formats, and accept the international standard G code generated by Mater Cam, Type3 and other software.
l To conduct automatic optimization when opening / importing DXF and other external files, including: to remove repetitive lines, merger connected lines, remove tiny graphics as well as automatically distinguish inside and outside dies and conduct sorting. Automatic optimization process can be defined, and the above each function can also be carried out manually.
To support common editing and typesetting functions, including: zooming in and zooming
out, rotation, alignment, copying, combination, smoothness and connection and so on.
To use the easiest way to set the lead, slotted compensation, micro connection, bridge
connection, over cut, lead seal gap and so on.
To distinguish the overcast cut and yang cut, determine the direction of slotted
compensation in accordance with the overcast cut and yang cut, and check the led.
To support curve splitting and connection, curve smoothness, text-to-curve, component
integration and exploding.
With Flexible automatic sorting and manual sorting functions, to support the function to
fix the processing order through group.
With particular browsing capabilities of processing order, to check the processing order in
a more interactive way than that of imitation.
To support poly punching and incremental punching, pre-punching. To support the
settings of separate laser power, frequency, laser form, type of gas, air pressure and
following height for punching process and cutting process.
To support the speed capacity control and set separate lead velocity.
With Powerful material library functions, to keep all processing parameters so that it can be
provided again for the same material.
With processing breakpoint memory, to trace the breakpoint forwards and backwards; to
process some graphics.
To be able to be positioned to any point in the process of stop or temporary stop; to start
processing from any position.
The same set of software supports round pipe cutting and plane cutting, and the way of
programming is exactly the same; to support intersecting line cutting.
To support Covercut, auto seek edge, cutter starting and cutter lifting1.
With powerful expansion capacity, as much as 15 PLC process edit and more than 30
Programmable input and output outlet, programmable alarm input2
To support the remote control of the system through wireless teachbox and Ethernet3.
9 Torch height sensor
|Max tracing speed||500mm/s|
|dynamic measurement Accuracy||0.001mm|
|Data setting input||Key board|
|Signal processing||Digital signals|
