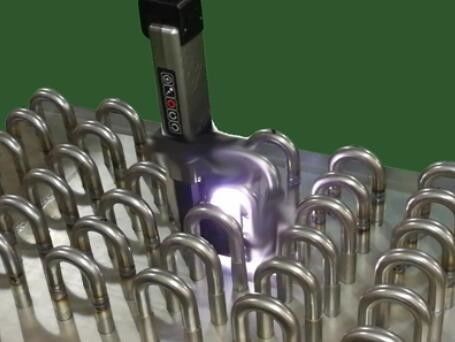

High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe

High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe
High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe
High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe

Large Image :  High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe

Product Details:
Place of Origin: China
Brand Name: Hyzont
Certification: CCC
Model Number: UFH-15
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: negotiable
Packaging Details: Flight Case
Delivery Time: 3 Days after Payment
Supply Ability: 100 Sets a month
Contact Now

High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe

Description
Name: U Tube TIG Welding Machine Model: UFH-15
Application: Stainless Steel Condenser U Tube Auto Weld Fabricating Weld Current: Max. 200A
U Tube Material: Stainless Steel U Tube Thickness: 1-3mm
Type Of Welding: TIG/GWAT (No Wire Feeding) Place Origin: China
Highlight:

Compact Head Narrow Space Welding

,

UFH-15 High Speed Tube Welder

,

Condenser Tubing Auto Welding

Orbital Welding of Condenser Tubing Automatic tube welding machine
Brand: Hyzont
Model: UFH-15
Application:

A specially designed TIG welding head for automatic welding of stainless steel condenser U-tubes, operating on the same principle as orbital welding.

  • Condenser U tube welding
  • Evaporator U tube welding
  • Heat exchanger fabricating
Features:

Customized design suitable for all types of U-tubes

Quick-install clamps for easy use

Low labor cost with high welding efficiency

Collision-free welding with reliable contact in narrow-space U-tube applications

Heat-resistant components in a compact, light and durable design

Water-circuit cooling design for long-duration operation


Specification:
ModelUFH-15
MaterialCarbon steel, Stainless Steel, Titanium Alloy
Tube FittingPlugged U tube
Welding ProcessTIG/GTAW (no wire feeding)
Tube OD(mm/inch)12.7-15.88 mm
Tube Wall Thickness(mm)3 mm
Tungsten OD(mm)1.6
Rotating360° free rotation with auto reset; all-position welding
Rotation speed(rpm)0.3-6
Protective GasArgon
CoolingWater
Cooling Flow(ml/min)1000 ml/min
Cable Length6 m
Main Dimension(mm)
Weight(kg)1 kg
Dimension(mm)377 x 38 x 100

Detailed Pictures

High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe

High Speed Automatic Tube Welding Machine Good Contact Narrow Space Pipe

Order information
Order CodeK200150-U
PackingFlight case
Packing Size520 x 400 x 200 mm
Packing Weight13 kg + 23 kg (Welding Power Source OBT-200)
Delivery Time3 Days after payment
