Quality Fiber Laser Metal Cutting Machine / Jewelry Arts CNC Tube Laser Cutting Machine factory
<
Quality Fiber Laser Metal Cutting Machine / Jewelry Arts CNC Tube Laser Cutting Machine factory
>

Fiber Laser Metal Cutting Machine / Jewelry Arts CNC Tube Laser Cutting Machine

Brand Name: Hyzont
Model Number: HL5-1502
Place of Origin: China
Certification: CCC
Minimum Order Quantity: 1 set
Price: USD
Supply Ability: 50 Set/month
Delivery Time: 30Days
Payment Terms: L/C, T/T
Standard Packaging: Wooden Case/1 20Gp Container
Tags

cnc tube laser cutting machine

fiber laser cnc machine

Product Details

Name: CNC Fiber Laser Cutting Machine Model: HL5-1502
Brand: Hyzont Cutting Area: OD50mm*550mm
Power Source: 500W/800W/1000W Controller: CyperCut
Cutting Thickness: 3mm Moving Speed: Max 40m/min
Laser Power Source: FEIBO Machine Weight: 400Kg
Highlight

HL5-1502 Tube Laser Cutting

,

Jewelry Arts Metal Cutting

,

CNC Fiber Laser Machine

Product Description

CNC Fiber Laser Cutting Machine Metal and Jewelry Arts CNC tube laser cutting machine

Model: HL5-1502

Applications:

It is suitable for cutting of round pipe and square pipe. With professional laser cutting controller and software, with automatic follow-focus system can fully follow the bending and undulating position of the workpiece during cutting to ensure the precision cutting and quality. Laser-formed parts are burr-free, black-free, and highly consistent in the same product size. Imported fiber laser source and high quality cutting head, high-precision rotary servo motor.

Features

  • Fiber laser electro-optical conversion efficiency is higher than 33%, which greatly saves power consumption during operation, saves operating costs, and achieves the highest production efficiency.
  • Fiber lasers require only electrical energy for operation with minimal operating and maintenance costs.
  • Fiber lasers do not require start-up time, have the advantages of no adjustment, maintenance-free, and high stability, reducing the cost of accessories and maintenance time.
  • Fiber laser cutting offers excellent beam quality, extremely high cutting speed, high stability and low cost of ownership.
  • Fiber laser cutting process eliminates the need for mold opening, toolless tool wear, cost savings, and the ability to quickly develop new products.
  • Fiber laser cutting is flexible and easy to process, and can perform any workpiece with complex structures.
  • Fiber laser cutting process is environmentally friendly, non-toxic, clean and sanitary, and meets national environmental protection requirements.

    • Specification

    Model: HL5-1502
    Output Power 400 W/500 W/800W(customized)
    Cutting Area OD50 mm x 550 mm
    Laser Wave 1065 nm
    Cooling Water Cooling
    Max Speed 500 W/800 W/1000 W
    Max Thickness 3 mm
    Min Kerfs 0.1 mm
    Repeatability ±0.03 mm
    Controller Cycut
    Focusing Automatic
    Drive mode Gantry line servo
    power consumption ≤3.5 kW/≤4 kW/≤4.5 kW/≤6.5 kW
    Weight Approx 400 kg
    Input Power 220 V/50 Hz/30A
    floor space 1900 x 1150 x 1300 mm

    Software features:

  • The software uses high-efficiency CypCut laser cutting system CNC control software, powerful, compatible, compatible with CAD, CoreDRAW 9.0 output DXF format graphics.
  • Easy to operate, draw any two-dimensional graphics on the computer, no need to open the mold, the product can be produced immediately.
  • Powerful graphic display function, which visually shows the cutting effect and detects the cutting path in real time online.
  • Convenient and fast cutting process layout, such as adjustment, error detection, nesting, positioning, oligo, lead, layering, setting parameters, retraction, etc., very user-friendly operation mode.

    • Detailed Pictures

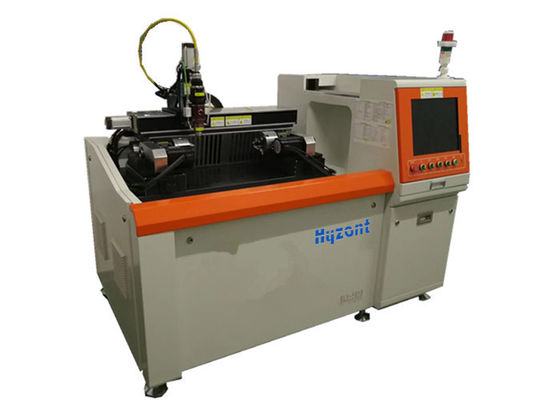

    Fiber Laser Metal Cutting Machine / Jewelry Arts CNC Tube Laser Cutting Machine

    Working of High Precision CNC Fiber Laser Cutting Machine

    Fiber Laser Metal Cutting Machine / Jewelry Arts CNC Tube Laser Cutting Machine

    Steel Tube CNC Fiber Laser Cutting Machine

    Product Highlights

    CNC Fiber Laser Cutting Machine Metal and Jewelry Arts CNC tube laser cutting machine Model: HL5-1502 Applications: It is suitable for cutting of round pipe and square pipe. With professional laser cutting controller and software, with automatic follow-focus system can fully follow the bending and ...
