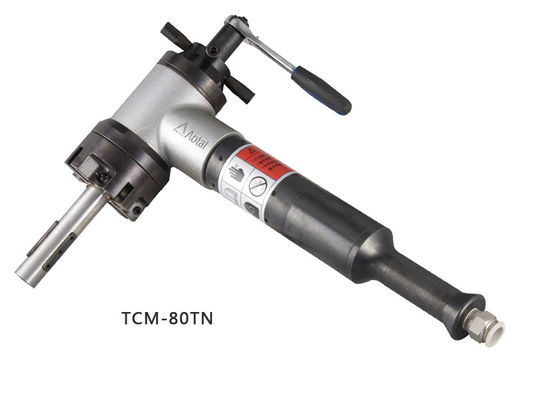

Inner Expand Type Tube Beveling Machine For Heat Exchanger Inside Beveling
Product Details
| Name: | Tube Bevel Machine | Model: | TCM-80TN |
|---|---|---|---|
| Bevel Angle: | 30degree/37 Degree | Drive: | Pneumatic |
| Tube ID Range: | Ф26-79 | ||
| Highlight |
TCM-80TN Inner Beveler,Heat Exchanger Inside Bevel,Inner Expand Tube Machine |
||
Product Description
Pneumatic Tube beveling machine 26-79 mm Inner Expand type TCM-80TN
Model: TCM-80TN
Applications:
The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.
Features:
1. Cold cutting, without influence the material of the pipe
2. ID mounted, adopt T structure
3. variety of beveling shapes: U, Single-V, double-V, J beveling
4. It can also be used for repairing inner wall and deep hole processing
5. Working range: 12.5-330 mm
6. Driven motor: Pneumatic and Electric
7. Customized machine is acceptable
Specification:
| Model |
Tube ID Range mm |
Wall thickness mm |
Motor Power kw |
Max rpm |
|
| electric tool drive | Pneumatic | ||||
| ISY-28TX | TCM-28TX | 12.5-28 | ≤3 | 0.71 | 53 |
| ISY-80T | TCM-80T | 28-76 | ≤15 | 0.90 | 53 |
| ISY-90T | TCM-90T | 36-90 | ≤15 | 1.43 | 50 |
| ISY-28TN-1 | TCM-28TN-1 | 12.5-15 | ≤3 | 1.43 | 70 |
| ISY-28TN-2 | TCM-28TN-2 | 15-20 | ≤5 | 1.43 | 70 |
| ISY-28TN-3 | TCM-28TN-3 | 20-28 | ≤6 | 1.43 | 70 |
| ISY-80TN | TCM-80TN | 26-79 | ≤15 | 1.43 | 70 |
| SDC-120T | TCM-120T | 45-105 | ≤20 | 1.43 | 34 |
| SDC-150T | TCM-150T | 65-159 | ≤20 | 1.43 | 34 |
| SDC-150TN | TCM-150TN | 60-170 | ≤20 | 1.43 | 34 |
| SDC-350T | TCM-350T | 150-330 | ≤20 | 1.43 | |
POWER SUPPLIES
Pneumatic:
Explosion Proof Stable Performance Easy to maintenance Air requirement: 1500-2000 L/min @ 0.63-0.8 MPa Power: 1.1 HP, 2 HP

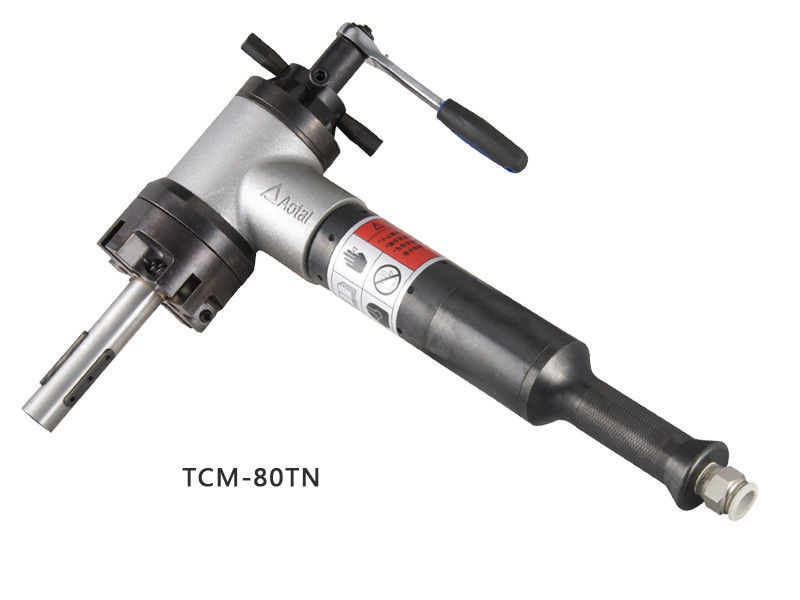

Shape of Tube bevel machine
Tube Bevel Machine
Product Highlights
Pneumatic Tube beveling machine 26-79 mm Inner Expand type TCM-80TN Model: TCM-80TN Applications: The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. Boiler Pipe end beveling Heat Exchanger Inside beveling Pipe ...
