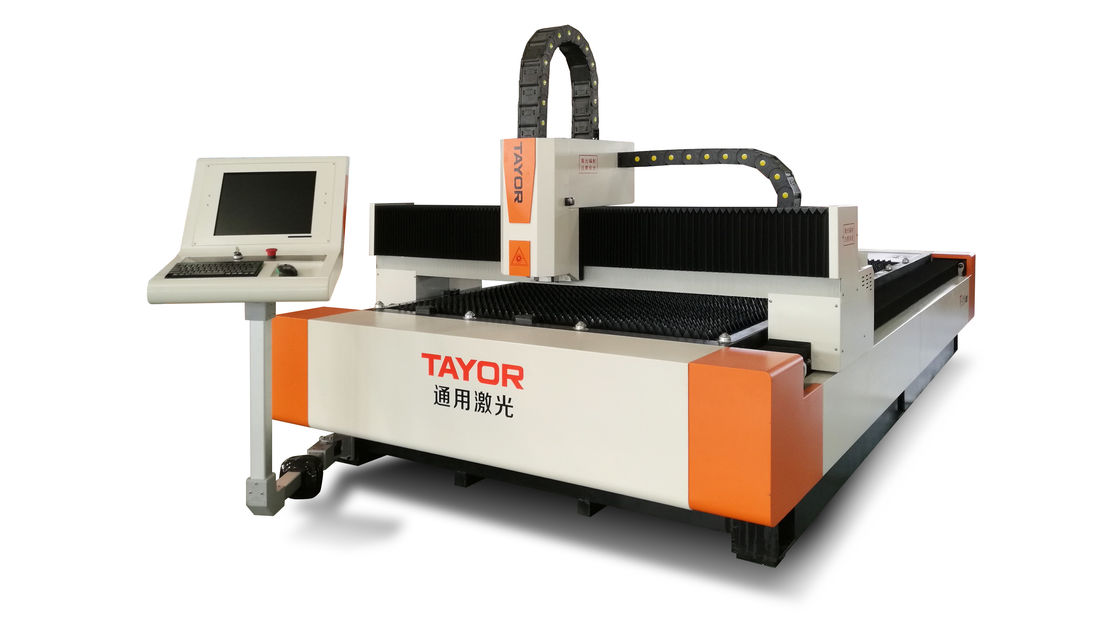

Single Table CNC Fiber Laser Cutting Machine For Electronics And Textile Industry
  • Single Table CNC Fiber Laser Cutting Machine For Electronics And Textile Industry
  • Single Table CNC Fiber Laser Cutting Machine For Electronics And Textile Industry

Single Table CNC Fiber Laser Cutting Machine For Electronics And Textile Industry

Place of Origin China
Brand Name TAYOR
Certification CCC
Model Number TF EDGE 3015-E
Product Details
Name:
CNC Fiber Laser Cutting Machine
Model:
TF EDGE 3015-E
Brand:
TAYOR
Cutting Area:
1500X3000mm
Power Source:
1000Kw
Controller:
CyperCut
Cutting Thickness:
0.5-12mm
Moving Speed:
Max 60m/min
High Light:

cnc laser cutting machine

,

cnc tube laser cutting machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD
Packaging Details
Wooden Case/1 20Gp Container
Delivery Time
30Days
Payment Terms
L/C, T/T
Supply Ability
50 Set/month
Product Description



1500X3000 Single Table CNC Fiber Laser Cutting Machine 1Kw Laser Cutting Machine





Model: TF3015 EDGE-E



Application:



Fiber lasers are the newest development in laser cutting. The laser beam is created by an active fiber and transmitted over a transport fiber to the machine cutting head. Fiber lasers are significantly smaller than CO₂ lasers and generate twice as much power from the same amount of current. A fiber cutting system is primarily suited for processing thin to medium-thick sheet metal. It also cuts non-ferrous metals (copper and brass).

CNC fiber laser cutting is are capable of processing various metal types and play an essential part in industrial and commercial activities.

This machine widely applied in

  • Medical devices
  • Jewelry
  • Automotive Industry
  • Electronics
  • Textile Industry:



Features



  • Safe and environment friendly
  • All-in-one design, easy to move and space saving
  • High performance qualified fiber source, which is high reliability and longevity of service.
  • Smooth cutting surface, little deformation, pretty leveling appearance.
  • Import transmission parts and servo motor, high dynamic movement performance, high cutting precision.

Specification



Cutting Area(mm) 1500X3000/2000X4000
X-axis (mm) 3000/4000
Y-axis(mm) 1500/2000
Z-axis(mm) 120
Cutting Thickness(mm)

Mild Steel: 0.5-12

Stainless Steel: 0.5-5

Aluminum: 0.5-4

Laser cutting accuracy(mm) 0.1-0.2
Machine Tool repositioning accuracy(mm) 0.025
Machine Tool moving accuracy(mm) 0.05
Max Moving Speed(m/min) 50
Accelerated speed (G) 1
Laser Power (w) 1Kw
Total Power (Kw) 30Kw
Machine Dimension(LxWxH) 5150*2282*1290
Weight(Ton) 3500Kg/4800Kg
Cutting Table Single Cutting Table with dust exhausting fan



Detailed Pictures

Single Table CNC Fiber Laser Cutting Machine For Electronics And Textile Industry 0



                      CNC fiber laser cutting machine Operation interface





Single Table CNC Fiber Laser Cutting Machine For Electronics And Textile Industry 1



                   1Kw Fiber Laser Cutting Machine Package and Delivery





Order information



Order Code TF3015 EDGE-E
Packing Wooden Case
Packing Size 5800*2200*1800mm
Packing Weight 4000-5000Kg
Delivery Time 25  Days after payment







TF3015 EDGE-E CNC Fiber Laser Cutting Machine Youtube Video Link:

https://www.youtube.com/watch?v=xgHAmL8MZ-E
