OBT-400A Integrated Water Cooled TIG Orbital Welding Power Source 400A IGBT Inverter
Product Details
| Model: | OBT-400 | Product Type: | Integrated Water Cooled TIG Orbital Welding Power Source |
|---|---|---|---|
| Power Supply Type: | IGBT Inverter Arc Welding Power Source | Main Power Voltage: | 3x380V |
| Welding Current: | 10A-400A | Duty Cycle: | 315A 100%; 400A 60% |
| Work Cycle: | 10min | Open Circuit Voltage: | 70V |
| Input Voltage Fluctuation: | 3x380V (-15%~+15%) | Frequency: | 50/60Hz |
| Power Rate: | 21.5KVA | Recommended Distribution Box: | 50KVA |
| Cos Phi / Efficiency: | 0.98/78% | Insulation Class: | F |
| Protection Class: | IP21 | Temperature Environment: | -10~+40 DegC |
| Storage Temperature: | -25~+55 DegC | Cooling Type: | Air Cooling |
| Display Screen: | 10-inch Touch Screen | Storable Programs: | 200 |
| Divisible Welding Section: | 8 | Water Pump Head: | 30m/0.3MPa |
| Water Tank Capacity: | 15L | Dimensions L/W/H: | 980x475x1020mm |
| Weight: | 108Kg | Manufacturing Standard: | GB15579.1-2024 |
| EMC Classification: | A | Packing Dimensions: | 900x650x1020mm |
| Gross Weight: | 137Kg | Printer: | Option |
| Highlight |
Water Cooled TIG Welding Source,400A Orbital Welding Power Source,10 Inch Touch Screen Welder |
||
Product Description

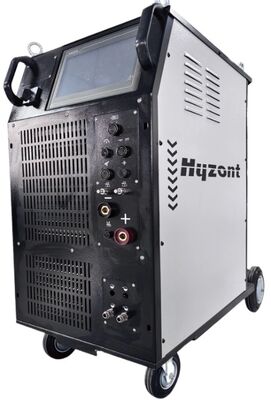

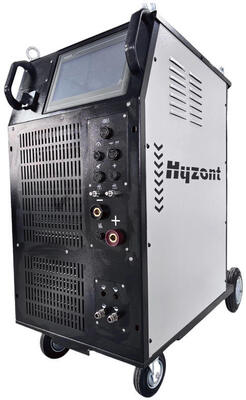

OBT-400A Integrated Water Cooled TIG Orbital Welding Power Source
The OBT-400A is an integrated water-cooled TIG orbital welding power source mainly designed for all-position tube-to-tubesheet welding. It provides precise control over current, rotation, wire feeding, weaving arc length, shielding gas and compressed air, adopting an advanced PLC control system for stable and efficient welding programming and process control.
Why Choose the OBT-400A Orbital Welding Power Source
- 400A IGBT inverter core - reliable hardware ensures welding repeatability.
- 10-inch touch screen HMI - built-in system parameters for simple programming operation.
- Chinese and English bilingual interface - operators with basic welding skills can handle it easily.
- Real-time monitoring - displays welding voltage, current and stroke, with automatic current decay function.
- Auto fault diagnosis and alarm, with modular structure design for convenient maintenance and servicing.
Power Source Specifications (OBT-400)
| Parameter | Value |
|---|---|
| Model | OBT-400 |
| Power supply type | IGBT inverter arc welding power source |
| Main power voltage | 3x380V |
| Welding current | 10A-400A |
| Duty cycle (0-40°C) | 315A 100%; 400A 60% |
| Work cycle | 10min |
| Open circuit voltage | 70V |
| Input voltage fluctuation | 3x380V (-15% ~ +15%) |
| Frequency | 50/60Hz |
| Power rate | 21.5KVA |
| Recommended distribution box | 50KVA |
| Cosφ / efficiency | 0.98 / 78% |
| Insulation class / protection class | F / IP21 |
| Temperature environment | -10°C ~ +40°C |
| Transportation and storage temperature | -25°C ~ +55°C |
| Cooling type | Air cooling |
| Display screen | 10-inch touch screen |
| Main control functions | Gas control, welding current control, rotary motion, wire feeding motion, weaving and arc length control |
| Storable programs | 200 |
| Divisible welding section | 8 |
| Printer | Option |
| Water pump head | 30m / 0.3MPa |
| Water tank capacity | 15L |
| L/W/H | 980 x 475 x 1020mm |
| Weight | 108Kg |
| Manufacturing standard | GB15579.1-2024 |
| EMC classification | A |
| Packing dimensions | Wooden case 900 x 650 x 1020mm |
| Gross weight | 137Kg |
Welding Performance Characteristics
- Carbon steel with a thickness greater than 2.5 mm welded with a V-groove: single-side groove angle ≥ 37°, misalignment less than 10% of wall thickness.
- Stainless steel with a thickness greater than 2.5 mm welded with a V-groove: single-side groove angle ≥ 45°, misalignment less than 10% of wall thickness.
- Fit-up clearance: 0-0.5 mm.
- Tack welds made in small, thin and dense spots.
- Welding mode: the pipe remains stationary while the welding torch rotates to complete welding.
- For multi-pass welding with grooved joints, AVC automatically tracks the arc length; the capping pass is completed by OSC weaving oscillation.

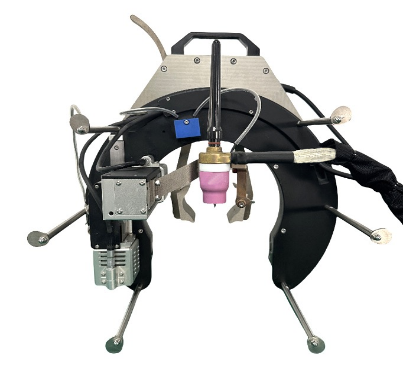

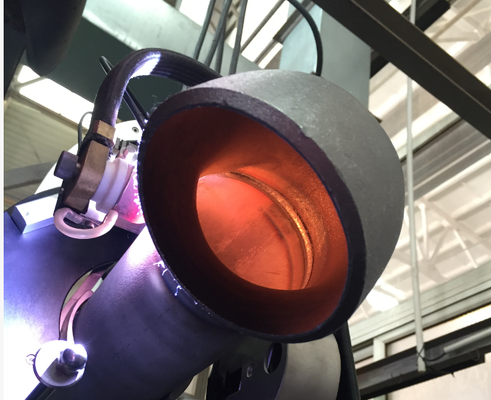

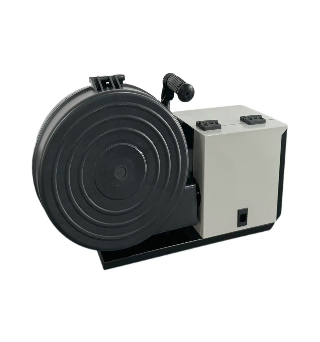

Product Images
Commercial Terms
| Item | Value |
|---|---|
| Price | Price on Request - please contact us for the latest quotation |
| Price terms | FOB Shanghai |
| Lead time | 20 days |
| Payment | 30% deposit, 70% balance prior to delivery |
| Warranty | Within 12 months of the B/L |
| Installation and commissioning | Online guidance provided; on-site commissioning by technicians available at additional cost |
Contact Us
| Item | Detail |
|---|---|
| Company | Hyzont (Shanghai) Industrial Technologies Co., Ltd. |
| Contact | Raymond Mao |
| Tel | +86-15021164313 |
| Raymond@hyzont.com | |
| Website | www.cuttingweldingmachine.com |
Please contact us for the latest price and lead time. We welcome your inquiry.
