Automatic Pipe Orbital Welding Torch HZG-76 All Position Tube to Tubesheet Weld Head
Product Details
| Model: | HZG-76 | Product Type: | Automatic Pipe Orbital Welding Torch |
|---|---|---|---|
| Pipe Diameter Range: | 19-76mm | Dimension A: | 125mm |
| Dimension B: | 35mm | Dimension C: | 134mm |
| Dimension D: | 82mm | Dimension F: | 123.3mm |
| Body Material: | Aluminium Alloy | Clamping: | Caliper-type Stepless Adjustment |
| Transmission: | Backlash-free Gear Transmission | Cooling: | Circulating Water Cooling |
| Welding Mode: | Pipe Stationary, Torch Rotates | Weaving: | Electric Weaving And Arc Length Oscillation |
| Welding Method: | Autogenous Welding And Wire Feeding Welding | Wire Dia: | 0.8/1.0/1.2mm |
| Wire Feeder Size: | 615x400x245mm | Wire Feeder Weight: | 14Kg |
| Fit-up Clearance: | 0-0.5mm | Carbon Steel Groove Angle: | >=37deg (thickness>2.5mm) |
| Stainless Steel Groove Angle: | >=45deg (thickness>2.5mm) | Application: | Pipe To Pipe, Pipe To Elbow, Tube To Tubesheet Joints |
| Highlight |
All Position Orbital Welding Torch,Tube to Tubesheet Welding Head,19-76mm Pipe Welding Torch |
||
Product Description

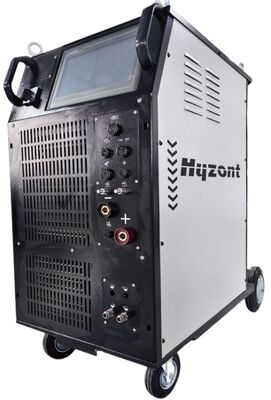

HZG-76 Automatic Pipe Orbital Welding Torch

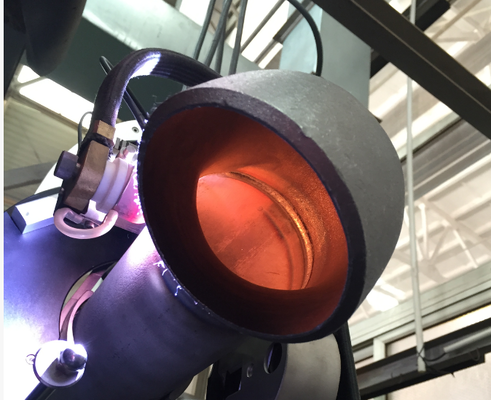

The HZG-76 is an all-position tube-to-tubesheet automatic orbital welding torch designed for medium and thick-wall carbon steel and stainless steel pipes from 19mm to 76mm. The pipe stays stationary while the torch rotates, so it is widely applied to on-site installation of pipe-to-pipe and pipe-to-elbow joints.
Why Choose the HZG-76 Orbital Welding Torch

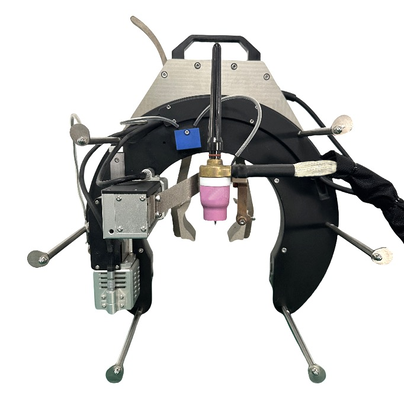

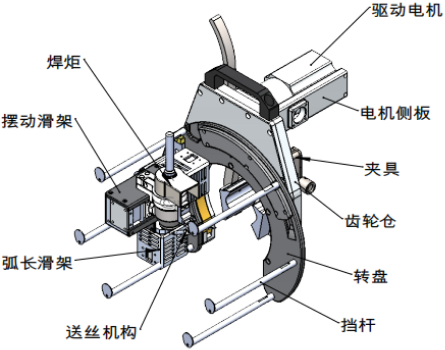

- Three core modules - rotation system, clamp device and transmission system make up a compact, stable welding head.
- Light aluminium alloy body with caliper clamp - stepless adjustment adapts to different pipe diameters.
- Backlash-free gear transmission - stable rotation and low moment of inertia, no jamming even under high-temperature conditions.
- Electric weaving and arc length oscillation - meets multi-pass welding process requirements, with AVC auto arc length tracking and OSC capping.
- Circulating water cooled torch - supports long-time continuous operation; works for both autogenous welding and wire feeding welding.

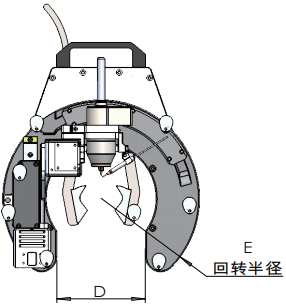

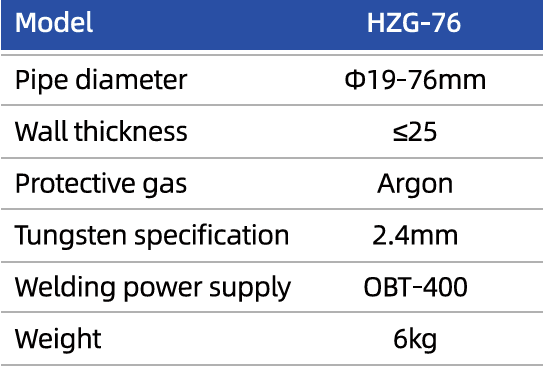

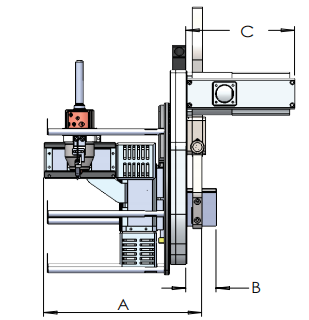

Welding Head Parameters (HZG-76)
| Item | Value |
|---|---|
| Model | HZG-76 |
| Pipe diameter range | 19-76mm |
| A | 125mm |
| B | 35mm |
| C | 134mm |
| D | 82mm |
| F | 123.3mm |
| Body material | Aluminium alloy, light weight |
| Clamping | Caliper-type, stepless adjustment |
| Transmission | Backlash-free gear transmission |
| Cooling | Circulating water cooling torch |

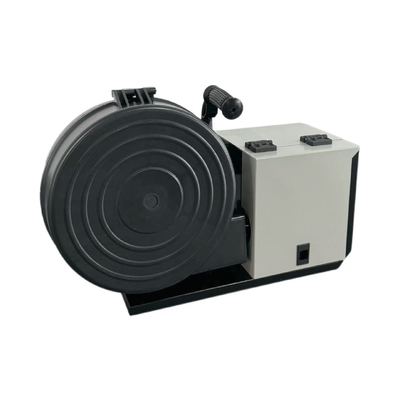

Wire Feeder Parameters
| Item | Value |
|---|---|
| Wire diameter | 0.8mm, 1.0mm, 1.2mm |
| Dimensions | 615 x 400 x 245mm (L x W x H) |
| Weight | 14Kg |
| Wire reel 1 (OD/ID/W/weight) | 200mm / 53mm / 103mm / 15Kg |
| Wire reel 2 (OD/ID/W/weight) | 300mm / 53mm / 103mm / 20Kg |
Welding Performance Characteristics
- Carbon steel with a thickness greater than 2.5 mm welded with a V-groove: single-side groove angle ≥ 37°, misalignment less than 10% of wall thickness.
- Stainless steel with a thickness greater than 2.5 mm welded with a V-groove: single-side groove angle ≥ 45°, misalignment less than 10% of wall thickness.
- Fit-up clearance: 0-0.5 mm.
- Tack welds made in small, thin and dense spots.
- Welding mode: the pipe remains stationary while the welding torch rotates to complete welding.
- For multi-pass welding with grooved joints, AVC automatically tracks the arc length; the capping pass is completed by OSC weaving oscillation.
Product Images
Commercial Terms
| Item | Value |
|---|---|
| Price | Price on Request - please contact us for the latest quotation |
| Price terms | FOB Shanghai |
| Lead time | 20 days |
| Payment | 30% deposit, 70% balance prior to delivery |
| Warranty | Within 12 months of the B/L |
| Installation and commissioning | Online guidance provided; on-site commissioning by technicians available at additional cost |
Contact Us
| Item | Detail |
|---|---|
| Company | Hyzont (Shanghai) Industrial Technologies Co., Ltd. |
| Contact | Raymond Mao |
| Tel | +86-15021164313 |
| Raymond@hyzont.com | |
| Website | www.cuttingweldingmachine.com |
Please contact us for the latest price and lead time. We welcome your inquiry.
Product Highlights
HZG-76 all-position automatic pipe orbital welding torch for 19-76mm pipes and tube-to-tubesheet joints. Aluminium alloy body, caliper-type stepless clamping, backlash-free gear transmission, electric weaving and arc length oscillation, water cooled torch, autogenous and wire feeding welding.
