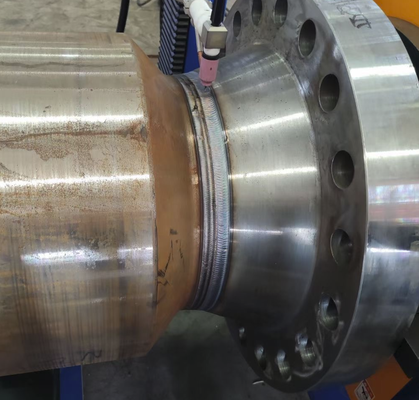

MH-P02 PLC Circular Seam Welding System 10 Inch Touch Screen 50 Welding Programs 400A TIG Torch
Product Details
| Control System: | MH-P02 PLC + CPU Hybrid SOC | Display: | 10 Inch Touch Screen |
|---|---|---|---|
| Programs: | 50 Programs, 16 Sections Each | Rotation Speed: | 0.1 - 2.0 Rpm |
| Swing Frequency: | 0 - 100 Cycles/min | Lateral Oscillation Speed: | 0 - 1000 Mm/min |
| Lateral Oscillation Accuracy: | +/- 0.1 Mm | Torch Column Model: | MHT60-3560 |
| Circular Welding System: | MHK50-2210 | Trolley Stroke: | 3000 Mm |
| Column Stroke: | 600 Mm | Side Stroke: | 300 Mm |
| Highlight |
MH-P02 PLC Touch Screen Controller,50 Welding Programs Storage,Automatic Diagnosis Protection System |
||
Product Description

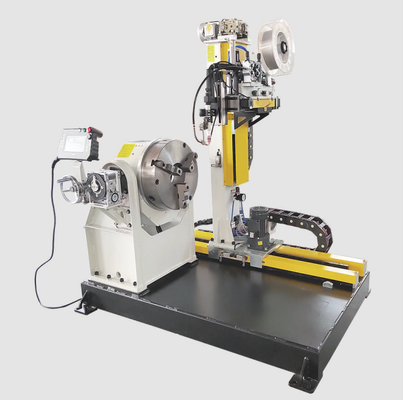

MH-P02 PLC Circular Seam Welding Control System

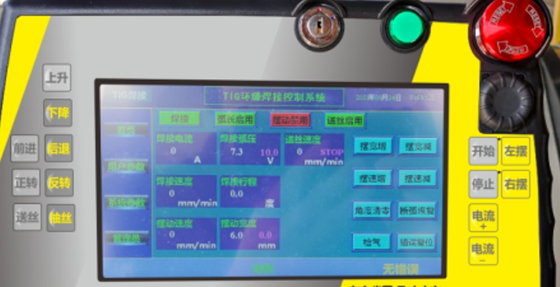

The MH-P02 welding controller is a hybrid high-integration system on chip (PLC + CPU) developed for high efficiency TIG welding. It provides a fixed control center and a remote control center with a 10 inch touch screen, supports plug and play expansion modules and upgradeable main programs, and the two control centers can be linked or switched to separate control.
Control System Parameters
| Controller Model | MH-P02 (PLC + CPU hybrid SOC) |
| Operation Console | 10 inch touch screen |
| Program Storage | Up to 50 welding programs, 16 sections each, freely copyable |
| Rotation Speed Control | 0.1 - 2.0 rpm (forward / reverse) |
| Swing Frequency | 0 - 100 cycles / min |
| Lateral Oscillation Speed | 0 - 1000 mm/min |
| Lateral Oscillation Accuracy | ±0.1 mm |
| Lateral Oscillation Excursion | 0.1 - 5 mm |
| Lag Time / Edge Residence | 0.1 - 60 s / 0.1 - 8 s (left and right adjustable) |
Manipulator Parameters
| Manipulator Model | MHT60-3560 |
| Rotation Speed | 0.5 - 40 rpm |
| Trolley Stroke | 3000 mm |
| Column Stroke | 600 mm |
| Side to Side Stroke | 300 mm |
| Manual Angle Swing | ±45° |
| Rotation Motor Power | 0.75 kW |
The equipment is equipped with an automatic diagnosis and protection system to protect personnel, equipment and workpieces. The display directly shows current, voltage and welding line speed, with a complete human-machine interaction interface.
Product Highlights
MH-P02 PLC circular seam welding control system with PLC+CPU hybrid SOC, 10 inch touch screen, 50 welding programs with 16 sections each, swing control and automatic diagnosis protection.
