Automatic Circular Seam Welding Machine
Product Details
| Highlight |
HF-H Automatic Circular Seam Welder,500mm Pipe Flange Welding,Circular Seam TIG Welding |
||
|---|---|---|---|
Product Description

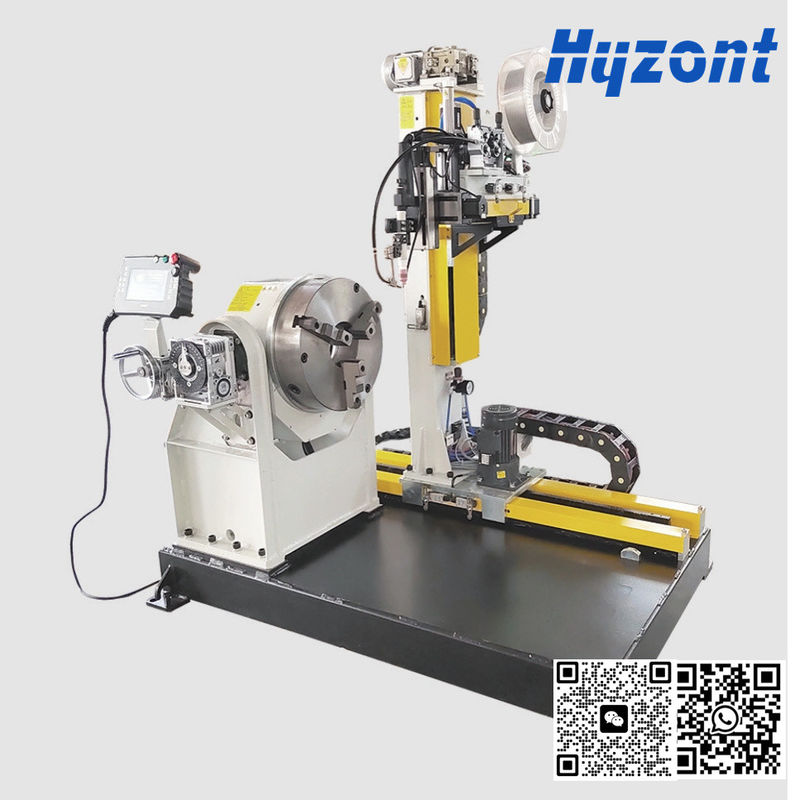

Automatic circular seam welding machine TIG process pipe welding flange to pipe welding machine
The equipment features a compact and intensive design with a small footprint and flexible operation. It is suitable for circumferential welding of pipes made of carbon steel, stainless steel, titanium alloy, aluminum alloy, nickel-based alloy and other materials, and can be used for butt and socket welding of pipe fittings such as pipe, tee, elbow and flange. The all-angle positioner with an electric arc length swing carriage and a three-dimensional wire feeding mechanism accurately realizes multi-angle welding of workpieces. Equipment configuration and process are optional and adjustable (single gun or multi-gun: TIG, MIG/MAG, PAW, etc.). The welding control functions are fine and comprehensive, supporting speed control, current control, wire feeding control, rotation control, gas protection time control and automatic arc length control.
| Model | MWHF-HM | MWHF-HL |
| Welding OD | 10-500 | 50-500 |
| Welding Stroke | 0-1000(Customized) | 0-3000(Customized) |
| Rotation Speed | 0.1-3 rpm | 0.1-3 rpm |
| Vertical travel of bracket | 250 | 250 |
| Weight | 500 | 1200 |
