PLC Controlled Circular Seam Auto Welding Machine With Arc Length Tracking 70mm Swing Oscillator
Product Details
| Control System: | PLC + Touch Screen | Positioner Model: | XZ-600 |
|---|---|---|---|
| Positioner Loading Capacity: | 500 Kg | Positioner Rotation Speed: | 0.3 - 3 Rpm |
| Support Rack Model: | HGK-30S | Swing Travel: | 0 - 70 Mm |
| Swing Speed: | 0 - 1800 Mm/min | Arc Length Slide Travel: | 70 Mm |
| Arc Length Response Speed: | 0 - 700 Mm/min | Wire Feed Rate: | 75 - 1500 Mm/min |
| Welding Wire Diameter: | 0.8 - 1.2 Mm | Wire Material: | 316L Supported |
| Highlight |
PLC Touch Screen Control System,Arc Length Automatic Tracking,70mm Swing Weld Oscillator |
||
Product Description

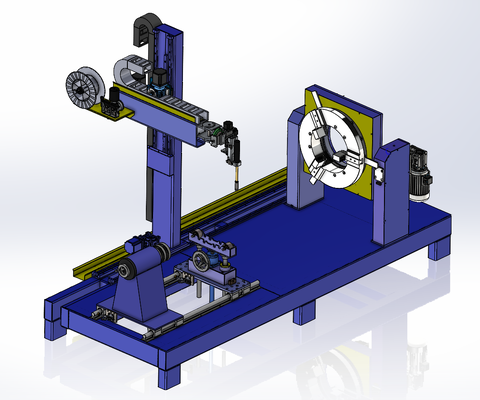

PLC Controlled Circular Seam Auto Welding Machine with Oscillator
This automatic circular seam welding machine is built around a PLC + touch screen control system and a precision cross slide carriage. The arc length tracking system automatically follows the height direction of the weld seam, while the general-purpose weld oscillator improves bead width, bead formation and productivity. It is well suited to circumferential welding of stainless steel and carbon steel pipes.

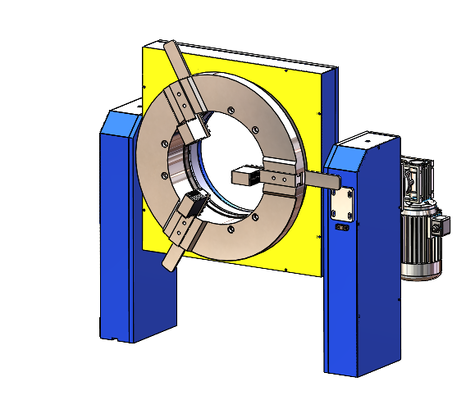

Positioner & Support Rack
| Positioner Model | XZ-600 |
| Positioner Loading Capacity | 500 kg |
| Working OD | Φ50 - Φ600 mm |
| Positioner Motor Power | 0.75 kW |
| Rotation Speed | 0.3 - 3 rpm |
| Support Rack Model | HGK-30S |
| Support Rack Capacity | 100 kg |
| Wheel Size | Φ280 x 100 mm, rubber |

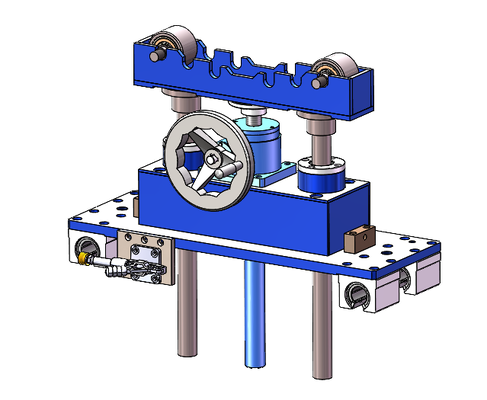

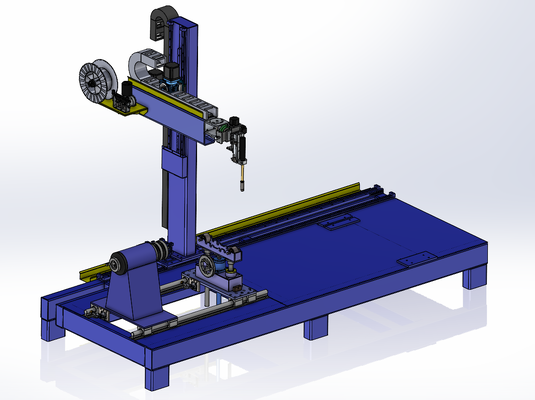

Precision Cross Slide & Oscillating System
| Cross Slide Model | WT80 x 80 |
| Swing Travel (Amplitude) | 0 - 70 mm |
| Swing Speed | 0 - 1800 mm/min |
| Center Control Range | 0 - 60 mm |
| Arc Length Slide Travel | 70 mm |
| Arc Length Response Speed | 0 - 700 mm/min |
| Left / Right Residence Time | 0 - 5 s (independently adjustable) |

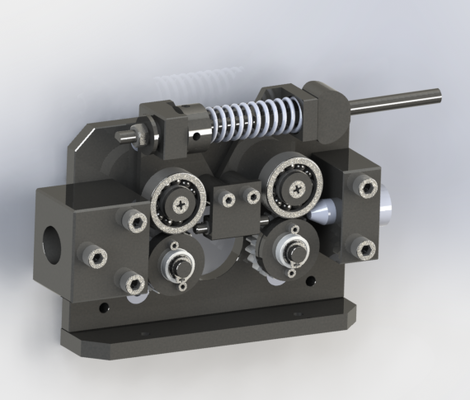

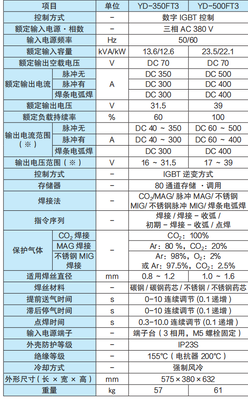

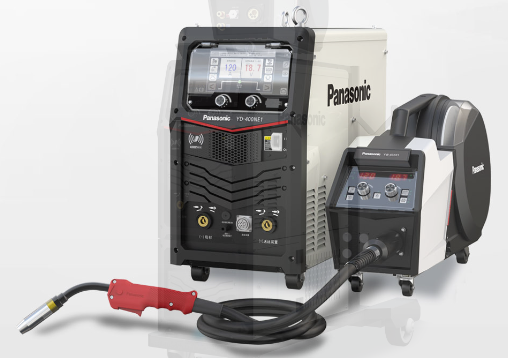

Automatic Wire Feeder (JSS-21)
| Wire Feed Rate | 75 - 1500 mm/min |
| Applicable Wire Diameter | 0.8 - 1.2 mm (316L wire 1.2 mm supported) |
| Wire Feed Lag Time | 1 - 999 |
| Wire Feed Speed Increase Time | 0.01 - 99.9 s |
| Wire Feed End Position | 1 - 9999 |
| Wire Draw Back Time | 0.01 - 5 s |
Automatic reverse wire drawing and pulsating wire feeding provide high wire feeding accuracy, adjustable by hand operator for stable and repeatable seam quality.
Product Highlights
PLC controlled circular seam auto welding machine with touch screen, arc length tracking, 70mm swing oscillator, XZ-600 positioner and JSS-21 wire feeder for stainless steel pipe welding.
