Tube-To-Tube MIG Automatic Circular Seam Welding Machine 50-600mm OD 2000mm Length 500kg Capacity
Product Details
| Material: | CS / SS | Welding Process: | MIG Gas Shielded |
|---|---|---|---|
| Working OD: | Phi 50 - Phi 600 Mm | Working Length: | <= 2000 Mm |
| Working Thickness: | <= 20 Mm | Working Weight: | <= 500 Kg |
| Weld Form: | Pipe To Pipe Butt Joint | Welding Power Source: | Panasonic YD500FT3 |
| Control System: | PLC + Touch Screen | ||
| Highlight |
MIG Plus Wire Welding Process,Panasonic YD500FT3 Welding Power Source,Tube To Tube Butt Joint |
||
Product Description

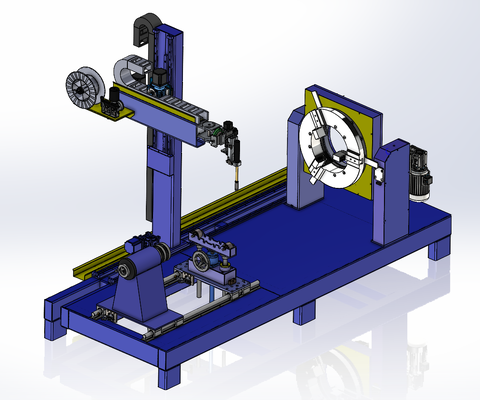

Tube-To-Tube MIG Automatic Circular Seam Welding Machine
This dedicated circular seam welding system performs pipe-to-pipe butt joint welding with a MIG + wire welding process. It integrates a special welding positioner, a lifting roller frame, a welding roller frame, a welding head, a MIG welding power source and a PLC control system into one compact unit with a low center of gravity for stable operation.
Working Range
| Material | CS / SS |
| Welding Process | MIG gas shielded welding |
| Working OD | Φ50 - Φ600 mm |
| Working Length | ≤ 2000 mm |
| Working Thickness | ≤ 20 mm |
| Working Weight | ≤ 500 kg |
| Weld Form | Pipe to pipe butt joint |
Key Features
- MIG + wire feeding welding process for high deposition efficiency and neat bead appearance.

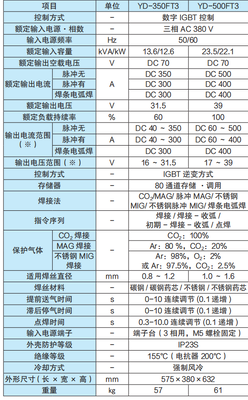

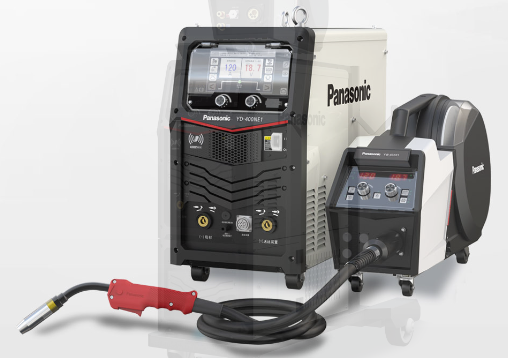

- Equipped with Panasonic YD500FT3 welding power source for stable arc and reliable performance.
- Integrated one-piece machine layout, favorable for stable operation with a low center of gravity.
- Three-dimensional adjustment on linear guide rails (double track guide), AC motor driven with rack and pinion transmission.
- Remote control box mechanism; welding posture switching by manual operation.
- PLC + touch screen program controller with centralized control panel and wireless remote box.
Equipment Configuration
| Item | Component | Qty |

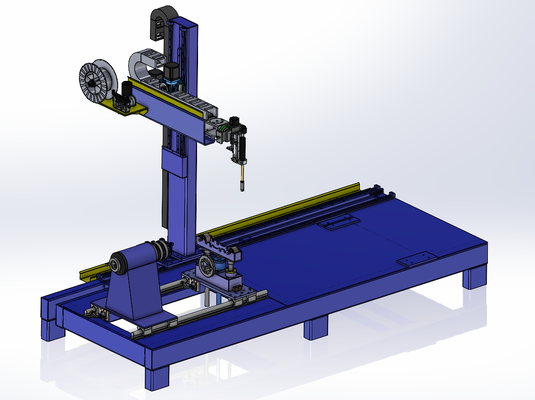

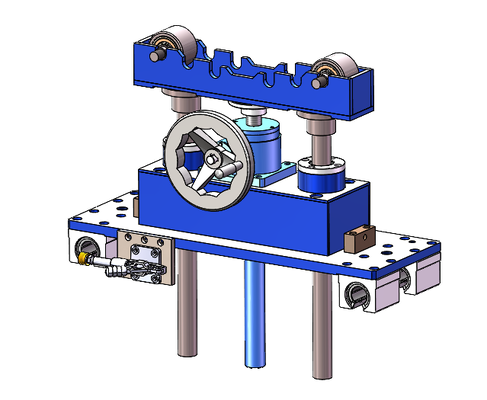

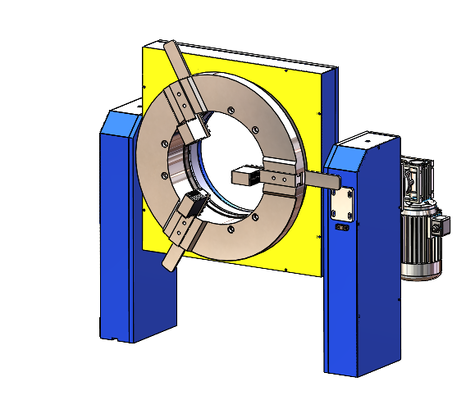

| 1 | Welding main machine (welding cross, positioner, manual torch trimming mechanism, lifting driven roller frame) | 1 set |
| 2 | MIG welding system (welding cable, Panasonic YD500FT3 power source, control cable) | 1 set |

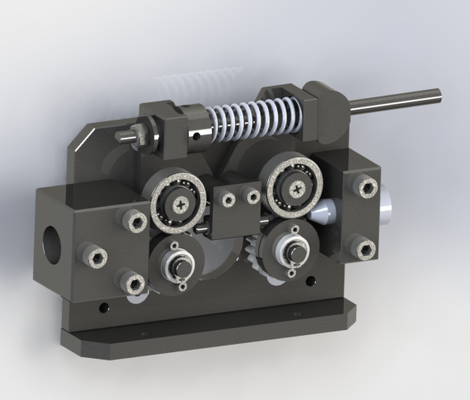

| 3 | Wire feeding unit (wire feeder, wire liner, MIG welding gun) | 1 set |
| 4 | PLC electrical control system (PLC + touch screen, control panel and remote, control cables and drag chain) | 1 set |
| 5 | Oscillating system | 1 set |
Product Highlights
Tube-to-tube MIG automatic circular seam welding machine, OD 50-600mm, length up to 2000mm, thickness up to 20mm, load 500kg, with Panasonic YD500FT3 power source and PLC touch screen control.
