Automatic Hot Wire TIG Vertical Cladding Welding Machine Valve Bore Ring Groove Cladding Water Cooling
Product Details
| Welding Process: | Automatic Hot Wire TIG | Welding Position: | 2G / 1G Vertical Cladding |
|---|---|---|---|
| Cladding Target: | Valve Bore, Sealing Surface, Ring Groove | Base Material: | A105, A350 LF2, AISI 4130, SS304/316, F51, WCB Castings |
| Weld Wire: | ERNiCrMo-3, ERNiFeCr-1, ER316L, ER2594, ERCCoCr-E, 1.2mm | Clad Thickness: | 1-3mm Per Layer, Standard 3.2mm |
| Dilution: | Below 5% | Quality Test: | ASTM E165 Liquid Penetrant Testing |
| Weld Current: | 100-500A | Voltage: | 220V/380V |
| Cooling: | Water-cooled Automatic Torch | Control System: | PLC Touch Screen With Preset Cladding Programs |
| Warranty: | 12 Months | ||
| Highlight |
Valve Bore Vertical Cladding Machine,Ring Groove Hot Wire TIG Cladding,Low Dilution Automatic Cladding Welder |
||
Product Description

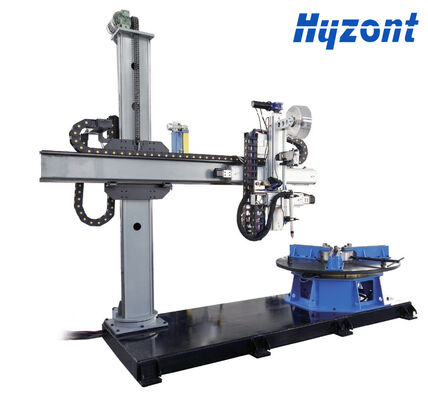

Automatic Hot Wire TIG Vertical Cladding Welding Machine

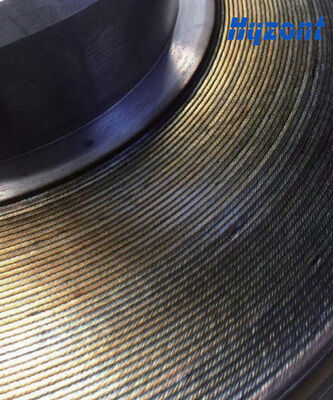

Application: The HZV-300 vertical cladding welding machine is developed for automatic hot wire TIG cladding of valve bores, sealing surfaces and ring grooves. It is widely used to overlay carbon steel, stainless steel and alloy base materials with corrosion-resistant and wear-resistant weld metal in valve, pipe and pressure vessel manufacturing.
Key Selling Points:
- Vertical cladding application: dedicated 2G/1G vertical position cladding for valve bore, sealing face and ring groove overlays.
- High-quality cladding result: automatic hot wire TIG process keeps dilution below 5%, with standard clad thickness 3.2mm and sound multi-layer overlays.
- Broad material compatibility: welds A105, A350 LF2, AISI 4130, SS304/316/410, F51 and WCB castings with ERNiCrMo-3, ER316L, ER2594 or cobalt alloy wires of 1.2mm diameter.
- Easy operation: PLC touch screen with preset cladding programs reduces operator skill requirements.
- Water-cooled torch design supports long-duration continuous cladding.
- Quality assurance: overlays meet ASTM E165 liquid penetrant testing with high first-pass yield.
- Cost-effective solution: factory-direct supply with competitive price and volume discount.
Specification:
| Model | HZV-300 |
| Welding Process | Automatic hot wire TIG |
| Welding Position | 2G / 1G vertical cladding |
| Cladding Target | Valve bore, sealing surface, ring groove |
| Base Material | A105, A350 LF2, AISI 4130, SS304/316/410, F51, WCB castings |
| Weld Wire | ERNiCrMo-3, ERNiFeCr-1, ER316L, ER2594, ERCCoCr-E (1.2mm) |
| Clad Thickness | 1-3mm per layer, standard 3.2mm |
| Dilution | Below 5% |
| Quality Test | ASTM E165 liquid penetrant testing |
| Weld Current | 100-500A |
| Voltage | 220V/380V |
| Cooling | Water-cooled automatic torch |
| Control System | PLC touch screen with preset cladding programs |
| Warranty | 12 months |
Factory-direct price with discount for volume orders. Contact us for the current promotion.
Product Highlights
HZV-300 automatic hot wire TIG vertical cladding machine for valve bore, sealing surface and ring groove cladding with water cooling and low dilution overlays.
