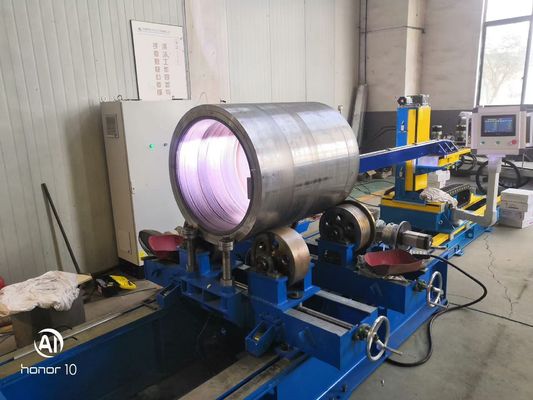

Self-Aligned Welding Turning Rolls with 50 Ton Capacity and Variable Frequency Drive for Pressure Vessel Rotation

Self-Aligned Welding Turning Rolls for Heavy-Duty Pressure Vessel Fabrication

Our welding turning rolls are specially engineered to rotate large diameter pressure vessels, storage tanks, wind turbine towers and pipe sections during automatic welding operations. The self-aligning roller frame automatically adjusts to the workpiece diameter, ensuring stable and precise rotation for consistent weld quality.

Key Features

• Self-aligned roller frame automatically adapts to vessel diameters from 800 mm to 6000 mm
• 50 ton maximum load capacity for heavy fabrication workpieces
• Variable frequency drive provides infinitely adjustable rotation speed from 0.1 to 1.5 m/min
• Wireless remote control for convenient operation at safe distance
• Rubber-lined rollers protect workpiece surface from scratches and damage
• All-gear transmission ensures smooth, noiseless and maintenance-free performance

Technical Specifications

Applications

Widely used with submerged arc welding, MIG/MAG welding and TIG welding systems for longitudinal and circumferential seam welding of pressure vessels, boilers, storage tanks, wind power towers and large pipe sections.
