Tube To TubeSheet Welding Head With GTAW DC Welding Power Source
Product Details
| Highlight |
GTAW DC Powered Weld Head,TTS-30 Tube Sheet Welding,Precision Orbital Welding Head |
||
|---|---|---|---|
Product Description

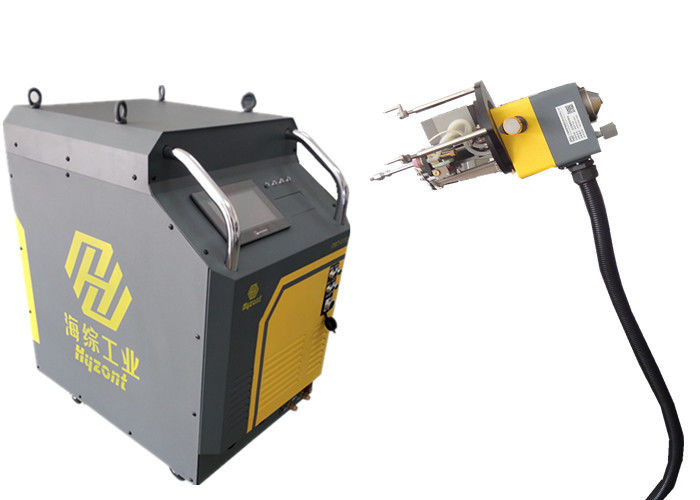

Tube to Tube-sheet Welding Head with GTAW DC Welding Power Source
Model: TTS-30
Application:
The welding head is specially designed for tube-to-tubesheet TIG welds, suitable for carbon steel, stainless steel, etc., mainly for protruding tube, flush tube and indented tube connection with or without wire feeding.
This machine is widely applied in
- Tubular Heat Exchanger tube welding
- Boiler Tube to Tube Sheet Welding
- Protruding tube Welding
- Flush Tube Welding
Features
- Expandable pneumatic mandrel for easy positioning
- High precision with fast and accurate performance, suitable for small heat exchanger
- Auto AVC control with on and off function for manual adjustments
- Water cooled TIG weld head, easy to change or adjust Tungsten
- Integrated wire feed for recessed, protruded or flush tube ends
- Buttons on handle for easy operation
- Uses localized guide for self-centering of welds 19-76 mm OD
- Recommended power source OBT-315
Specification
| Model | TTS-30 |
| Material | Carbon steel, Stainless Steel |
| Type of Connection | Protruding tube or Flush Tube |
| Welding Process | TIG/GTAW |
| Tube OD(mm) | 19-76 |
| Welding Torch Angle | 0-30 |
| Tungsten OD(mm) | 1.6-2.4 |
| Welding Wire Dia(mm) | Φ0.8mm/Φ1.0 mm |
| Max wire feeding speed | 2200 mm/min |
| Swing Welding | Yes |
| Rotating | 360° free rotation with auto reset; all-position welding |
| Rotation speed(rpm) | 0.37-5.58 rpm |
| Protective Gas | Argon |
| Cooling | Water |
| Cable Length | 6m |
| Main Dimension(mm) | |
| Weight(kg) | 9 kg |
Power Source Specification
| Model | OBT-315 |
| Welding source | Panasonic YC-315TX |
| Power source type | Inverter |
| Welding Current | 5-315 A |
| Duty Cycle | 315 A / 60%, 250 A / 95%, 244 A / 100% |
| Input Voltage | AC380V ± 10 % 50/ 60 Hz |
| Total Power | 8.3 kVA |
| Cooling | Built-in water cooling system |
| Display | 7" touch screen |
| Programs Storage | 80 |
| Insulation Grade | F |
| Protection Class | IP21 |
| Weight | 120 kg |
| Dimension | 740 x 520 x 910 |
Product Highlights
Tube to Tube-sheet Welding Head with GTAW DC Welding Power Source Model: TTS-30 Application: The welding head is specially designed for tube-to-tubesheet TIG welds, suitable for carbon steel, stainless steel, etc., mainly for protruding tube, flush tube and indented tube connection with or without ...
