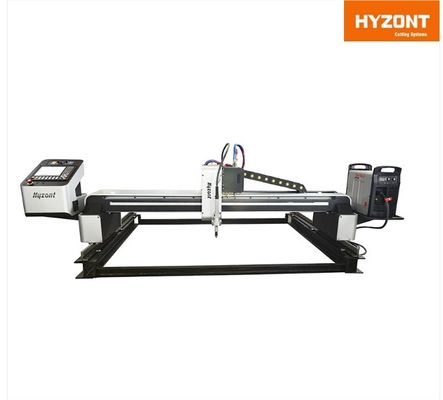

CNC Plasma Cutting Machine 1500*300mm cutting area with high quality 200A China Plasma power supply
Product Details
| Control System: | CNC Controller | Cooling System: | Water Cooling |
|---|---|---|---|
| Cutting Accuracy: | High | Cutting Area: | 1500-6000mm |
| Cutting Material: | Stainless Steel, Carbon Steel, Aluminum, Copper, Etc. | Cutting Speed: | High |
| Cutting Thickness: | 0.5-30mm | Dimension: | Customized |
| Drive System: | Stepper Motor | Input Current: | 20A-200A |
| Input Frequency: | 50/60Hz | Input Power: | 220V/380V |
| Power Source: | Plasma Generator | Weight: | Customized |
| Working Environment: | Indoor | ||
| Highlight |
200A China Plasma Power,PMCNC-2060 1530 Plasma Table,1500x300mm Cutting Area |
||
Product Description

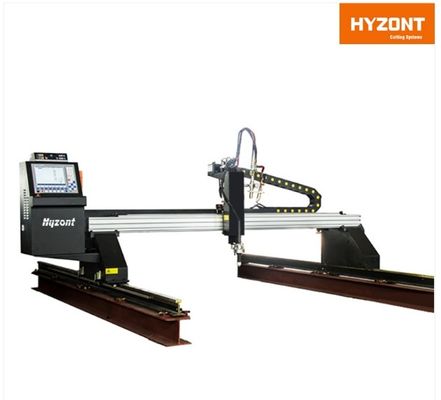

PMCNC Series is a single drive portable CNC cutting machine, which can cut any graphics you need with wide track structure design. Plasma cutting is a kind of processing method that makes use of the heat of high temperature plasma arc to melt (and vaporize) the metal at the cut of workpiece and eliminate the molten metal by the momentum of high speed plasma to form the notch. Flame cutting is used to cut carbon steel by the high temperature generated during the combustion of iron oxide, and the flame cutting torch is designed to provide sufficient oxygen to the combustion iron oxide to ensure a good cutting effect .
| Model | PMCNC-2560 |
| Power source | machine: AC 220 V/50hz /palasma cutter: AC 380 V/50hz |
| Effective cutting width | 2500 mm |
| Effective cutting length | 6000 mm ( accept tailor-made length) |
| Cutting thickness(flame) | 5-120 mm (oxygen+acetylene or propane) |
| Cutting thickness(plasma) | 0.5-40 mm Depending on the customer's plasma power supply |
| Cutting speed | 20-3500 mm/min (max.4000 mm/min) |
| Cutting accuracy | ±0.5 m |
| Line marking accuracy | ±0.2 mm |
| Motion accuracy | ±0.2 mm |
| Torch lifting distance | ≤150 mm |
| Gas pressure | Max 0.1 MPa |
| Oxygen pressure | Max 0.7 MPa |
| Applicable gas type | Oxygen and propane or acetylene |
| Working interface | Chinese and English (other languages can be customized) |
| Duty cycle | 24hours |
| Working temperature | 0-45°C |
| CAD drawing conversion | nesting cut code StarCAM |
| Processing Materials | carbon steel, stainless steel, aluminum sheets, galvanized sheets, Titanium plates |
Product Highlights
PMCNC Series is a single drive portable CNC cutting machine, which can cut any graphics you need with wide track structure design. Plasma cutting is a kind of processing method that makes use of the heat of high temperature plasma arc to melt (and vaporize) the metal at the cut of workpiece and ...
