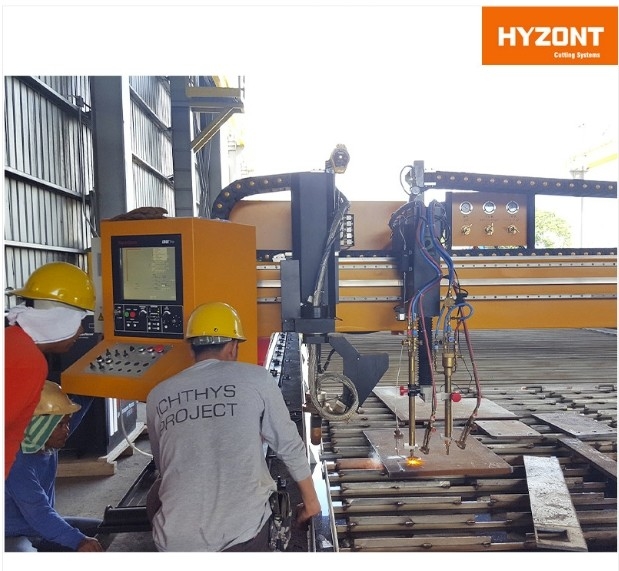

Kjellberg Cnc Plasma Cutting Machine Smart 300HD Plasma Metal Cutting Machine
Product Details
| Highlight |
Kjellberg 300HD Compatible,CNCHG-4000 Plasma Machine,Smart Plasma Metal Cutting |
||
|---|---|---|---|
Product Description
With just a few settings the new plasma cutting units of the Smart Focus series achieve excellent results in the cutting range from 1 to 80 mm. Even under challenging conditions highest cutting quality and speed are realised. In such cases, we use our well-proven cutting technologies, e.g. Contour Cut for cutting mild steel. The optimised gas control units and torches protect the consumables, reduce the gas consumption and the costs per cutting metre. As a further development of the Contour Cut technology the new Silent Cut technology reduces the sound pressure level by up to 15 dB(A) during cutting with currents between 60 and 160 A.
TECHNICAL DATA
| Power source | Smart Focus 300 |
| Mains voltage* | 3x 400 V, 50 Hz |
| Cutting current | 35 - 300 A |
| Marking current | 10 - 50 A |
|
Cutting range Maximum Recommended |
80 mm 1 - 60 mm |
| Piercing | 40 mm |
| Plasma gases | O2, Ar /H2, N2, air |
| Piercing | Ar, N2 |
| Dimensions (L x W x H) | 1030 x 680 x 1450 mm |
| Weight | 488 kg |
| Plasma machine torch | PerCut 2000 |
| Quick change head | PerCut 4000 |
Product Highlights
With just a few settings the new plasma cutting units of the Smart Focus series achieve excellent results in the cutting range from 1 to 80 mm. Even under challenging conditions highest cutting quality and speed are realised. In such cases, we use our well-proven cutting technologies, e.g. Contour ...
