Place of Origin: | Shanghai |
---|---|
Brand Name: | Hyzont |
Certification: | CE |
Model Number: | TNC-1530 |
Minimum Order Quantity: | 1sets |
Packaging Details: | wooden case |
Delivery Time: | 10-15 days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets / Month |

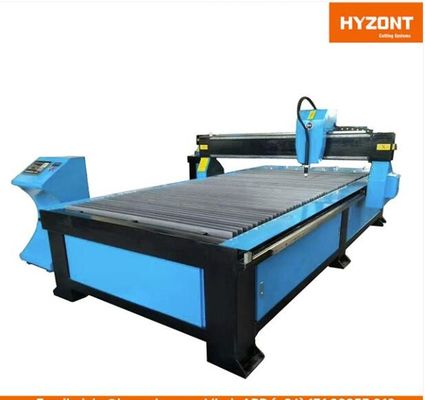

Name: | CNC Plate Cutting Machine | Voltage: | 220V |
---|---|---|---|
Condition: | New | Model: | TNC-1530 |
Certification: | CE | Brand: | Hyzont |
High Light: | CNC Plasma Cutting Welding Table,CE CNC Plate Cutting Machine,Plate Plasma Cutting Machine |
Product Description
1, space saving , quick installation, no foundation request
2. using integrated modular structure, making installation quick and easy
3, high accuracy AC servo motor dirve.
4, friendly operation panel, easy-to-use
5, automatic program optimization nest path
6, G and M code recognizable
7, DXF/DWG files programming and nest
8, USB data transmission
9, The machine size can be customized (standard model :1300*2500, 1500*3000,2000*40000)
Model | TNC-1325 | TNC-1530 | TNC-2040 |
Working size | 1300*2500mm | 1500*3000mm | 2000*4000mm |
Adjustable Height of cutting torch | 100mm | ||
Driving mode | Double side driving | ||
Lifting station | One set for plasma cutting torch | ||
Precision of rise and fall | ±0.2mm | ||
Precision of line position | ±0.4mm/10m | ||
Transmission system |
X,Y Taiwan AMT high-precision,zero clearance increased linear guide+ rack Z the arc voltage control |
||
No-load travel speed | 15000mm/min | ||
Working voltage | 3~ 220/50HZ | ||
Control system |
Beijing START plasma cutting system Shanghai Fangling Plasma cutting system |
||
Software support | Starcam, FASTCAM,AutoCAD | ||
Instruction format | G code | ||
Drive system | Stepper motor or Panasonic Servo motor | ||
Plasma power | Chinese Huayuan brand plasma powers 40A to 400A | ||
Power cutting thickness | 0.3mm to 30mm |
