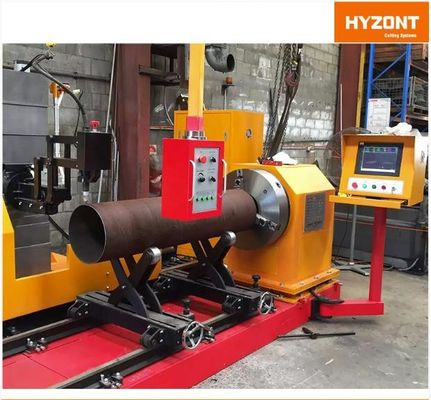

Steel Pipe CNC profile Cutting Machine with Gas cutting Torch and Plasma Cutting torch pipe dia range 300-1200mm
Product Details
| Name: | 220V Plasma Cnc Machine | Model: | CNCXG-800 |
|---|---|---|---|
| Speed: | 10000 Mm/Min | Brand: | Hyzont |
| Highlight |
Dual Torch Pipe Cutting Machine,300-1200mm Pipe Range,CNCXG-800 Gas Plasma |
||
Product Description
Diameter 30-1600 mm 5 Axis Plasma And Oxy Fuel Gas CNC Pipe Profile Coping Cutting Machine
Using Plasma And Oxy Fuel/Gas/Flame to profile cutting and coping pipes, both in round pipe and square/rectangle pipes, with cutting diameter range 30-1600 mm, length 12000 mm, max thickness can be up to 80 mm.
1. Machine Description

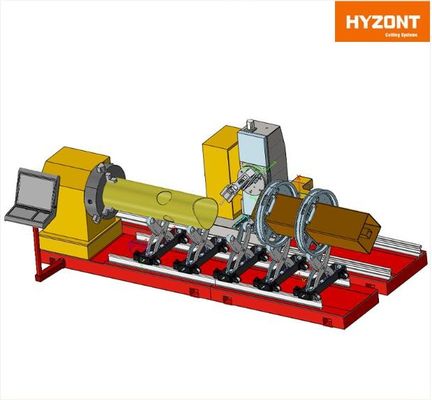

CNC Pipe Profile Cutting Machine
u Oxy-fuel and plasma cutting and beveling
u Maximum cutting pipe diameter 1600 mm
u 3D Cutting
u Touch screen panel, convenient and fast data inputting, easy to use and learn
u Saving cutting data any time, able to create technical data base by user
u Compatible with Steel Structure designing software, expanding of machine function
Use of equipment performance
CNCXG series CNC pipe cutting machine is specially designed equipment for steel pipe 3-D automatic cutting.
After input of basic data or leading proper format files, it is capable of automatically processing hole, beveling, grooving, multi-branch and shrimp sections.
It is widely used in steel structure, ship building, bridge and steel tower building, petrochemical piping and pressure vessel industry.
Optional items:
• 5 jaws concentric chuck
• Turning roll(cutting pipe dia can be up to 2500 mm)
• Fastpipe/fastframe software
• Electric jaw
• Electric adjusting bracket
• Photoelectric sensor
2. Technology parameters:
| Technical Data | ||||||
| Model | CNCXG300 | CNCXG600 | CNCXG800 | CNCXG1250 | CNCXG1400 | CNCXG1600 |
| Cutting Pipe Diameter (mm) | 40-300 | 60-630 | 60-800 | 100-1250 | 200-1400 | 200-1600 |
| Pipe length(mm) | 2000-12000 | 2000-12000 | 2000-12000 | 2000-12000 | 2000-12000 | 2000-12000 |
| Cutting Speed (mm/min) | Flame: 50-750 Plasma: 50-5800 | |||||
| Cutting Thickness(mm) | Flame: 5-60 mm Plasma: 1-50 mm | |||||
| Plasma max beveling angle | ±45° | |||||
| Flame max beveling angle | ±60° | |||||
| Basic components | ||||||
| Pipe Chuck | 3 jaws concentric chuck | |||||
| Cutting Mode | Flame and Plasma | |||||
| Number of Control Axis | 2-6 | |||||
| Driving Motor | Panasonic/Yaskawa | |||||
| Available Plasma Power | , Kjellberg, Thermal Dynamics, ESAB | |||||
| Other Data | ||||||
| Operation language | English or Chinese | |||||
| Power voltage | 3×380V±10% 50 Hz /according to user’s local condition | |||||
HYZONT (SHANGHAI) INDUSTRIAL TECHNOLOGIES CO., LTD.
Add: Building 1, Lane 99 Shenmei Road, Pudong District, Shanghai, China
Sales Manager: Mr. Raymond
Mob: +86 15021164313 WhatsApp: +86 15021164313 WeChat: +86 15021164313
Email: raymond@hyzont.com
