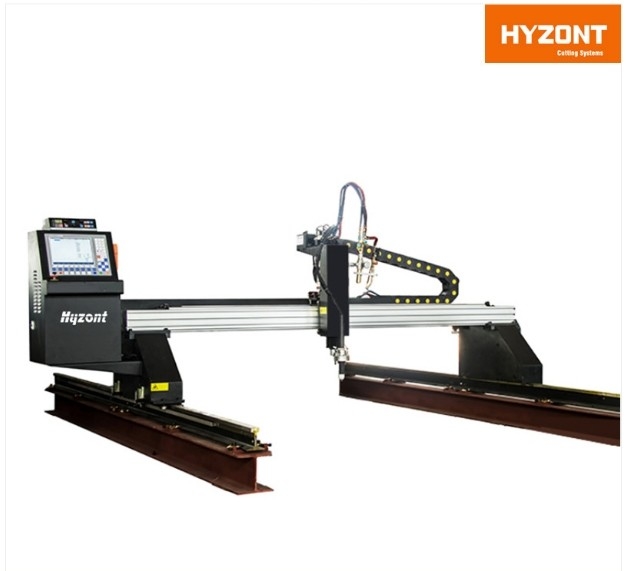

Mini Gantry CNC Plasma Oxy Fuel Cutting Table 2000*6000mm

Mini Gantry CNC Plasma Oxy Fuel Cutting Table 2000*6000mm
Features Gallery Product Description Request A Quote
Name: CNC Plate Cutting Machine
Voltage: 220V
Condition: New
Model: MNC-2060
Certification: CE
Brand: Hyzont
High Light:

CNC Plasma Oxy Fuel Cutting Table


220V Gantry Oxy Fuel Cutting Table


Oxy Fuel Cutting Table 2000*6000mm

Basic Infomation
Place of Origin: Shanghai
Brand Name: Hyzont
Certification: CE
Model Number: MNC-2060
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets / Month
Product Description
Product Description


Model No. MNC-2030 MNC-2060 MNC-2560
Effective Cutting Rangge X*Y 2000*3000mm 2000*6000mm 2500*6000mm
Customized Information Length of Y axis rails can be customized extending
Driving Configuration Dual drive 86 series step motors with dual planetary reducers
Tool And Torch Quantity Single tool,and can be both with plasma and flame torch
Torch Height Control Plasma arc voltage auto torch height control or flame capacitive auto torch height control
Max. Working Speed 6000mm/min
Input Power Single phase AC 220V 1200W
Torch Lifting Distance(Z) ≤100mm
Working precision ± 0.2 mm / m
Flame (Gas) Cutting Capacity Piercing capacity: 5-60 mm Edge start cutting: 5-120mm
Plasma Cutting Capacity Depends on the plasma source's cutting capacity
Controller, Software And Torch Height Control CNCUT-10A 10.4 inch controller,FASTCAM standard software, ZZ-PTHC 2.0V plasma THC
Cutting Table and Base H beam or other base construction and cutting table need supplied by user, and we can supply drawing for reference
PLUS If order MINI KING PLUS we will supply KING TABLE's control cabinet and collection drawers cutting table, and If need water table or ventilation table is available
Needed Installation Area(With Plasma Supporter) W 3.2m * L 4m * H 1.1m W 3.7m * L 4m * H 1.1m W 4.2m * L 4m * H 1.1m
Packing Size CNC:2870*840*1040mm Rails:3200*330*190mm CNC: 3360*840*1040mm Rails:3200*330*190mm CNC:3870*840*1040mm Rails:3200*330*190mm
This product has been patented, and copying is not permitted
