Hyzont ( Shanghai ) Industrial Technologies Co.,Ltd
------ One-stop Solutions of Orbital Welding and Cutting Machines
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Hyzont |
| Certification: | CE |
| Model Number: | MNC-2060 |
| Minimum Order Quantity: | 1sets |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets / Month |

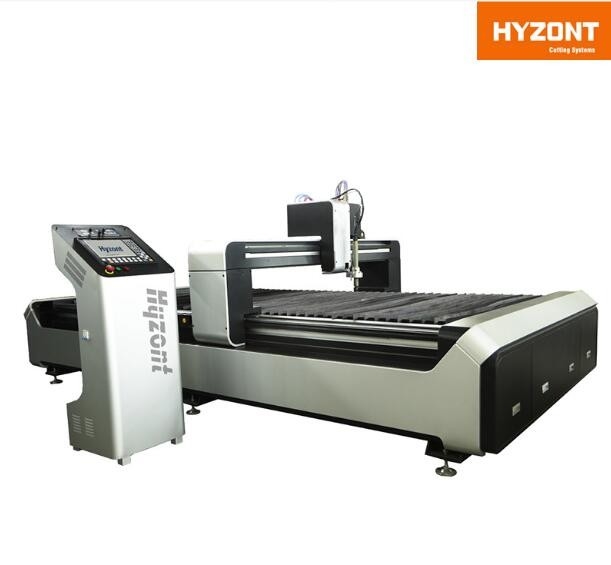

| Name: | CNC Plate Cutting Machine | Voltage: | 220V |
|---|---|---|---|
| Condition: | New | Model: | MNC-2060 |
| Certification: | CE | Brand: | Hyzont |
| High Light: | Single Phase CNC Plasma Cutting Table,Flame Torch CNC Plasma Cutting Table,CNC Plasma Cutting Table 6000mm/Min |
||
| Name | GANTRY STYLE MINI KING CNC FLAME PLASMA CUTTING MACHINE | ||
| Model No. | MNC-1530 | MNC-2060 | MNC-2560 |
| Effective Cutting Rangge X*Y | 1500*3000mm | 2000*6000mm | 2500*6000mm |
| Customized Information | Length of Y axis rails can be customized extending | ||
| Driving Configuration | Dual drive 86 series step motors with dual planetary reducers | ||
| Tool And Torch Quantity | Single tool,and can be both with plasma and flame torch | ||
| Torch Height Control | Plasma arc voltage auto torch height control or flame capacitive auto torch height control | ||
| Max. Working Speed | 6000mm/min | ||
| Input Power | Single phase AC 220V 1200W | ||
| Torch Lifting Distance(Z) | ≤100mm | ||
| Working precision | ± 0.2 mm / m | ||
| Flame (Gas) Cutting Capacity | Piercing capacity: 5-60 mm Edge start cutting: 5-120mm | ||
| Plasma Cutting Capacity | Depends on the plasma source's cutting capacity | ||
| Controller, Software And Torch Height Control |
CNCUT-10A 10.4 inch controller, FASTCAM standard software, ZZ-PTHC 2.0V plasma THC |
||
| Cutting Table and Base | H beam or other base construction and cutting table need supplied by user, and we can supply drawing for reference | ||
| PLUS | If order MINI KING PLUS we will supply KING TABLE's control cabinet and collection drawers cutting table, and If need water table or ventilation table is available | ||
| Needed Installation Area(With Plasma Supporter) | W 3.2m * L 4m * H 1.1m | W 3.7m * L 4m * H 1.1m | W 4.2m * L 4m * H 1.1m |
| Packing Size | CNC:2870*840*1040mm Rails:3200*330*190mm | CNC: 3360*840*1040mm Rails:3200*330*190mm | CNC:3870*840*1040mm Rails:3200*330*190mm |
| This product has been patented, and copying is not permitted | |||
