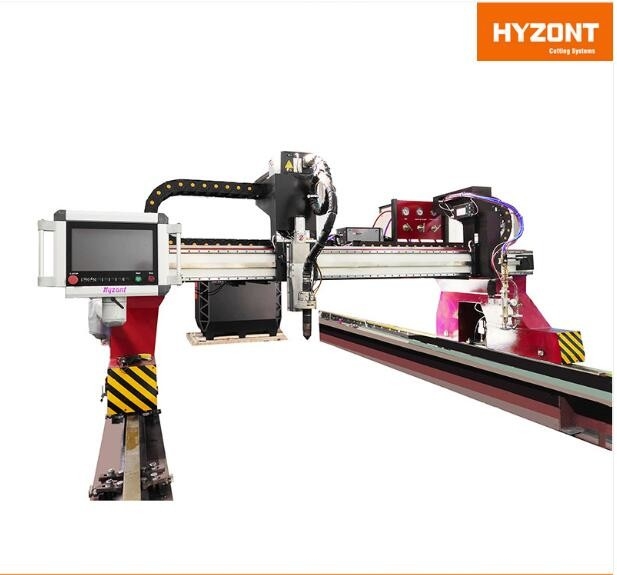

Gantry CNC Plasma Cutting Machine 6000mm/Min 1500*3000mm
Product Details
| Name: | CNC Plate Cutting Machine | Voltage: | 220V |
|---|---|---|---|
| Condition: | New | Model: | MNC-2030 |
| Certification: | CE | Brand: | Hyzont |
| Highlight |
MNC-2030 Gantry Plasma,6000mm per Minute Speed,1500x3000mm Cutting Table |
||
Product Description
| Name | GANTRY STYLE MINI CNC FLAME PLASMA CUTTING MACHINE | ||
| Model No. | MNC-1530 | MNC-2030 | MNC-2530 |
| Effective Cutting Rangge X*Y | 1500 x 3000 mm | 2000 x 3000 mm | 2500 x 3000 mm |
| Customized Information | Length of Y axis rails can be customized extending | ||
| Driving Configuration | Dual drive 86 series step motors with dual planetary reducers | ||
| Tool And Torch Quantity | Single tool, and can be both with plasma and flame torch | ||
| Torch Height Control | Plasma arc voltage auto torch height control or flame capacitive auto torch height control | ||
| Max. Working Speed | 6000 mm/min | ||
| Input Power | Single phase AC 220 V 1200 W | ||
| Torch Lifting Distance (Z) | ≤100 mm | ||
| Working precision | ± 0.2 mm /m | ||
| Flame (Gas) Cutting Capacity | Piercing capacity: 5-60 mm Edge start cutting: 5-120 mm | ||
| Plasma Cutting Capacity | Depends on the plasma source's cutting capacity | ||
| Controller, Software And Torch Height Control | CNCUT-10A 10.4 inch controller, FASTCAM standard software, ZZ-PTHC 2.0 V plasma THC | ||
| Cutting Table and Base | H beam or other base construction and cutting table need supplied by user, and we can supply drawing for reference | ||
| PLUS | If order MINI KING PLUS we will supply KING TABLE's control cabinet and collection drawers cutting table, and If need water table or ventilation table is available | ||
| Needed Installation Area (With Plasma Supporter) | W 3.2 m * L 4 m * H 1.1 m | W 3.7 m * L 4 m * H 1.1 m | W 4.2 m * L 4 m * H 1.1 m |
| Packing Size | CNC: 2870 x 840 x 1040 mm Rails: 3200 x 330 x 190 mm | CNC: 3360 x 840 x 1040 mm Rails: 3200 x 330 x 190 mm | CNC: 3870 x 840 x 1040 mm Rails: 3200 x 330 x 190 mm |
| This product has been patented, and copying is not permitted | |||
Product Highlights
Product Description Name GANTRY STYLE MINI CNC FLAME PLASMA CUTTING MACHINE Model No. MNC-1530 MNC-2030 MNC-2530 Effective Cutting Rangge X*Y 1500 x 3000 mm 2000 x 3000 mm 2500 x 3000 mm Customized Information Length of Y axis rails can be customized extending Driving Configuration Dual drive 86 ...
