Product description:

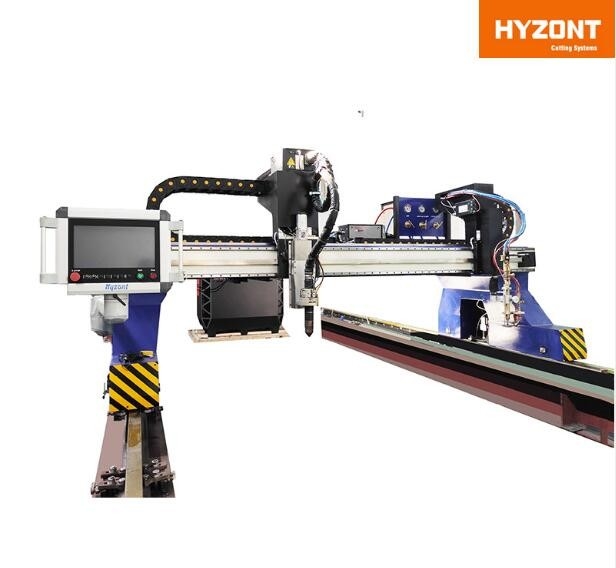

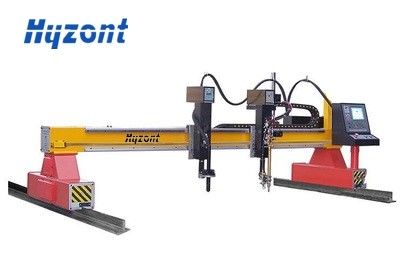

Gantry CNC flame/plasma and cutting machine is a kind of high precision steel plate hot cutting automation
equipment, used in all kinds of special-shaped steel, manganese steel, stainless steel and other metal materials of large, medium and small plate. Which main characteristic is to use the bilateral drive mode of transmission, the machine run smoothly, high positioning accuracy, concise and beautiful appearance, strong interchangeability of modularization design makes the machine parts, simpler equipment function expansion. The equipment has been in the shipbuilding industry, heavy machinery, chemical equipment, boiler manufacturing, locomotive, petrochemical, mining equipment and other manufacturing industries widely used .
Technical Data:
| Model | HY-3080 | |
| Cutting Mode | Flame | Flame and Plasma |
| Driving Mode | Servo motor or stepper motor , Dual-side | |
| Cross beam Width(m) | 4m | |
| effective Working Width(m) | 1m less than track width | |
| Guide rail Length (m) | According to your cutting demands | |
| effective working length (m) | 2m less than guide rail length | |
| Flame Cutting thickness(mm) | 8-200 (specific type up to 300) | |
| Plasma Cutting thickness(mm) | According to the plasma generator, common 1-30mm | |
| Number of Cutting Torch | At customers’ requests | |
| Cutting Speed (mm/min) | 1100mm/min by flame 6000mm/min by plasma | |
| Running speed (mm/min) | Unload 12000mm/min | |
| NC Controller | F2300B | |
| Plasma Power | 100A ,120A , 160A,200A ,300A ect . China , USA brand | |
| Programming software | China or Australia professional nesting software | |
| Operation language | English or Chinese or Russian an so on. | |
