Cnc Controlled 3200*8000mm Plasma Cutting Machine
Product Details
| Name: | CNC Plasma Cutting Machine | Cutting Area: | 3200*8000mm |
|---|---|---|---|
| Plasma: | 130/170/260 | Voltage: | 220-440V |
| Cutting Thickness: | 1-30mm | ||
| Highlight |
3200x8000mm Plasma Cutting,CNCSG4000 Large Plate Machine,CNC Controlled Big Table |
||
Product Description

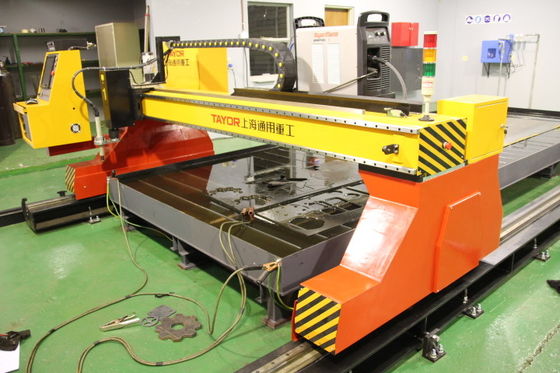

TAYOR CNCSG4000 CNC PLASMA CUTTING MACHINE 3200 x 8000 cutting area gantry type CNC controlled Plasma cutting Machine
Specification
| NO | Descriptions | Specificati |
| 1 | Track Width (mm) | 4000 |
| Rail length (mm) | 10000 | |
| Effective Cutting Area(mm) | 3200x8000 | |
| Drive | Y axis Panasonic AC servo motor *2set | |
| X axis Panasonic AC servo motor *1 set | ||
| Max traveling speed | 12000 mm/min | |
| 2 | Torch Moving Station |
Total Three 2 Sets of Moving Station Station 1: Oxy-fuel Torch Station 2: Plasma torch holder |
| 3 | Flame Torch |
Cutting Thickness 5-120 mm Cutting Speed: 50-800 m/min |
| 4 | Plasma Cutting Torch Number | straight torch |
| Plasma Torch Height Sensor | THC | |
| 5 | Anti-Collision Torch Holder | TAYOR*1 set |
| Plasma Cutting Speed | 50-4000 mm/min | |
| 6 | Plasma source Model | 300/CoreTM |
| 7 | Connect T | |
| 8 | Nest Software | Australia FASTCAM (professional Ver.) |
| 9 | PLC | Delta* 1 set Taiwan |
| Electric Components | Schneider | |
| Cables | CE approached cable | |
| 10 | Water tank Table | User self-made |
Accuracy
| Positioning Accuracy | ±0.5 mm/10000 mm |
| Repeatability | ≤±0.1 mm |
| Speed setting error | ≤±5% |
| THC accuracy | ≤±0.5 mm |
| Length of a side Error(mm) | ±0.5 mm |
| Base Point Return Error | ±0.4 mm |
| Intersection point Error | ±0.5 mm |
| Lineation forward-reverse Error | ±0.2 mm |
Working Conditions
|
Power Supply Temperature Humidity Surroundings |
Machine: 220 V±10%;50-60 Hz(customized) Plasma System: 3×380 V±10%;50-60 Hz(customized) -10 °C to 50 °C <90%, no condensation Ventilate, no big shake |
| Oxy-fuel cutting gas type/Quality |
Oxygen: 0.5-0.8MPa Purity: 99.5%; Flow: 1.0 m³/min Fuel Gas :Propane or Acetylene Pressure: 0.05-0.1MPa |
| Plasma Cutting Process gases |
Plasma gas Air, O2, N2 Shield gas Air, N2 Supply gas pressure 6.2 +/- 0.7 bar (90 +/- 10 psig) |
