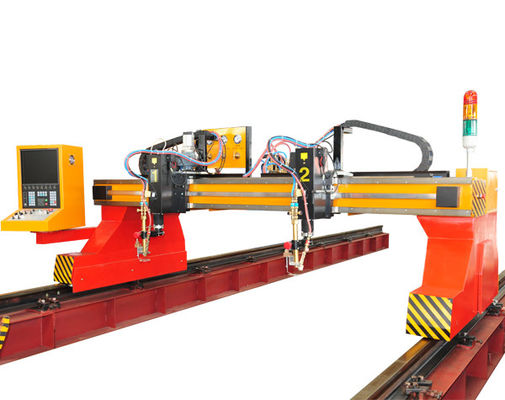

Heavy Duty Cnc Plasma Cutting Machine Cncsg4000 Gantry Type 300

Heavy Duty Cnc Plasma Cutting Machine Cncsg4000 Gantry Type 300
Heavy Duty Cnc Plasma Cutting Machine Cncsg4000 Gantry Type 300 Heavy Duty Cnc Plasma Cutting Machine Cncsg4000 Gantry Type 300

Large Image :  Heavy Duty Cnc Plasma Cutting Machine Cncsg4000 Gantry Type 300

Product Details:
Place of Origin: China
Brand Name: TAYOR
Certification: CCC
Model Number: CNCSG4000
Contact Now

Heavy Duty Cnc Plasma Cutting Machine Cncsg4000 Gantry Type 300

Description
Name: CNC Plasma Cutter Model: CNCSG4000
Cutting Area: 3X8m Cutting Thickness: 6-120mm
Plasma Cutting Thicness: 1-40mm Power Supply: 220-440V
Plasma Model: 300
Highlight:

Gantry CNCSG4000 Cutter

,

300 Plasma Power

,

6-120mm Thick Plate Cutting

Technical Specification

1 Brand: TAYOR

2 Model: CNCSG3000

3 Specification

NO Descriptions Specification
1 Track Width (mm) 3000
Rail length (mm) 8000
Effective Cutting Area(mm) 2000x6000
Drive Y axis Panasonic AC servo motor *2set
X axis Panasonic AC servo motor *1 set
Max traveling speed 12000 mm/min
2 Torch Moving Station

Total Three 2 Sets of Moving Station

Station 1: Oxy-fuel Torch

Station 2: Plasma torch holder
3 Flame Torch

Cutting Thickness 5-120 mm

Cutting Speed: 50-800 m/min
4 Plasma Cutting Torch Number straight torch
Plasma Torch Height Sensor THC
5 Anti-Collision Torch Holder TAYOR*1 set
Plasma Cutting Speed 50-4000 mm/min
6 Plasma source Model 300/CoreTM
7 Connect T
8 Nest Software Australia FASTCAM (professional Ver.)
9 PLC Delta* 1 set Taiwan, China
Electric Components Schneider
Cables CE approached cable
10 Water tank Table User self-made

4 Accuracy

Positioning Accuracy ±0.5 mm/10000 mm
Repeatability ≤±0.1 mm
Speed setting error ≤±5%
THC accuracy ≤±0.5 mm
Length of a side Error(mm) ±0.5 mm
Base Point Return Error ±0.4 mm
Intersection point Error ±0.5 mm
Lineation forward-reverse Error ±0.2 mm

5 Working Conditions

Power Supply

Temperature

Humidity

Surroundings

Machine: 220 V±10%;50-60 Hz(customized)

Plasma System: 3×380 V±10%;50-60 Hz(customized)

-10 °C to 50 °C

<90%, no condensation

Ventilate, no big shake
Oxy-fuel cutting gas type/Quality

Oxygen: 0.5-0.8MPa

Purity: 99.5%; Flow: 1.0 m³/min

Fuel Gas :Propane or Acetylene

Pressure: 0.05-0.1MPa
Plasma Cutting Process gases

Plasma gas Air, O2, N2

Shield gas Air, N2

Supply gas pressure 6.2 +/- 0.7 bar (90 +/- 10 psig)
